3-160

Engine Tools

Cylinder Head, Valves and Cam Followers

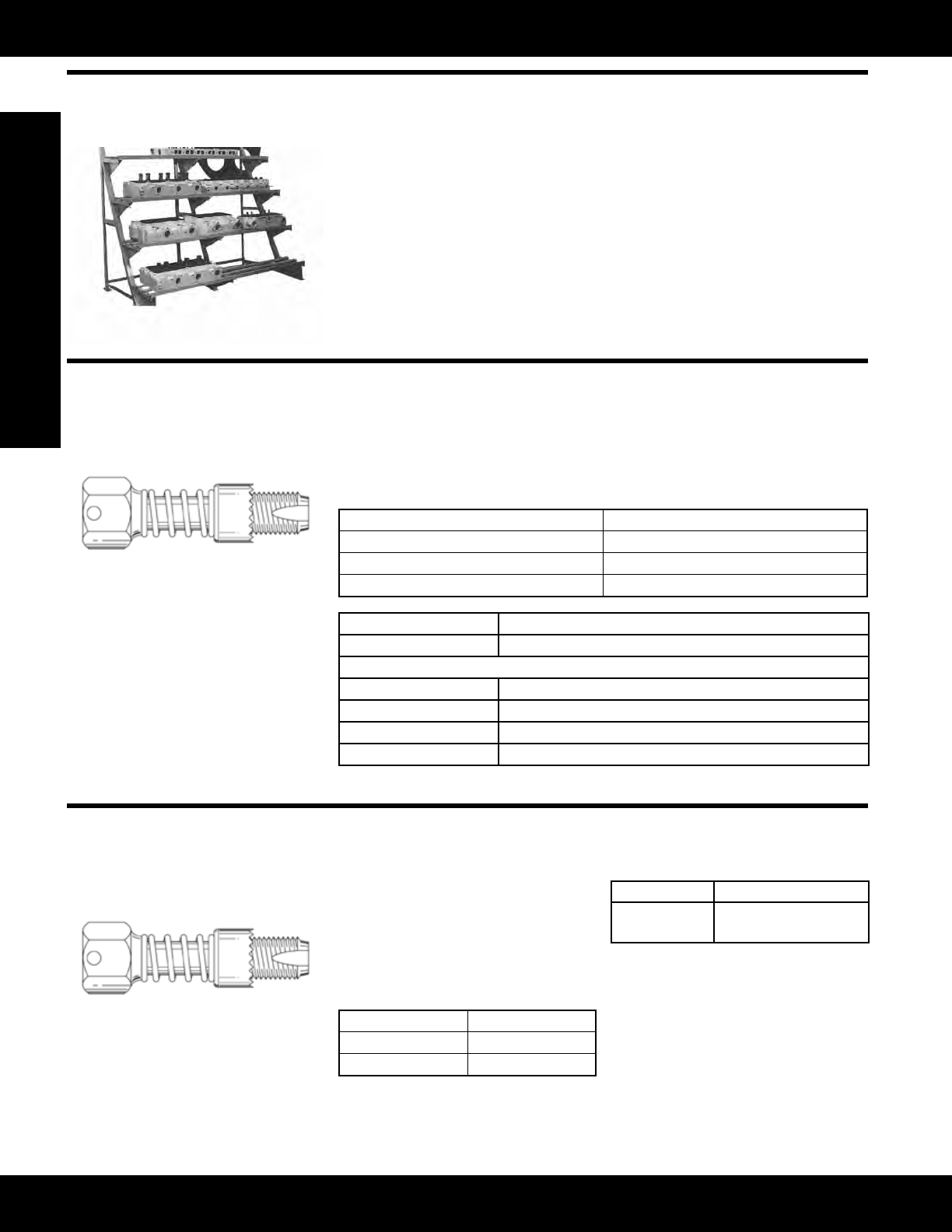

FT0869 Cylinder Head (or Hydraulic Cylinder) Storage Rack

Model: All Cat

Engines

Warranty: None

• Providesexcellentfacilityforstoringcylinderheads

• Withmodications,canalsobeusedforhydrauliccylinderstorage

9U-7511 Spark Plug Seat Cleaner

Model: 3500 and 3600 Spark Ignited Engines

Warranty: Six Months

• Used to clean gasket seat of rust resulting from a leaking gasket

• Used to clean threads in cylinder head

Reference

NEEG2585, Decal (instructions for inside lid of case)

External hex 22.225 mm ( 7/8 in)

Internalsquaredrive 3/8 in

Thread M18 x 1.5 mm

Overalllength 75 mm (3.0 in)

Part Number Description

9U-7511 Spark Plug Seat Cleaner

To build service kit, order:

9Y-6792 Gasket (standard), 25 each

105-7124 Gasket(oversize),25each

9U-7512 Foam

6V-6045 Case - Plastic, NEEG2061 Accessories Case Decal

Als order: NEEG2585 Decal (inside lid) and NEEG2586 Decal (outside case)

154-9521 Spark Plug Seat Cleaner

Model: G3400 Engines

Warranty: Six Months

• Used to simultaneously clean rust

and debris from gasket seat and

cylinder head threads

• Used with 3/4 inch, 6 point socket

(do not use 12 point socket)

• Spring-loadeddesignonlyremoves

dirt and debris, not metal

Thread size M14 x 1.25

External hex 19 mm (0.75 in)

Overalllength 75 mm (3.0 in)

Part Number Description

154-9521 Spark Plug Seat

Cleaner
