3-264

Engine Tools

Fuel System Repair and Adjust

9U-5219 Tool Group 3406 PEEC Engines (Continued)

Model: 3406B PEEC Engine

Warranty: Six Months

Item Part Number Description Size

1 8T-9198 Rack Indicator

Bracket Assem-

bly

2 5P-4814 Collet As - Clamp --

3 9U-5120 Spanner Wrench --

4 6V-4186 Pin - Fuel Pump

Timing

90 mm (3.54 in)

5 1U-5426 Zero Rack Com-

pressor Assembly

5 6D-3982 Nut --

5 7F-2359 Spring --

5 9S-8903 Point 2.4 mm (0.094 in)

6 9U-5103 Slotted Socket --

Item Part Number Description Size

7 5P-0326 Crowfoot Wrench 19.05 mm ( 3/4 in)

8 1U-5536 Crowfoot Wrench 33.33 mm (1 5/16 in)

9 1U-5425 Timing Gauge

Assembly

-- 9U-5219 Tool Group 3406

PEEC Engines

Not shown

1 6V-3072 Case - Plastic,

NEEG2574 Group

Decal on lid (9U-

7402 Group)

-- 9U-5225 Foam Block --

12.7mm(0.5in)diameteratfacewithabevelto9.7mm(0.38in)diameter

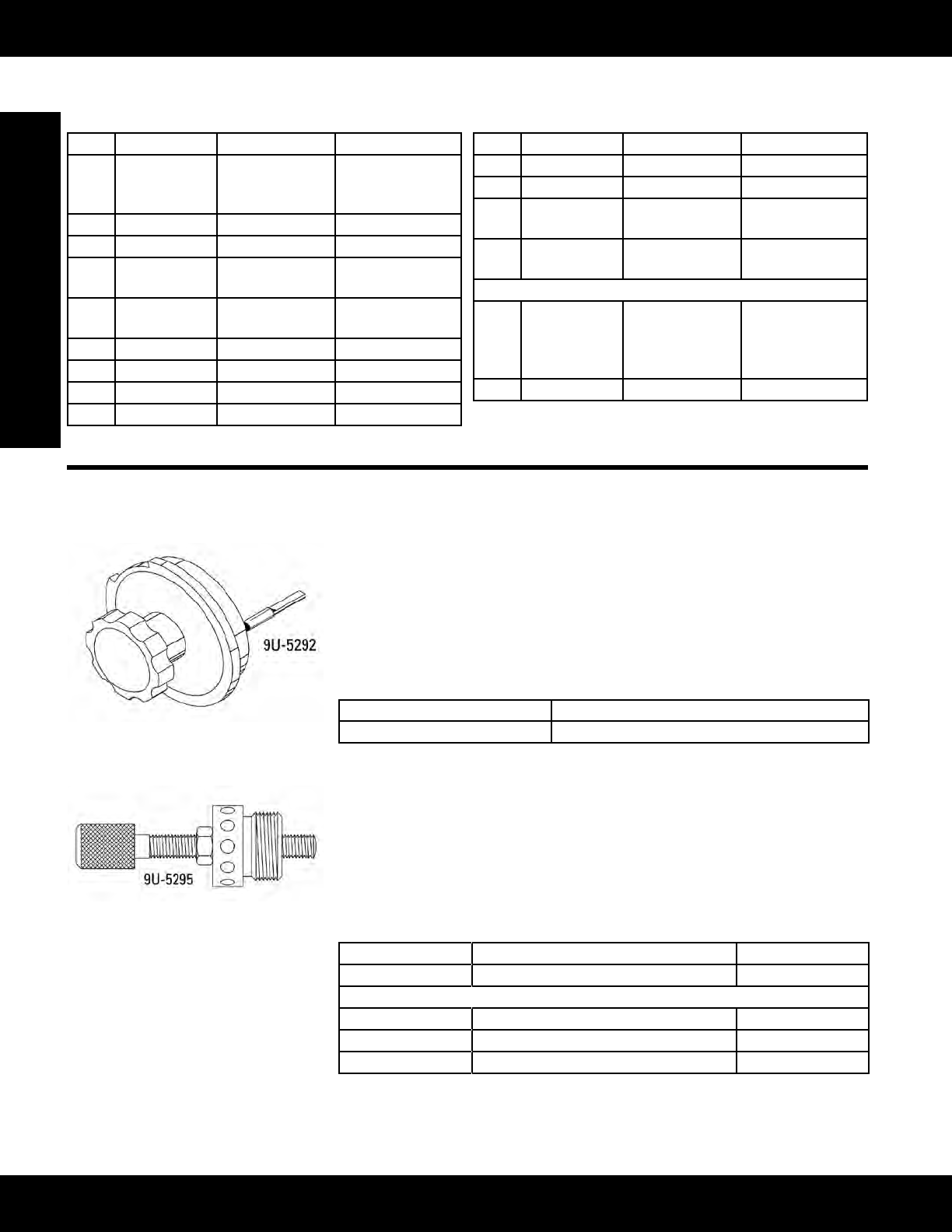

9U-5292 Rack Preload Assembly (3400 PEEC)

Model:3406,3408,and3412SeriesNSFS(PEEC)EngineswithFuelInjectionPumpandGovernorGroup

Warranty: Six Months

• Used to set the PEEC injection pump rack position without an electronic control

system

9U-5292 Rack Preload Assembly

• Used to hold pressure against (preload) rack in plus direction

• Fits in place of pumps electronic control unit (BTM)

• Flutedknobprovideseasyadjustment

• Outside diameter: 82.6 mm (3.25 in)

• Knob: 1V-5044

Part Number Description

9U-5292 Rack Pre-load Assembly

9U-5295 Rack Position Group (3400 PEEC)

9U-5295 Rack Positioning Group

• Usedtolimittravelofrackandmakeprecisionrackadjustments

• Fits in place of the rack shut-off solenoid

• Knurledsurfacesprovidebettergripwhileadjustingrackposition

• Partsareservicedindividually

References

NEHS0625, Tool Operating Manual

NEHS0639, Tool Operating Manual

Part Number Description Size

9U-5295 Rack Positioning Assembly --

Rack Positioning Group Consists of:

9U-5294 Threaded Bushing --

9U-5293 Rack Adjusting Screw 1 3/16 - 12

3S-2713 Full Hardened Nut --
