Caterpillar Engine Tools Cat Overhaul 3512 Page 108

Operation and Maintenance Manual
2590324
2590343
2828458

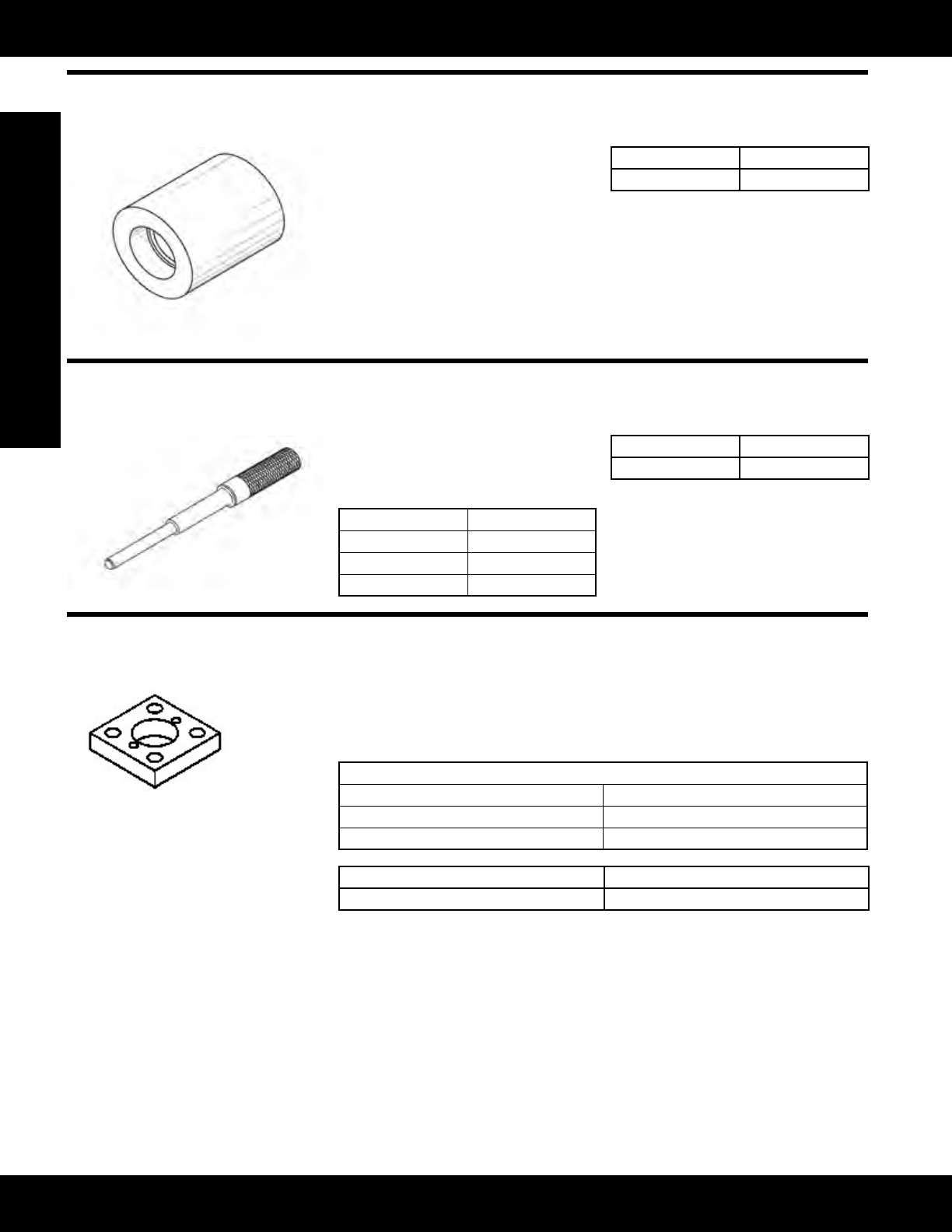

3-108
Engine Tools
Cylinder Head, Valves and Cam Followers
342-6109 Stop Collar
Model: C9 Engines
Warranty: Six Months
• Usedtoinstall259-5829ValveGuide
to proper height
• Usedwith4C-6366GuideDriver
• Preventsdamagetovalveguide
during installation
• Black oxide coating for corrosion
resistance
Part Number Description
342-6109 Stop Collar
157-3722 Valve Guide Driver
Model: 3054, 3056 Engines (serial no. 5YS, 7MS, 2PW, and 3GW)
Warranty: Six Months
• Usedtoremoveandinstallvalve
guides
• Used with 9U-6220 Stop Collar
• Heat-treated for added durability
Small diameter 8.40 mm (0.331 in)
Larger diameter 12.75 mm (0.502 in)
Overalldiameter 19.05 mm (0.750 in)
Overalllength 233.5 mm (9.19 in)
Part Number Description
157-3722 GuideDriver
364-3081 Alignment Guide
Model Usage: G3500 Engines
Warranty: Six Months
• Providesvalveguidealignmentduringinstallationprocedure
• Providesfortheproperinstallationdepthofthevalveguides
Reference:
SEBF9137
Specications
Dimensions 120 x 120 x 26 mm (4.72 x 4.72 x 1.02 in)
Weight 2.07 kg (4.56 lbs)
Material Steel
Part Number Description
364-3081 Alignment Guide
