Caterpillar Engine Tools Cat Overhaul 3512 Page 418

Operation and Maintenance Manual
2670033
2601500
3-418
Engine Tools
3600 Engine Tools
Optional Tooling

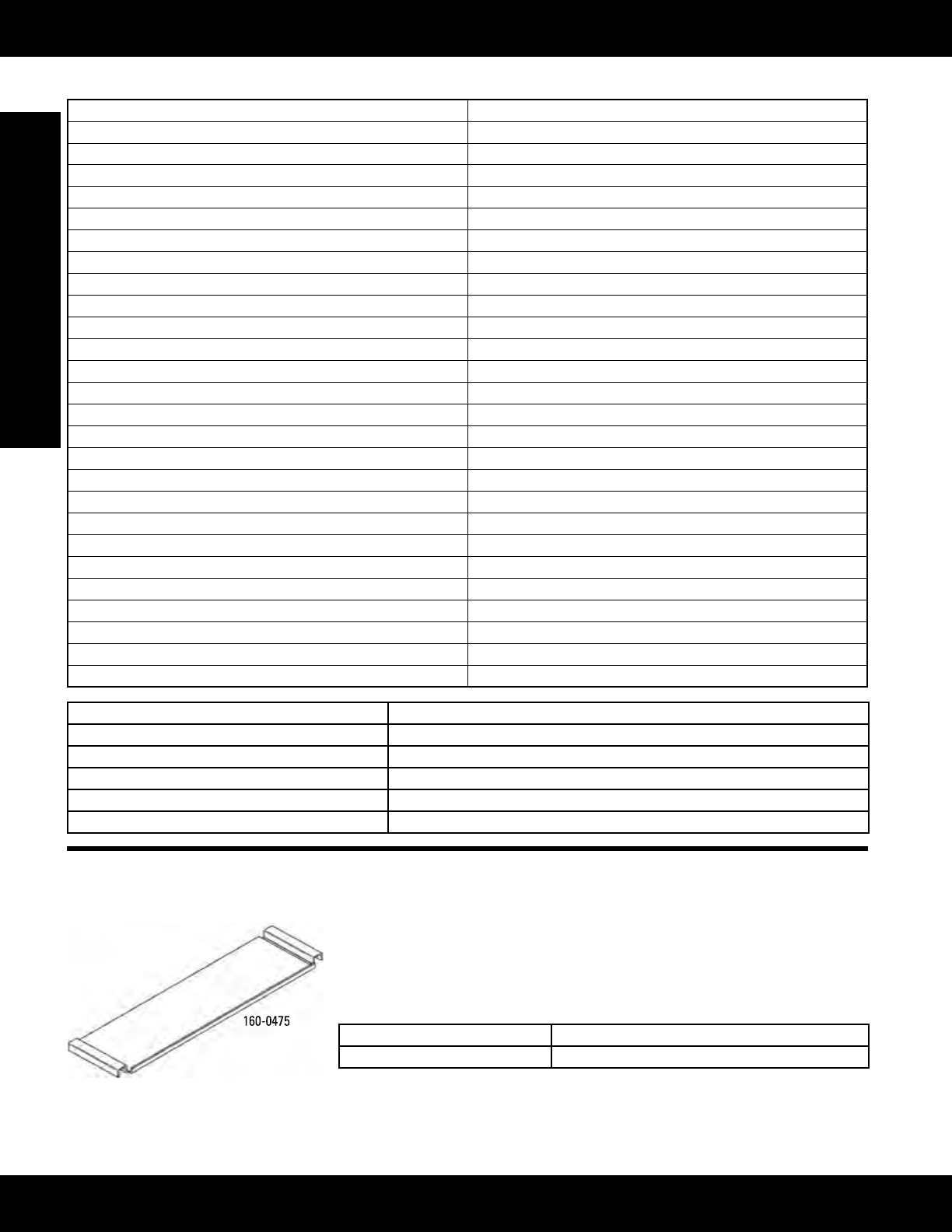

191-5322 Cylinder (Cylinder Head Studs)
Maximum tensioning force 1100 kN (247,289 lb)
Maximum operating pressure 150 mPa (21,755 psi)
Effectivepistonsurface 73.2 cm² (11.35 in 2)
Stroke 10.0 mm (0.39 in)
Weight 9.5 kg (21 lb)
191-5323 Cylinder (Main Bearing Cap Studs)
Maximum tensioning force 2015 kN (452,990 lb)
Maximum operating pressure 150 mPa (21,755 psi)
Effectivepistonsurface 134.3 cm² (20.8 in 2)
Stroke 10.0 mm (0.39 in)
Weight 19.5 kg (43 lb)
227-6724 and 227-8834 Electric Hydraulic Pump
Oil quantity 3.8 L (0.84 gal)
Maximum operating pressure 150 mPa (21,755 psi)
Voltage, frequency 120/240 V, 60/50 Hz
Weight 33 kg (73 lb)
191-5347 Pneumatic Hydraulic Pump
Oil quantity 4.0 L (0.88 gal)
Maximum operating pressure 150 mPa (21,750 psi)
Air pressure 3.5 - 8 bar (51 - 116 psi)
Air consumption 104 - 206 gpm
Weight 22 kg (48.5 lb)
OilSpecications
Oilviscosityat50°C(122°F) 1.75 E-9.1 Centistokes
Oil temperature (maximum) 60° C (140° F)
Oilapproval HLP10 nach/acc.to VDMA 24318 bzw./resp. DIN51525
Part Number Description
227-8834 Hydraulic Pump, Electric, 240 V
191-5347 Hydraulic Pump, Pneumatic
191-5322 Cylinder Head Cylinder Group
191-5323 Main Bearing Cylinder Group
227-6724 Hydraulic Pump, Electric, 120 V
160-0475 Support Tray
Model: 3618 Engines
Warranty: Six Months
• Used to support 153-8488 Tensioning Cylinder being manually placed onto 156-
7168 Bearing Cap Handling Group
• Traysupportraileasilytsontoengineoilpanbafes
Reference
RENR1333,ServiceManual,DisassemblyandAssemblyof3618Engines
Part Number Description
160-0475 Support Tray
