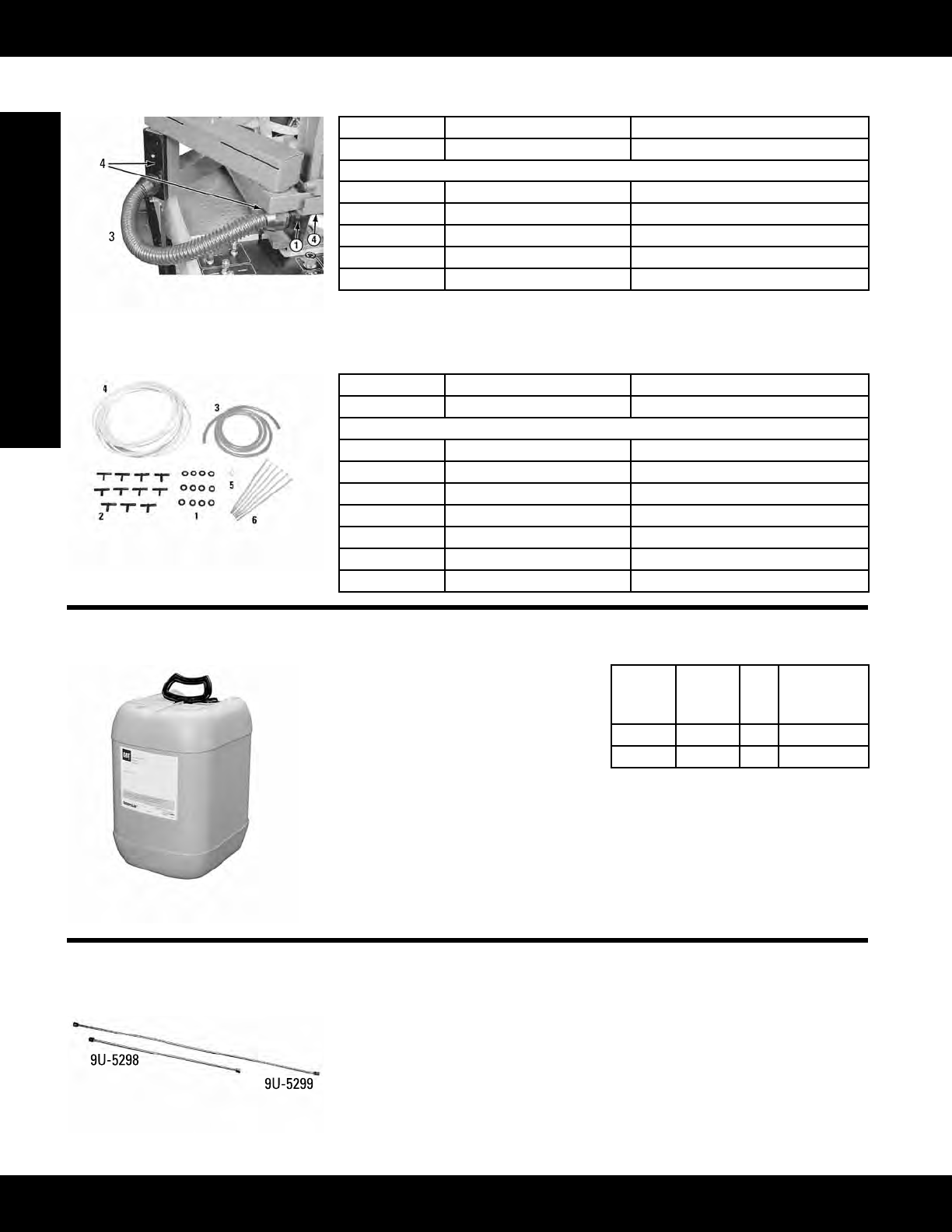

3-210

Engine Tools

Fuel System Test Tools

9U-7697 Discharge Conduit Group

Warranty: Six Months

Item Part Number Description

-- 9U-7697 Discharge Conduit Group

Discharge Conduit Group Consists of:

1 9U-7457 Conduit Bracket

2 9U-7458 Conduit Fitting

3 9U-7459 Flexible Conduit

4 9U-7701 Arm Lining Tube

Not shown 8D-7712 Head Screw

9U-7694 Nozzle Lines Group

Warranty: Six Months

Item Part Number Description

-- 9U-7694 Nozzle Lines Group

Nozzle Lines Group Consists of:

1 5R-7136 Sealing Washer

2 9U-7698 Tee Fitting

3 9U-7699 Flexible Tubing

4 9U-7707 Flexible Tubing

5 9U-7706 Hose Clamp

6 068-9941 Wire Tie

Not shown 1S-9593 Cable Strap

Calibration Fluid

Warranty: None

• Fuel injection test benches

• Pop Testers

Part

Number

EAME

Part

Number Qty. Size

6V-6068 185-4665 1 18.9 L (5 gal)

6V-6067 N/A 1 208 L (55 gal)

Fuel Injection Tube Assemblies

Model: Cat

Fuel Injection Test Bench (FITB) and Fuel Injection Equipment Test Stand (FIETS)

Warranty: Six Months

• Bend-to-tlinesthatreduceneedforspecialfuelinjectionlines

• DataavailableinTMIuses9U-6705MasterNozzlesand9U-5298and9U-5299

lines (see SEHS0594)

Referenes

NEHS0594,ToolOperatingManual,UsingTMItoFindPumpSpecications

LEBQ0724, Technical Marketing Information (TMI)

(Continued)
