Caterpillar Engine Tools Cat Overhaul 3512 Page 97

Operation and Maintenance Manual
2589901
2589946
3-97
Engine Tools
Cylinder Block and Liners
5P-8709 Piston Cooling Jet Alignment Tool Group (Continued)
Model: Older Cat
®
Engines including D353, D377, D398, D899, G379, and G399 only
Warranty: Six Months
Item Part Number Description Quantity Where Used
1 5P-8596 Screen 1 with all benches (FITB, FIETS, and
AVM)
6 5P-8612 Cooling Jet Adjustment Wrench 1 --
7 5P-8613 Cooling Jet Adjustment Wrench 1 --
-- 5P-8709 Piston Cooling Jet Alignment Tool
Group
-- --
2 5P-8597 Spray Shield 1 With FITB, FIETS, and AVM
3 5P-8598 Target 1 With FITB, FIETS, and AVM
4 5P-8599 Fixture Assembly 1 With FITB, FIETS, and AVM
5 5P-8600 Oil Return Pan 1 With FITB bench only (Kent Moore)
Required Hardware (not included in group). The following list of hardware is required, but not included as part of the 5P-8709
Piston Cooling Jet Alignment Tool Group. This tooling can be purchased as needed.
-- 6V-9132 Fixture Assembly 1 target/xtureassemblytobenchrails
-- 6V-9134 Screw Assembly 1 xtureassemblytobenchrails(short)
-- 6V-9138 Clamp Assembly 1 xtureassemblytorailsystem
-- 0L-1138 Bolt 4 Target to 6V-9132
-- 0S-1588 Bolt 2 5P-8599 to 6V-9132
-- 032-1267 Connector 1 Oil supply #6 (37 degree) to 1/4-18
NPTF (external)
-- 032-1268 Elbow, 90 degree 1 Oil supply #6 (37 degree) to 1/4-18
NPTF (external)
Service/Repair Parts for 5P-8599 Fixture Assembly
-- 3B-7614 Bolt 2 --
-- 1L-8793 Bolt 1 --
-- 4D-3120 Bolt 1 --
-- 7S-6701 Bolt 1 --
-- 8H-9208 Dowel 8 --

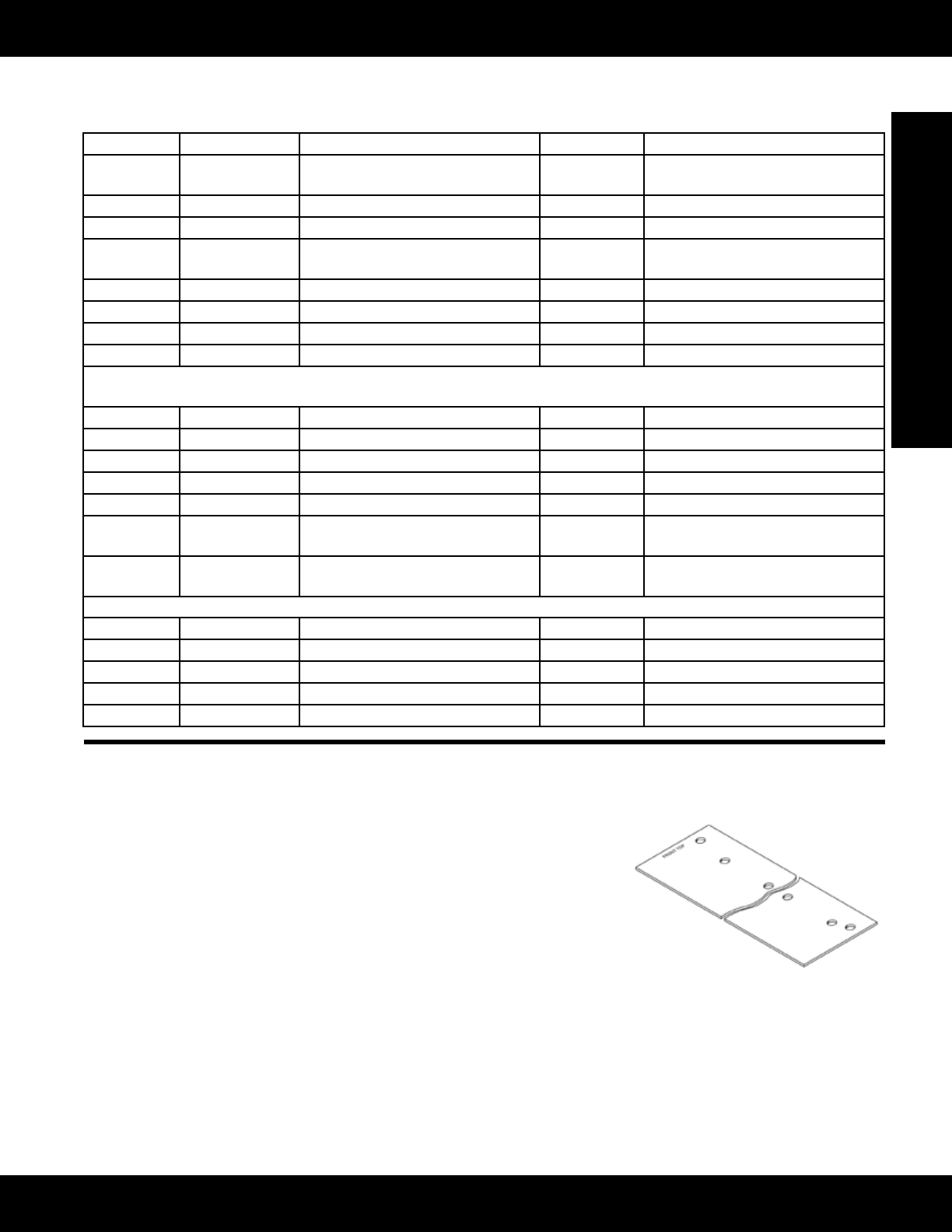

FT2736 Alignment Gauge
Model: 3034 Turbocharged Engines
Warranty: None
• Used to align piston cooling jets
• Helps align all four jets in a single operation
• Canalsobeusedtoalignearlierversionsofpistoncoolingjets
• Material: Perspex
Application Procedure
1. Put alignment gauge on cylinder block ring dowels
2. Carefully insert steel rods into each jet
For current piston cooling jets use 1.30 mm (0.051 in) diameter rods
Forpreviouspistoncoolingjetsuse1.20mm(0.047in)diameterrods
Ifsmalldiameterrodsarenotavailable,usethelargediameterrodandmachine
it to a 1.20 mm (0.047 in) diameter, 8.0 mm (0.13 in) long
Rods inserted into jets must protrude through holes in gauge and extend just
abovetopdeckofblock
When rods do not protrude through holes in gauge, carefully bend each af-
fected jet until all rods protrude through gauge
3. Removegaugeandrods
Reference
(Continued)
SENR5012-02,ServiceManual,SystemOperationsTestandAdjustment
