Caterpillar Engine Tools Cat Overhaul 3512 Page 256

Operation and Maintenance Manual
2595730
2595759
3-256
Engine Tools
Fuel System Repair and Adjust

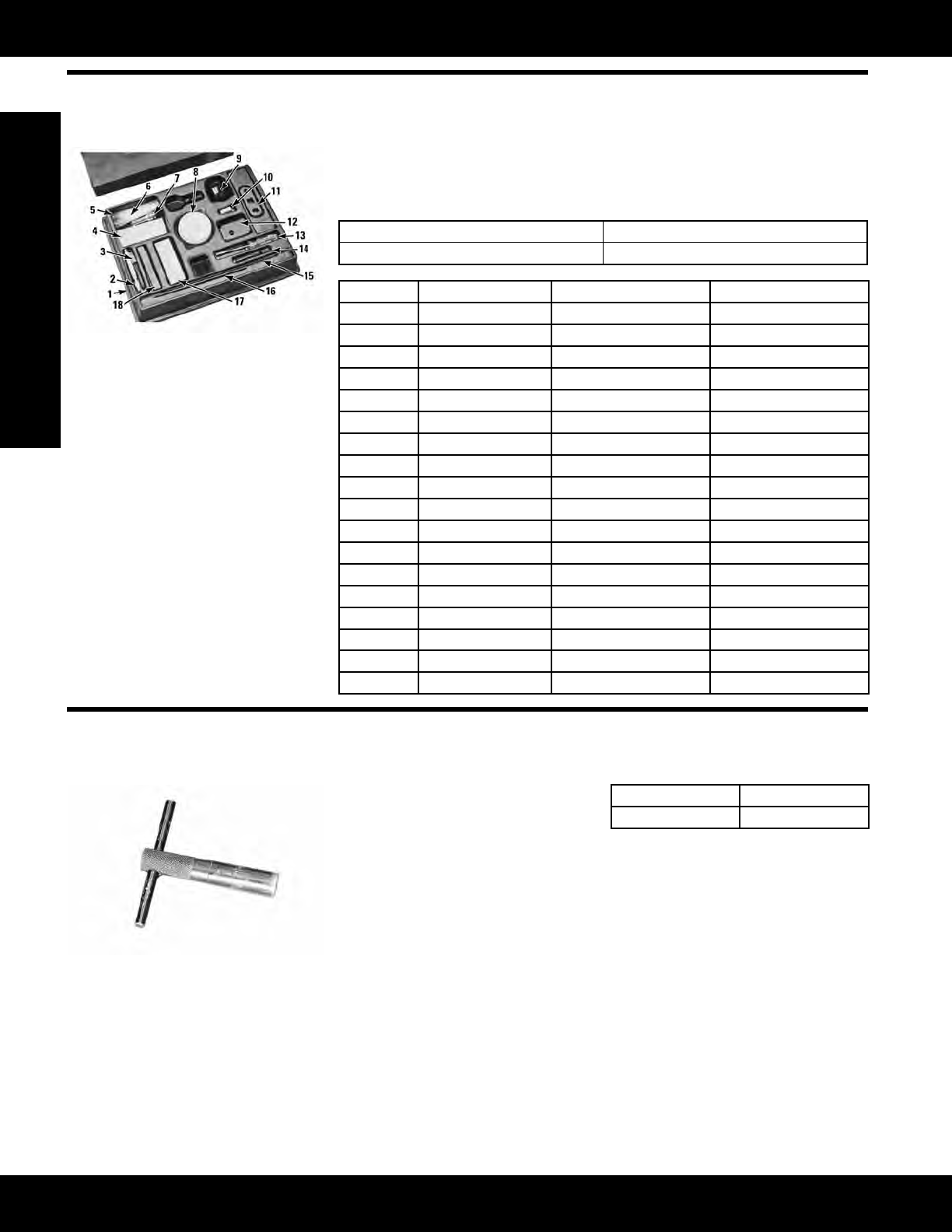

8S-2245 Cleaning Tool Group
Model: 1100, 3100, 3208
Warranty: Six Months
• Usedtoproperlyservicepencil-typeinjectionnozzlesusedin1100and3100
Series and 3208 Engines
Reference
SEHS7292
Item Description
4 Pad
Item Part Number Description Size
1 8S-2262 Case Assembly --
2 8S-2256 Vise Assembly --
3 5P-0958 Retractor Assembly --
5 8S-2246 Wire Assembly 0.20 mm (0.008 in)
6 8S-2247 Wire Assembly 0.28 mm (0.011 in)
7 5P-4813 Socket --
8 8S-2259 Lapping Compound --
9 8S-2257 Loupe --
10 6V-4979 Carbon Stop Seal Tool --
11 2P-5487 Adapter --
12 8S-2250 Holding Tool --
13 6V-9124 Screwdriver --
14 8S-2254 Retractor Assembly --
15 8S-2255 Scraper --
16 8S-2251 Drill --
17 8S-2258 Brass Wire Brush --
18 8S-2260 Honing Stone --
-- 8S-2245 Cleaning Tool Group --
5P-6229 Extractor
Model: 3400 Series Direct Injection Engine
Warranty: Six Months
• Usedtoremovefuelnozzleadapter
body on 3400 Series Direct Injection
Engines and most other engines
with precombustion chambers
Part Number Description
5P-6229 Extractor
