Caterpillar Engine Tools Cat Overhaul 3512 Page 300

Operation and Maintenance Manual

Page of 420

/ 420

2597575

3-300

Engine Tools

Fuel System Repair and Adjust

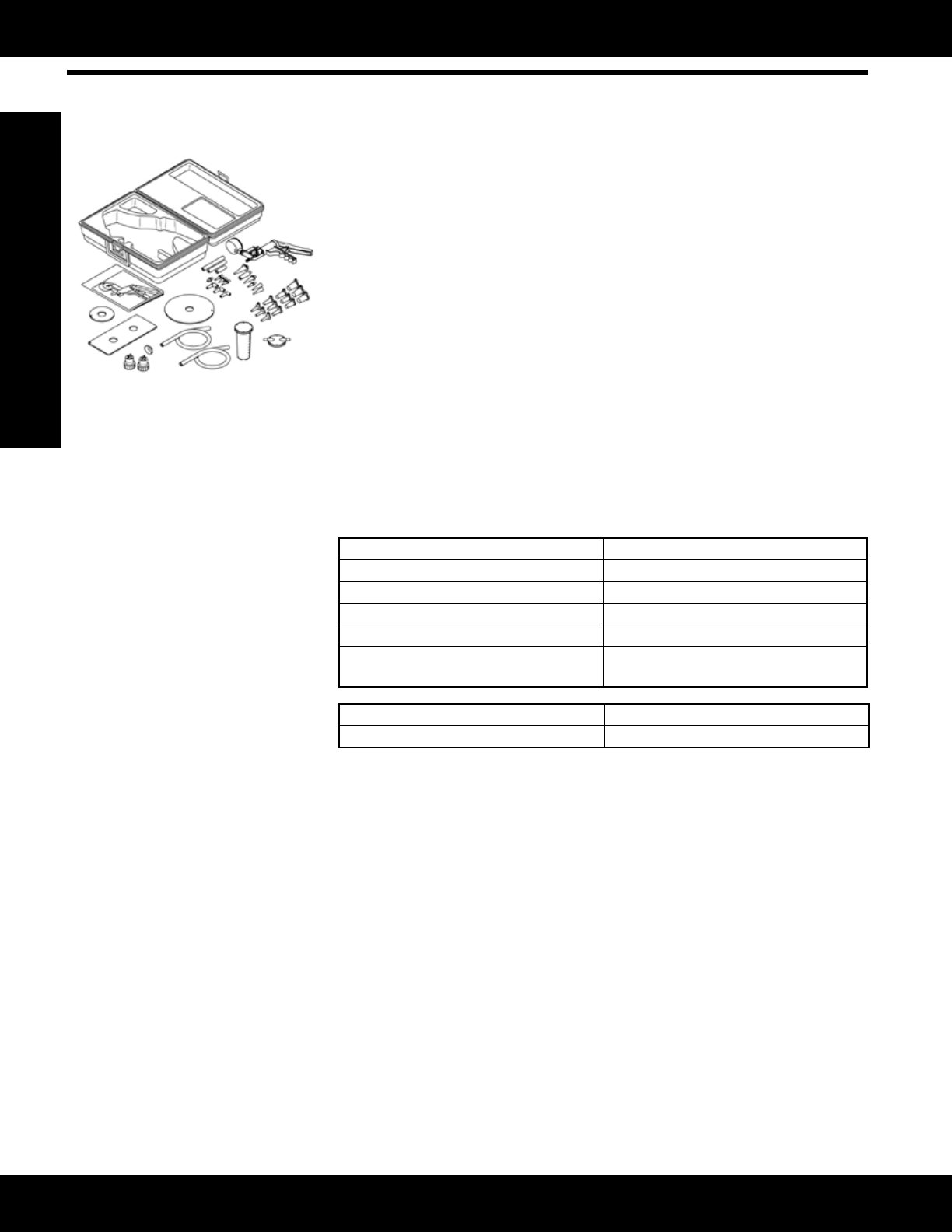

195-0761 Pressure/Vacuum Pump Group

Model: 3000 Series Engines With Stanadyne Fuel Injection Pumps

Warranty: Manufacturer’s 5 year (see details)

• Used to check and adjust aneroid capsule

• Includes other accessories for general diagnostic, testing, and adjusting proce-

duresrequiringvacuumorpressure

• Compound pressure gauge

• Hand-operated, no external power required

• Includes compact carrying case

Warranty Information

The pump is warranted to be free of all defects in material and workmanship for

FIVE FULL YEARS from the date of original purchase. This warranty does not apply

to any defects caused by negligence of the user, use of the product in any manner

otherthaninaccordancewiththeinstructionsprovidedwiththeproduct,ordamage

caused by accidents. It also does not apply to gauges, which are warranted for a

period of 90 days from date of purchase.

Repair Information

Prism Enterprises, Inc.

6952 Fairgrounds Parkway

San Antonio, TX 78238

Phone: (800) MITYVAC (648-9822)

(210) 520-8051

Fax: (210) 520-8039

Website:www.mityvac.com

Maximumvacuumatsealevel -85 kPa (23 - 25 in Hg)

Singlestrokevolume 16.4 cu cm (1.0 cu in)

Maximum pressure unassisted 100 kPa (15 psi)

Maximum pressure assisted 175 kPa (25 psi)

Compound pressure gauge range 100 kPa (-30 mm Hg) - 200 kPa (30 psi)

Vacuum gauge accuracy -85 kPa (15 - 30

in Hg)

3% of full range

Part Number Description

195-0761 Pressure/Vacuum Pump Group
