Caterpillar Engine Tools Cat Overhaul 3512 Page 213

Operation and Maintenance Manual
2594125
3-213
Engine Tools
Fuel System Test Tools

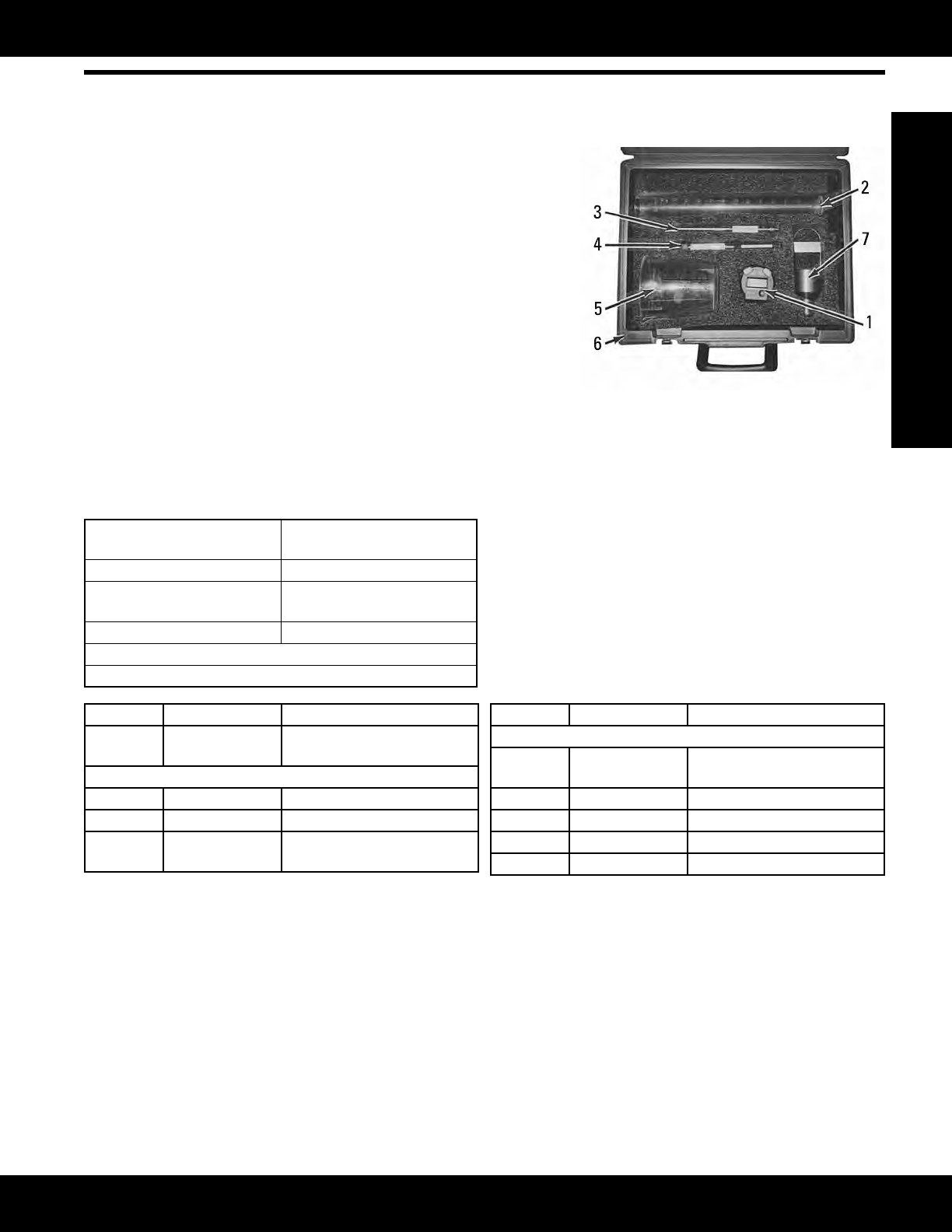

9U-7840 Calibration Fluid and Diesel Fuel Test Kit
Model: FIETS, FITB, AVM, All Cat
®
Engines
Warranty: Six Months
• UsedtomeasureviscosityandspecicgravityofSAE
J967D(ISO4113)calibrationuid
• Used with fuel injection equipment test stand (FIETS) and
fuel injection test bench (FITB) — helps to maintain ac-
curacy of test equipment
• Performstesttomakesurecalibrationuidintestequip-
mentiswithinspecications
• Savesmoney—uidisnotchangedprematurely
• Beakers made from durable Nalgene — will not shatter
• Viscositycupisindividuallycalibratedforeachtestgroup
—cupandcalibrationchartmarkedwithindividualserial
number (matched set)
• Used to correct measured horsepower for density of fuel
when testing engines on dynamometers
References
NEHS0607, Tool Operating Manual
NEHS0631, Tool Operating Manual, General Maintenance for
FIETS
NEHS0640, Tool Operation Manual, Installing Fuel Suction Port
on the FIETS
Case (W x L x D) 33 x 40.5 x 15.3 cm (13.0 x 16.0
x 6.0 in)
Weight 2 kg (5.0 lb)
Viscosity cup indivduallyserialized(includes
calibration sheets)
Beaker material Nalgene
Also Included (not shown): NEEG2600 Decal
Item Part Number Description
-- 9U-7840 Calibration Fluid and Diesel
Fuel Test Kit
Service/Repair Parts
1 9U-7839 Stopwatch
2 1P-7438 Beaker
3 5P-2712 Thermo-Hydrometer, Assem-
blyAPIGravityScale
Item Part Number Description
Service/Repair Parts (Continued)
4 1P-7408 Thermo-Hydrometer,Gravity
Scale
5 9U-7842 Beaker
6 4C-3975 Plastic Storage Case
7 9U-7841 Viscosity Cup
Not shown 9U-7917 Button Battery (one required)
