Caterpillar Engine Tools Cat Overhaul 3512 Page 293

Operation and Maintenance Manual
2597267
2597313
2597335

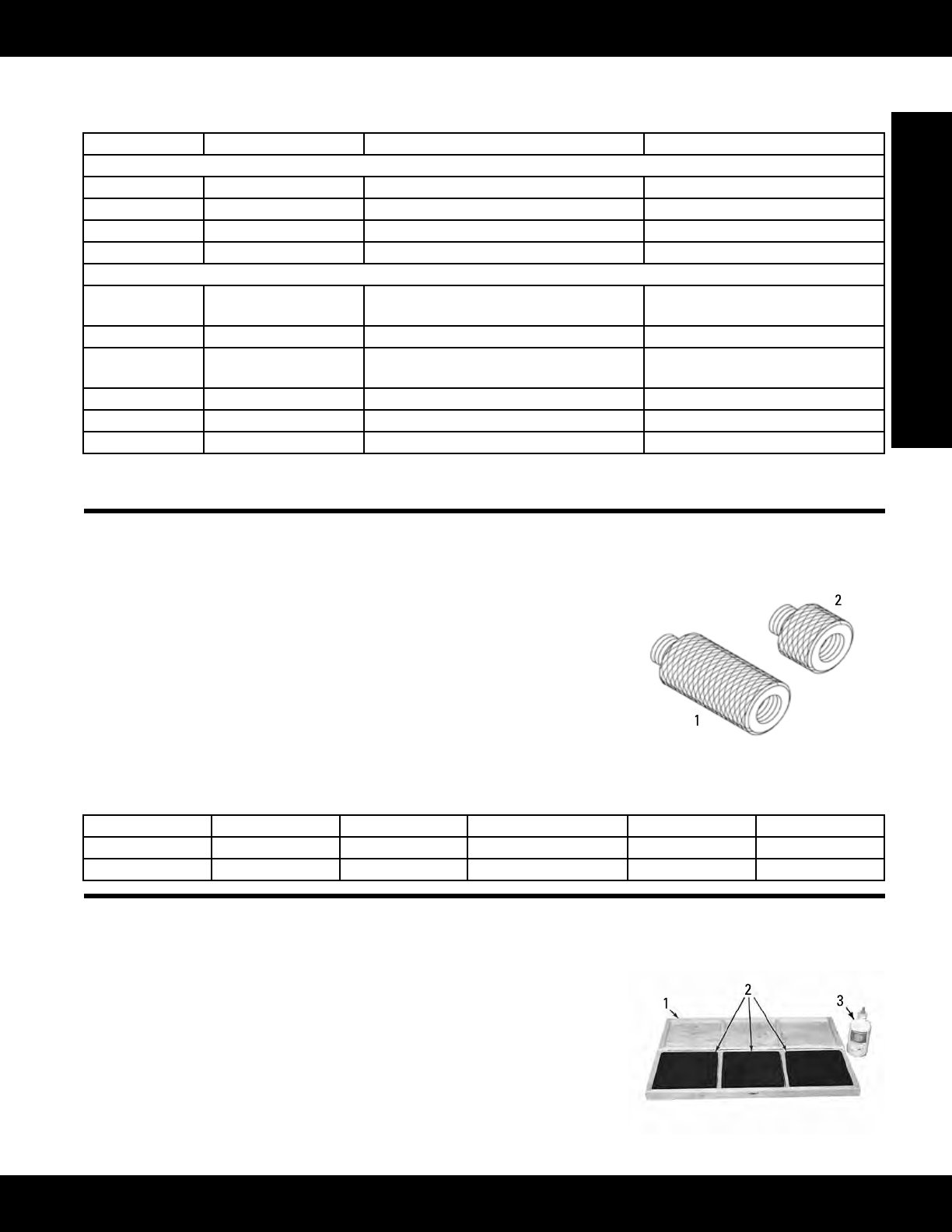

3-293
Engine Tools
Fuel System Repair and Adjust
9U-5132 Timing Tool Group (Continued)
Model: 3500 EUI and MUI Engines
Warranty: Six Months
Item Part Number Description Size
Optional Tooling
12 369-2607 Digital Indicator --
15 5P-4814 Collet As - Clamp --
16 136-4588 Collet Extension --
18 136-4587 Collet Extension --
Not shown
-- 5P-4160 Point - Indicator Contact, 19.05 mm (0.75 in)
long
19.0 mm (0.75 in) (for digital indicator)
-- 9S-9082 TurningTool,1/2indrive 1/2indrive
-- 6V-3072 Case - Plastic, NEEG2574 Group Decal on lid
(9U-7402 Group)
--
-- 9U-5220 Extension Rod Assembly --
-- 9U-5136 Foam Insert --
-- 122-0451 Extension Rod Assembly --
1
Part of 9U -5233 Magnetic Fixture Group
2
Additional tooling required, but not part of 9U-5132
Collet Extensions
Model: 3500 and 3500B Engines
Warranty: Six Months
• Used to hold a dial indicator in 9U-5233 Fixture Group with 5P-4814 Collet Clamp
and two (2) 6V-7918 Collet Wrenches
• Releasedtoprovideanalternativetothenylonscrew-typeindicatormount
• Use 136-4587 Extension-Collet with 5P-4814 Collet-Clamp, instead of 9U-6273
RodSleeveExtension,tocheckandadjustfueltimingon3500MUIEngines
• Use 136-4588 Extension-Collet with 5P-4814 Collet-Clamp, instead of 122-0449
RodSleeveExtension,tocheckandadjustfueltimingon3500BEUIEngines
Part Number Overall Length Diameter Extension Length External Thread Internal Thread
136-4587 56.5 mm (2.2 in) 19 mm (0.7 in) 47 mm (1.85 in) 7/16 - 20 3/8 - 16
136-4588 23 mm (0.9 in) 19 mm (0.7 in) 13.5 mm (0.53 in) 7/16 - 20 3/8 - 16
6V-6999 Lapping Plates
Model: Cat
®
Engines
Warranty: Six Months
• 3 lapping plates assembled in discontinued 6V-7011 Lapping Plate Case make a
complete lapping set
• Lapping set permits distribution of lapping work between the 3 plates
• Makesitpossibletolapplatesagainsteachothertomakethemataftera
period of use
• All parts need to be ordered separately
(Continued)
