Caterpillar Engine Tools Cat Overhaul 3512 Page 217

Operation and Maintenance Manual
2594225
3-217
Engine Tools
Fuel System Test Tools

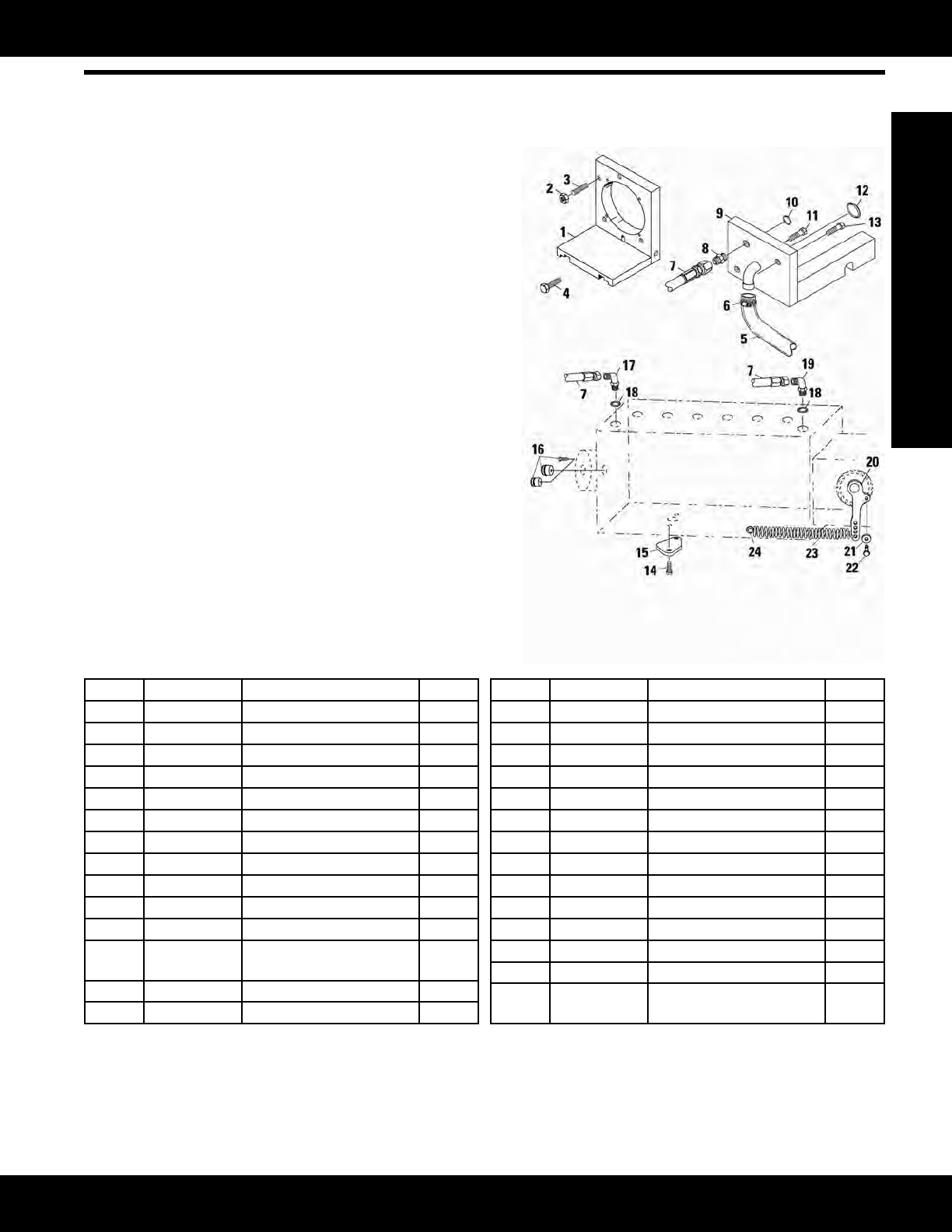

135-2916 Mounting Drive Group (Not Serviced)
Model: 3406B, 3406C, and 3406 PEEC Engines
Warranty: Six Months
• Replaces discontinued 6V-4990 Adapter Group
• Used to mount and test fuel injection pumps
• Used with fuel injection equipment test stands (FITB,
FIETS, and AVM)
• Tooling is required for off-engine testing of injection
pumps
• Partsareservicedseparatelytoreducedealercost(no
needtopurchasetoolsalreadyininventory)
References
NEHS0594,TMISpecication
NEHS0624, Tool Operating Manual
NEHS0639, Tool Operating Manual
Item Part Number Description Qty.
1 6V-6101 Plate Assembly
1
1
2 6V-8801 Nut 5
3 1J-8668 Stud 5
4 0L-1143 Bolt 3
5 9U-7709 Drain Tube 1
6 5D-1026 Hose Clamp 1
7 7G-7105 Hose Assembly 3
8 5P-6661 Fitting 1
9 6V-6102 Support Assembly 1
10 1S-0004 O-ring Seal 1
11 0S-1591 Bolt 1
12 3J-1907 O-ring Seal for 5P-9617
Adapter
2
12 8S-5953 O-ring Seal 1
13 3B-1915 Bolt 1
Item Part Number Description Qty.
14
2
2A-0762 Bolt 2
15 9U-5297 Cover 2
16 8T-2849 Plug 1
16 4W-4616 Quad Ring Seal 1
16 4W-0435 Quad Ring Seal 1
16 8T-2848 Plug 1
16 7H-2069 Bolt 1
17 030-7947 Elbow Fitting 1
19 1W-3151 OriceFitting 1
20 6N-3646 Lever 1
21 5P-0537 Hard Washer 1
23 9M-3858 Spring 1
24 6V-8918 Bolt 1
-- 135-2916 MountingDriveGroup(not
serviced)
--
1
Some later 6V-6101 Plate Assemblies do not include shield.
2
2A-0762 Bolt, is item 14 (Qty. 2) and item 22 (Qty. 1)
