Caterpillar Engine Tools Cat Overhaul 3512 Page 139

Operation and Maintenance Manual
2591734
3-139
Engine Tools
Cylinder Head, Valves and Cam Followers
Valve Lash Setting Tools
Essential Tool
Model: 3500A and 3500B Diesel, 3500 Magneto and EIS Gas Engines
Warranty: Six Months
• Usedtoaccuratelysetenginevalvelashwithfactorysettingmethods
• Installation of tools is quick and easy with adjustment of indicator position required on initial set-up only
• Removaloffuellinesnotnecessarytomeasurevalvelash
• Adding147-2058ExtensiontoindicatorallowsvalvelashtobemeasuredonMagnetoGasenginewithoutremovingspark
plug extension
• Socket and torque wrench used to torque rocker arm nuts are preset at factory to 70 N·m (52 ft-lb) — weight of torque
wrenchalonesetsvalueofvalvelash
• Valvebridgeadjustmentcanbemadewithoutremovingtherockerarm.Usethe147-5536ContactPoint,147-2058Extension,
and 148-7211 Socket to make the adjustment.
• Aslideruletypetorquecomputer,FormSEHS7150,isavailabletodeterminetorquewrenchdialreadingfordifferentexten-
sions
• Thistoolwillnottonsomeearly3500Engineswitholdfuelmanifolds.
• Dialindicatorisnotincludedingroup—choiceof147-2056(inch)or147-5537(mm)isavailable
Reference
REHS0128, Special Instruction

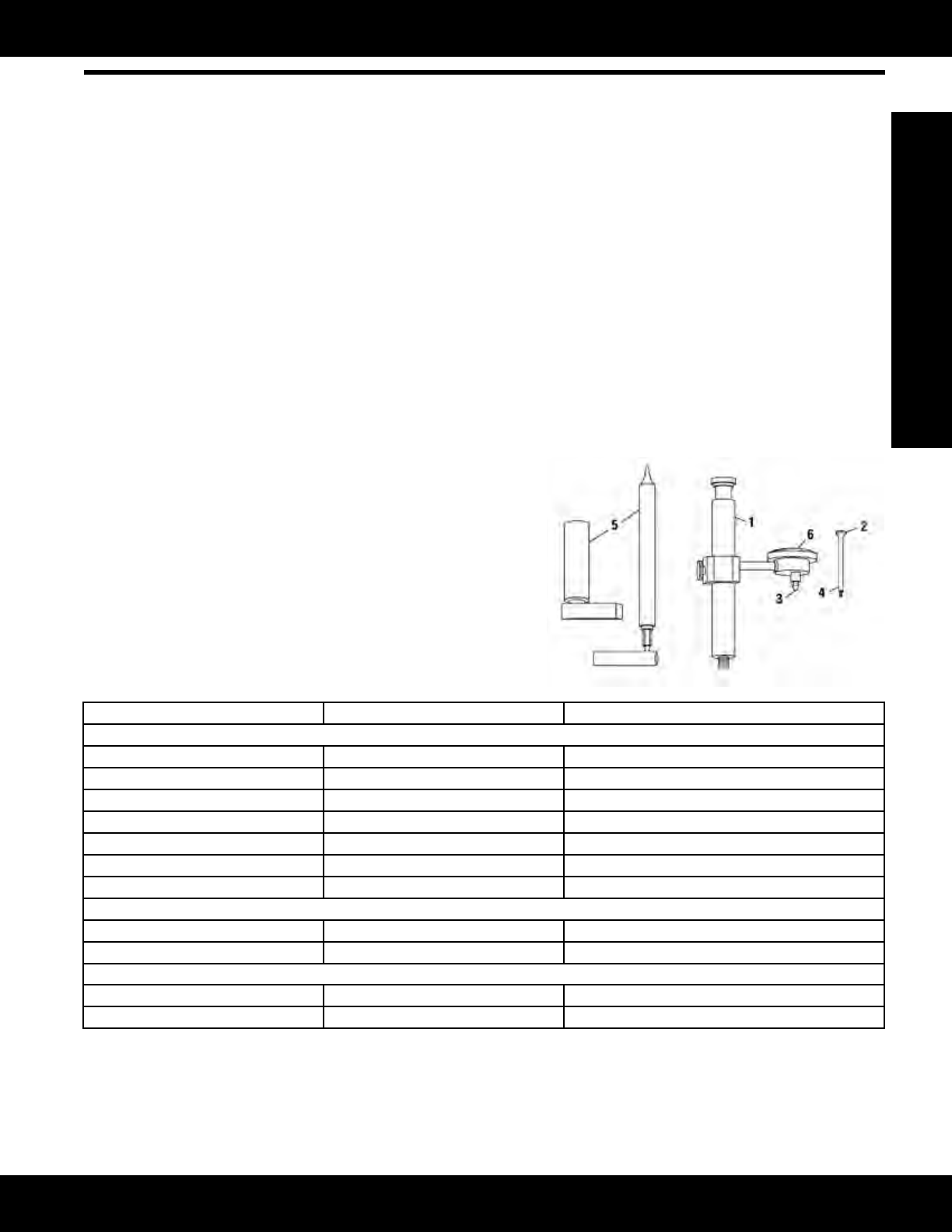

Item Part Number Description
147-5482 Valve Lash Adjustment Group
1 145-5191 Support Assembly
2 147-5536 Contact Point
3 147-2057 Contact Point
4 147-2058 Extension
5 148-7211 Bridge Nut Socket
-- 6V-3073 Case - Plastic
Not Shown 147-5535 Foam Block
Required tooling not included in 147-5482 - must be ordered separately:
6 147-2056 Dial Indicator (inch), preferred, or
6 147-5537 Dial Indicator (metric)
Recommended tooling not included in 147-5482 - must be ordered separately:
Not Shown 147-2060 Socket Wrench
Not Shown 147-2059 Torque Wrench
