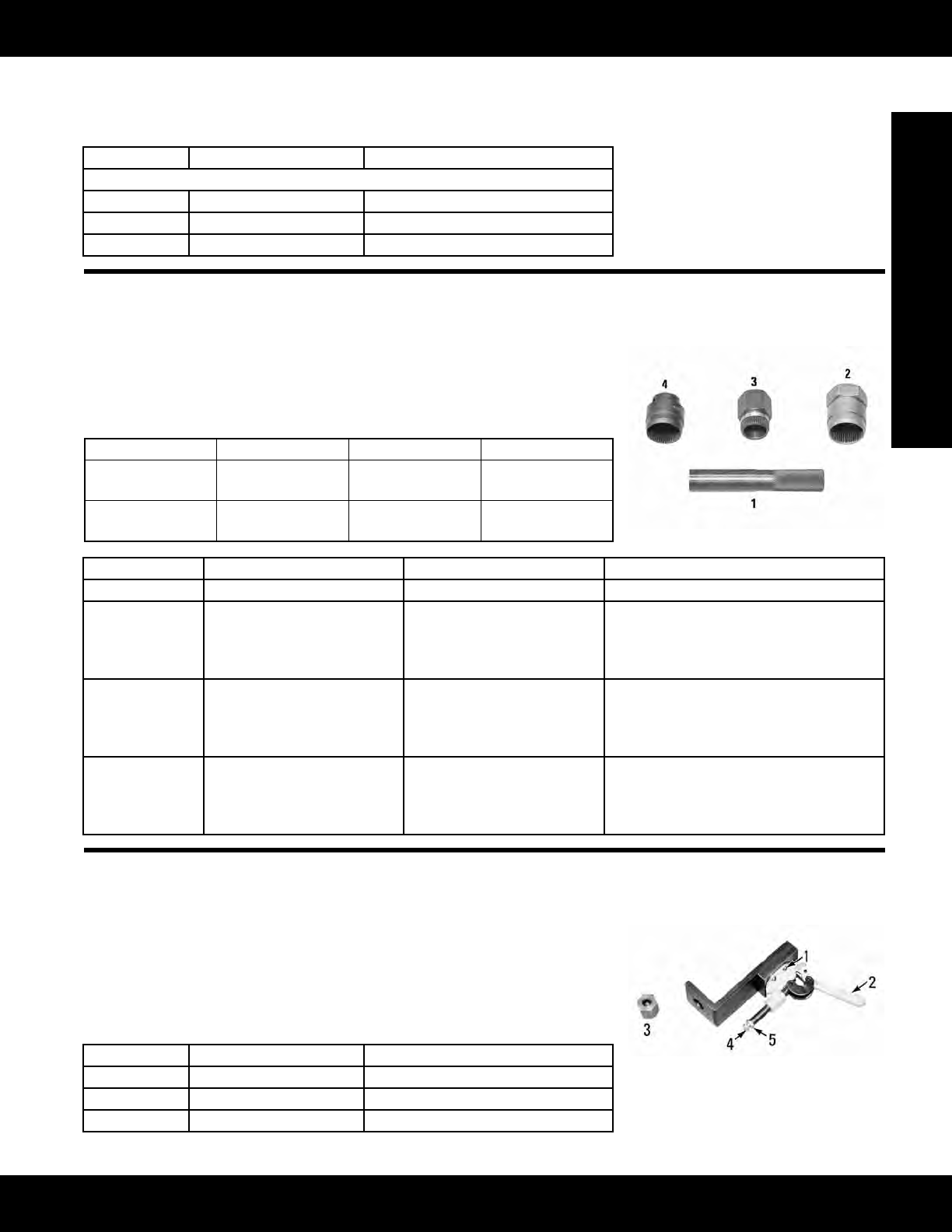

Caterpillar Engine Tools Cat Overhaul 3512 Page 267

Operation and Maintenance Manual
2596235
2596262
2596285
3-267
Engine Tools
Fuel System Repair and Adjust
FT2613 Gas Regulator Cap Assembly (Continued)
Model: All Models with discontinued 7E-3407 Gas Regulators
Warranty: None
Item Part Number Description
Gas Regulator Adjusting Tool
1 155-3062 Regulator Adjusting Tool
2 8T-5149 Fitting
3 123-5974 O-ring
Fuel Injection Pump Extractors
Model: 1100, 3100, 3200
Warranty: Six Months
• Usetheextractorandwrenchestoremoveandinstallfuelinjectionpumpsand
retaining bushings
Buttress Taps
• Bottoming
• For cleaning threads on 3300 NSFS and 3400 NSFS fuel system pumps
Size Threads Per Inch Part Number Pitch Diameter
1.375 in 12 1U-6725 33.746 ± 0.090 mm
(1.329 ± 0.004 in)
1.750 in 12 1U-6726 43.276 ± 0.090 mm
(1.704 ± 0.004 in)
Item Part Number Description Use
1 8S-2244 Extractor --
2 8S-2243 Wrench With8S-2244Extractortoremoveand
install fuel injection pumps on 1100 and 3100
SeriesEnginesandengineswithSleeve
Metering Fuel Systems
3 8T-5287 Wrench With8S-2244Extractortoremoveand
install fuel injection pumps on engines with
compactfuelsystems;replacesdiscontin-
ued 8S-4613 Wrench
4 5P-1668 Wrench,3/8indrive Removeandinstallfuelpumpretaining
bushings where space does not permit use
of 8S-2243 Wrench on 1100, 3100 and 3200
Series Engines
6V-7050 Compressor Group
Model: 3406
Warranty: Six Months
• Usedforservicingfuelpumpplungerandbarrelassemblieson3406Engines
with New Scroll Fuel System
• Neededtocompressheavierpumplifterspringsontheseengineswhenplunger
andbarrelassembliesareremovedandinstalled
Reference
SMHS8278, Special Instruction
Item Part Number Description
1 2N-3476 Screw (4)
2 6V-7015 Clamp Assembly
3 5M-7418 Nut
(Continued)
