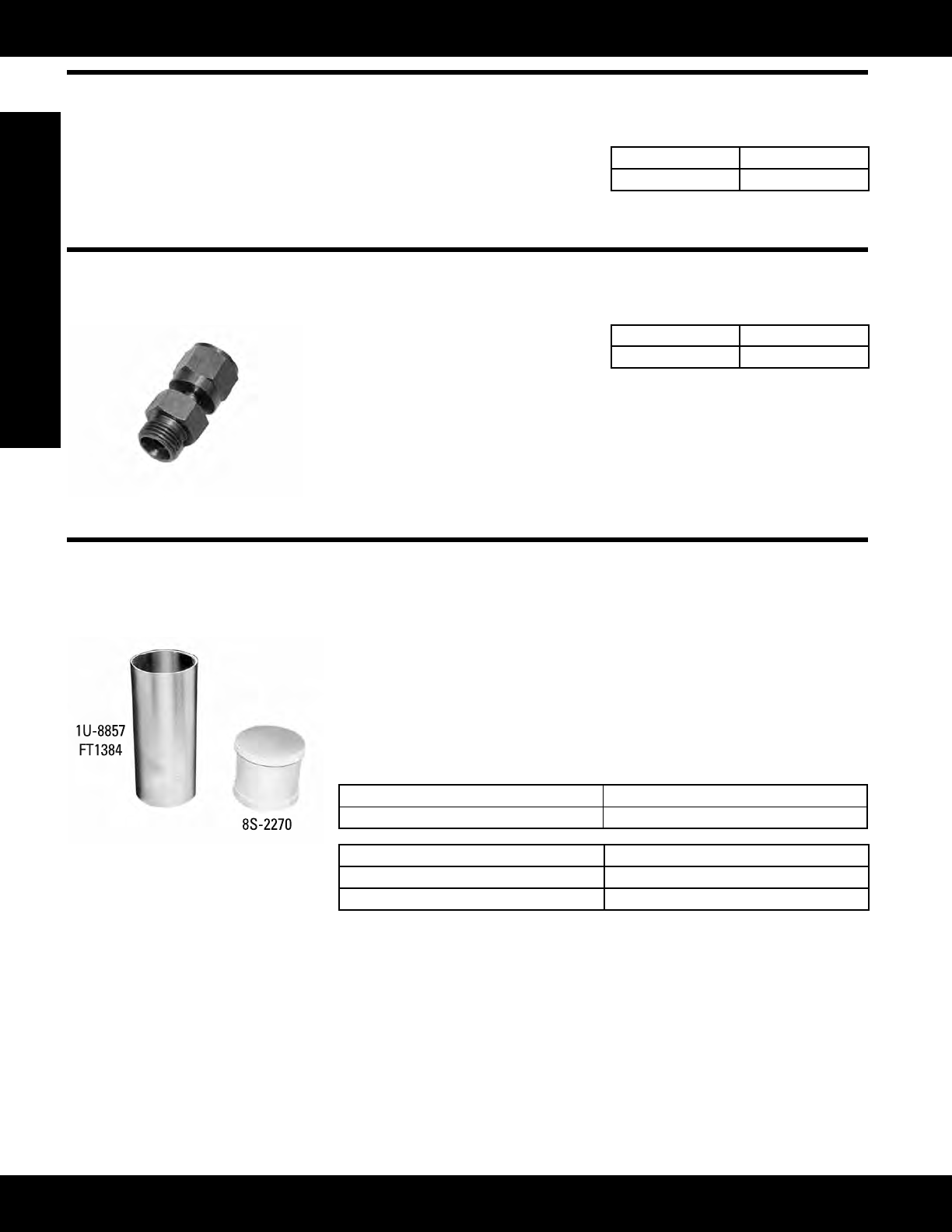

Caterpillar Engine Tools Cat Overhaul 3512 Page 234

Operation and Maintenance Manual
2594748
2594765
2594780
3-234
Engine Tools
Fuel System Test Tools
1U-9578 Repair Kit
Model: Cat
®
Engines
Warranty: Six Months
• Used to disassemble and assemble 5P-4150 Nozzle Tester Group
• Containsgaskets,seals,O-rings,steelballsandlter,alongwithprintedparts
breakdown if parts not included in the kit are needed
• Allows worn or broken 5P-4150 Nozzle Tester Group to be repaired and put back
intooperationwhenusedalongwithotherservicepartslistedinToolGuide
Part Number Description
1U-9578 Repair Kit
5P-7448 Adapter
Model:FlatSeatFuelInjectionValves
Warranty: Six Months
• Usedtotestandadjustatseatfuel
injectionvalveson5P-4150Tester
and also discontinued 1P-1795
MasterValvefromfuelinjectiontest
bench
Part Number Description
5P-7448 Adapter
1
1
Not included with tube assemblies, must be ordered separately
8S-2270 Fuel Collector
1U-8857 Extension Tube and FT1384 Extension
Model: All Fuel Systems
Warranty: 1U-8857: Six Months
1U-8857 Extension Tube
• Used with 8S-2270 Fuel Collector to collect spray from 5P-4150 Nozzle Tester or
8S-2242 Nozzle Tester
• Increasesheightof8S-2270FuelCollectortopreventsplashingoftestuid;
madeofplasticandcanbecutshortertomeetvaryingheightsrequiredbydif-
ferent mounting arrangements of Nozzle Tester Group
• Originally offered as FT1384 drawing, dealer now has option of purchasing or
fabricatingbecausethenecessaryplasticisdifculttopurchaseinsomeareas
Part Number Description
FT1384 Extension
Part Number Description
1U-8857 Extension Tube
8S-2270 Fuel Collector
