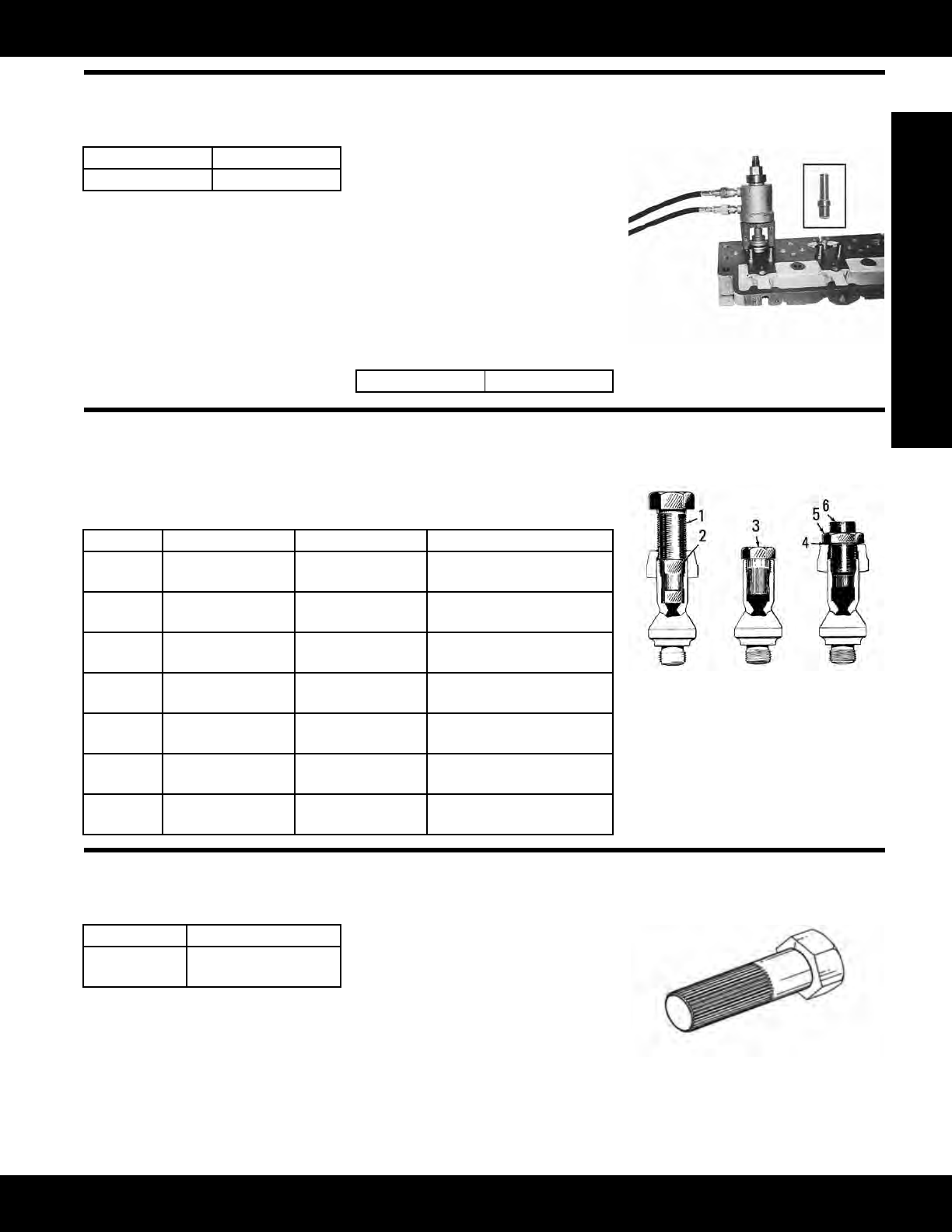

3-157

Engine Tools

Cylinder Head, Valves and Cam Followers

Drive-In Precombustion Chamber Tools

Model: Most Cat

Engines

Warranty: Six Months

• Hydraulic puller combined with

toolsshownprovidessimpleandef-

cientmethodofremovingdrive-in

type precombustion chamber

• Same tools can be used without

hydraulic puller

• Driverusedtoinstalldrive-intype

precombustion chambers in cyl-

inderheads;lowerendofthistool

servesaspilotsohammerblows

can be directed squarely on upper

end of chamber

Includes: Saddle

Part Number Description

6V-3160 Cylinder Group

5F-9217 Precombustion Chamber Tool Group

Model: Most Cat

Engines

Warranty: Six Months

• Engines with 1-piece precombustion chambers require only 5F-8353 Wrench for

removalandinstallation

Item Part Number Description Use

1 1A-2208 Bolt Removeprecombustion

chamber retainer

2 5F-9072 Spacer Removeprecombustion

chamber retainer

3 5F-8353 Wrench Removeandinstallprecom-

bustion chamber

4 4B-4285 Washer Replace precombustion

chamber retainer

5 0L-1017 Nut Replace precombustion

chamber retainer

6 6F-5515 Screw Replace precombustion

chamber retainer

-- 5F-9217 Precombustion

Chamber Tool Group

8S-0225 Precombustion Chamber Wrench

Model: 1674, D334, 3400

Warranty: Six Months

• Usedtoremoveandinstallprecom-

bustion chambers on 1674, D334,

and 3400 Series Engines

Part Number Description

8S-0225 Precombustion Cham-

ber Wrench
