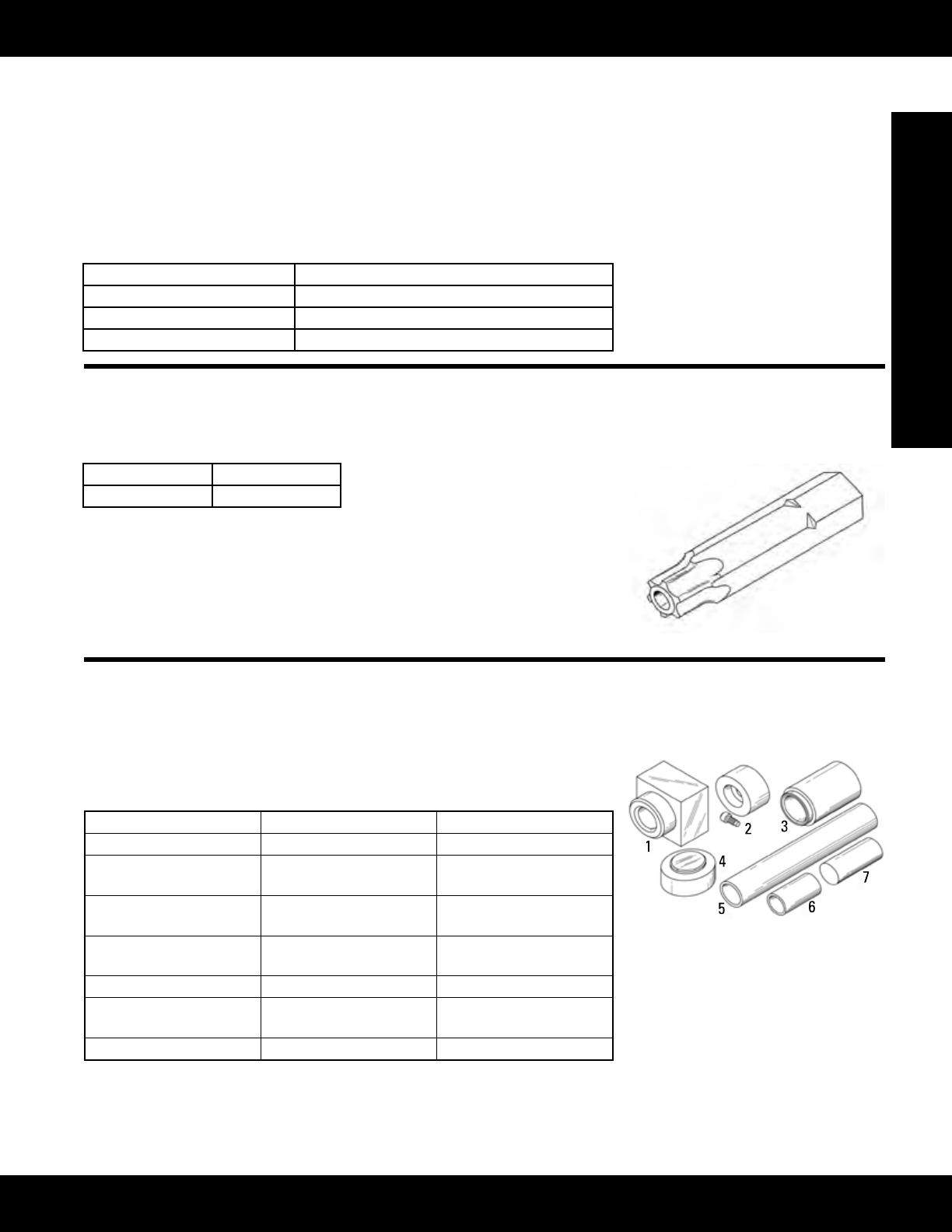

Engine Tools

Fuel System Repair and Adjust

171-1085 Bolt Remover Kit, 171-1088 Torque Screw Locknut Wrench, 171-1089 Idle Adjustment Locknut

Wrench (Continued)

Essential Tool

Model: 3054 and 3056 Engines with Stanadyne Pumps

Warranty: Six Months

NOTE:

UseofthesetamperresistantfastenertoolsissubjecttoEnvironmentalProtection

Agency (EPA) regulations. Read warning sheet included with each kit before using

these tools.

Part Number Description

171-1085 BoltRemoverKit

171-1088 Torque Screw Locknut Wrench

171-1089 Idle Adjustment Locknut Wrench

173-9774 Bolt Remover

Essential Tool

Model: 3054 Engine, serial number 5HK Used in 914G and 1T14G

Warranty: Six Months

• Usedtoremoveandinstalltamper

resistant fasteners used on fuel

injectionpumpaccesscover

• Hexshankbittsstandard3/8inch

hex socket

• Use of this tool is subject to EPA

regulations (sale of this tool is in-

tended for internal Cat

Dealer use

byqualiedmechanics)

• Fastener torque: 22 N·m (16 ft-lb)

Part Number Description

173-9774 BoltRemover

Overhaul Tools for Discontinued 144-0835 High-Pressure Pump

Essential Tool

Model: 3408E and 3412E HEUI Engines (7PR, 4CR)

Warranty: None

• Usedtooverhauldiscontinued144-0835HighPressureOilPumps

Reference

REHS0192, Special Instruction

Item Part Number Description

1 FT2606 Yoke Fixture

2 FT2607 Bearing Press Tool (2

required)

3 FT2608 Rear Bearing Installation

Tool

4 FT2609 ValveBlockPositioning

Tool

5 FT2610 FrontBearingRemover

6 FT2611 Front Bearing Support

(HEUI)

7 FT2612 RearBearingRemover
