Caterpillar Engine Tools Cat Overhaul 3512 Page 179

Operation and Maintenance Manual
2828441
2969295
2924914
3-179
Engine Tools
Lube System

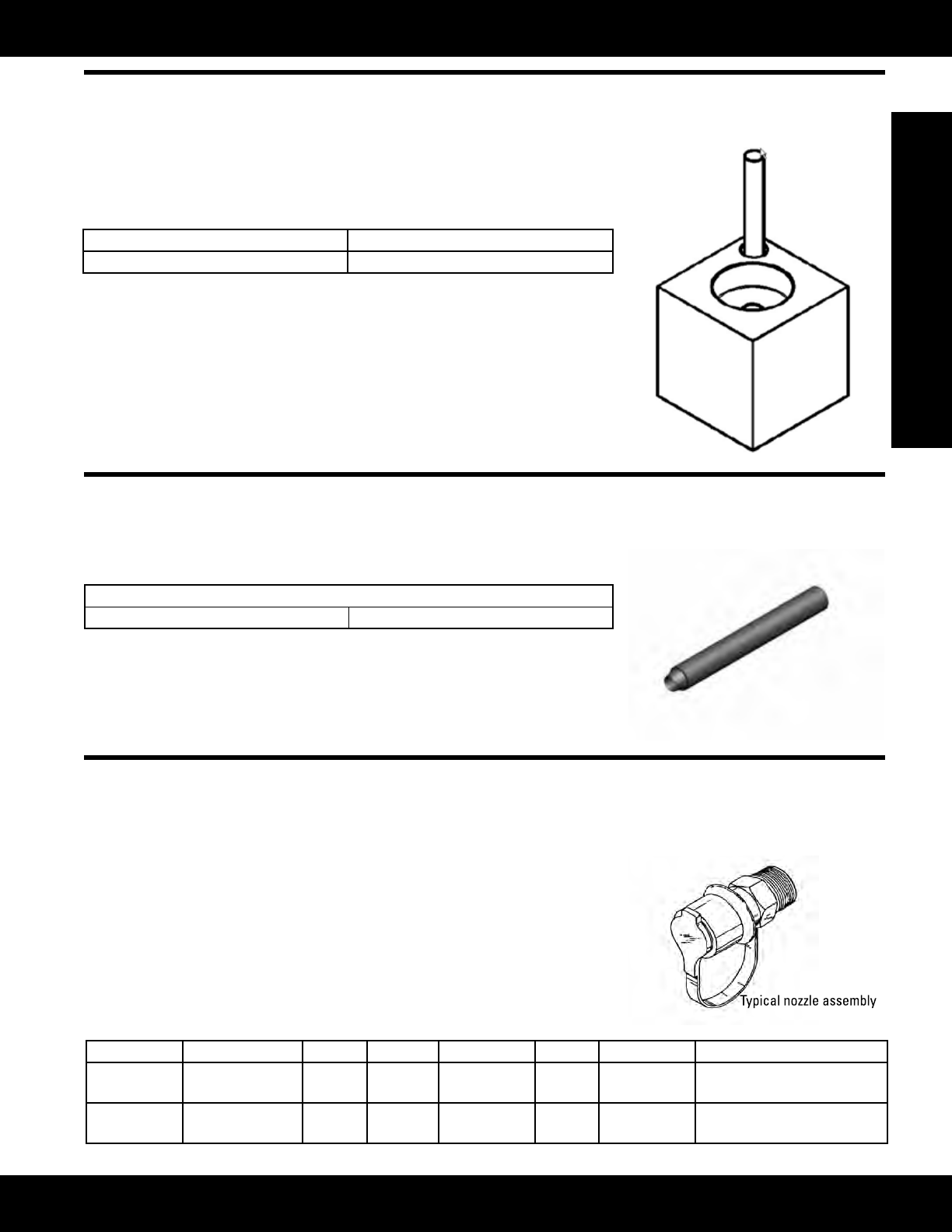

301-0285 Alignment Tool
Model Usage: C1.5 and C2.2 Engine
Warranty: Six Months
• Properly orients the oil pump to the engine block
• Provideprotectionoftheoilpumpduringtheinstallationprocess
Reference:
KENR9149, KENR6948, KENR6229
Part Number Description
301-0285 Alignment Tool
385-8485 Dowel Driver
Model Usage: C175
Warranty: Six Months
• Used to insert new oil dowel (371-6466) into C175 Block
• Does not distort dowel during installation
385-8485Specications
Dimensions 153 x 20 mm (6.02 x 0.79 in)
126-7538 Transmission Oil Nozzle Assembly
126-7539 Crankcase Oil Nozzle Assembly
Model: Multiple Engine Models
Warranty: Six Months
• Used to attach hose of high speed oil change equipment onto component be-
ingservicedonD8RTrack-TypeTractor(providesleakproofconnectionwhen
installed)
• Nozzleshelpcustomerstomoreeffectivelymeetlocalregulationsconcerning
oil spillage
• Usinghighspeedoilchangeequipmentprovidesfastandconvenientwaytoll
and drain oil from components
Part Number Description Length Diameter Thread Size Hex Size Installed To Used with
126-7538 Nozzle Assembly 78.7 mm
(3.10 in)
48.5 mm
(1.91 in)
3/4 -14 NPTF 33.3 mm
(1.31 in)
transmission
case oil drain
110-8319ReceiverAssembly
126-7539 Nozzle Assembly 83.8 mm
(3.30 in)
54.6 mm
(2.15 in)
3/4 - 14 NPTF 38.1 mm
(1.50 in)
engine crank-
case oil drain
110-8827ReceiverAssembly
