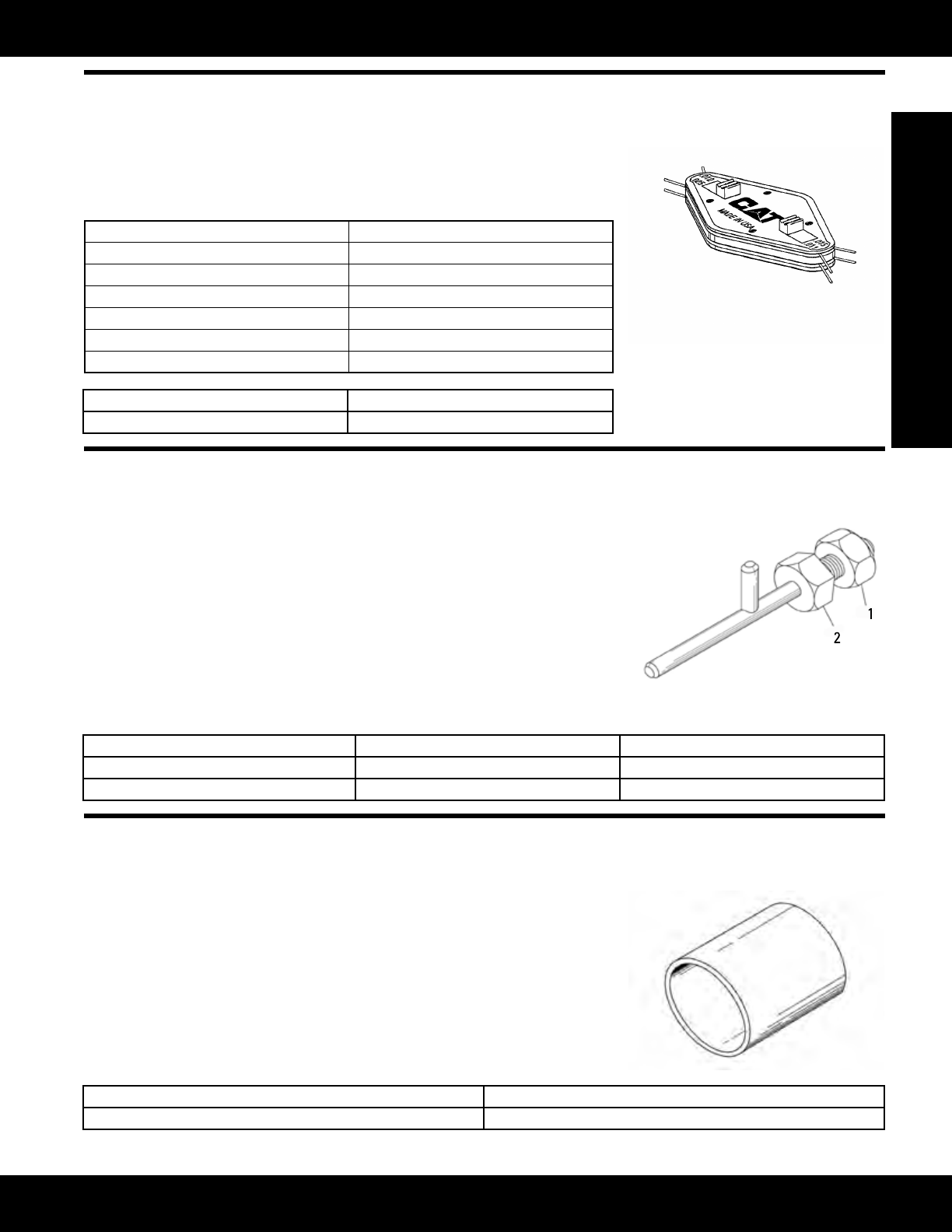

3-173

Engine Tools

Electrical and Ignition Tools

9U-7516 Spark Plug Gauge

Model: 3300, 3400, 3500, and 3600 Spark Ignited Engines

Warranty: Six Months

• Used to check spark plug gap on spark ignited engines

• Compact size — easy to carry from job to job

• Gapwiresareretractable—preventsdamagewhennotinuse

• Gauge has 2 of each size wires (4 sizes in all)

Engine Application Spark Plug Gap

3600 0.279 mm (0.011 in)

3600 Ionization probe 0.635 mm (0.025 in)

3500 0.279 mm (0.011 in)

3400 0.381 mm (0.015 in)

3400 J-gap 0.304 mm (0.012 in)

3300 0.635 mm (0.025 in)

Part Number Description

9U-7516 Spark Plug Gauge

FT2449 Indicator Bracket

Model:3516LocomotiveEngine

Warranty: None

• Used to check engine to generator alignment

• Threadsintoholeonmaintractiongeneratordriveshaft

• Allows 2 alignment readings to be taken at the same time — 1 indicator reads

outer coupling diameter and 1 reads coupling face

Item Part Number Description

1 4K-0367 Nut - Full

2 7X-0344 Bolt, 5/8 - 11

192-7039 Driver Assembly

Model: DV096 Generator Set

Warranty: Six Months

• Used to install shaft seal for auxiliary water pump

• Usedwithhammerandsuitabledriverwith6.4mm(0.25in)pilot

• DriveinstallerontoshaftuntilODoftoolcontactshousing

• Savestimeduringpumpoverhaulbyinstallingsealatexactlocationeverytime

(eliminates guess work)

Reference

GeneratorServiceManual

Part Number Description

192-7039 DriverAssembly
