Caterpillar Engine Tools Cat Overhaul 3512 Page 174

Operation and Maintenance Manual
2593284
2593309
3-174
Engine Tools
Electrical and Ignition Tools

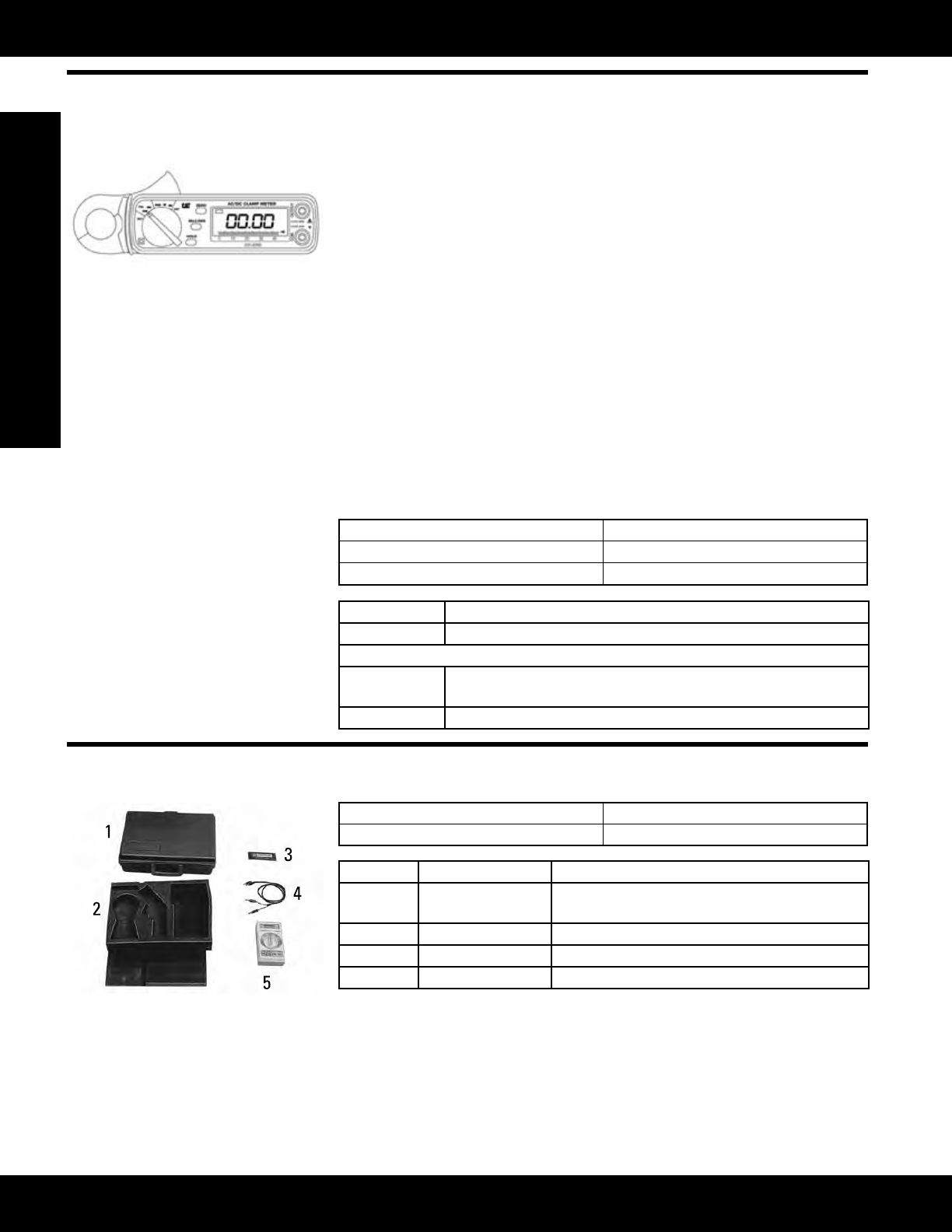

225-8266 Clamp On Ammeter
Model: All
Warranty: Manufacturer’s One Year
European Union compliant, CE marked
• Used to measure AC or DC current
• Compact size and low cost make this unit indispensible
• Clamp-on probe replaces standard test leads (allows current measurements
without breaking circuit)
• Measures current in cables up to 23 mm (0.9 in) diameter
• User selectable 400 ampere and 1200 ampere scales for both AC and DC
• Powered by two 1U-9533 AA Alkaline Batteries
• Designed with a built-in display, push button zero control for DC operation, “dis-
play hold” to freeze display, “max/min recording” to display highest and lowest
readings, auto power-off (unit turns off automatically after 30 minutes), and low
battery indicator
• Shipped with batteries, carrying case, and users guide
Repair Information
Extech Instruments
9 Townsend West
Nashua, NH 03061
Ph: (781) 890-7440, ext: 220
Fax: (781) 890-7864
Email: repair@extech.com
Weight 190 g (6.7 oz)
Overallsize 183 x 61 x 36 mm (7.2 x 2.5 x 1.4 in)
Resolution 1 A
Part Number Description
225-8266 Clamp On Ammeter (400, 1200 A ranges)
Service/Repair Parts
1U-9533 AA Alkaline Battery , non-rechargeable, package qty 96 (5 required
to power Indicator III)
6V-6014 Cable
Carrying Case and Accessories for Discontinued 8T-0900 Clamp-on Ammeter
Warranty: Six Months
Item Description
3 Form SEHS8026 “Electrical Test Kit”
Item Part Number Description
1 6V-3072 Case - Plastic, NEEG2574 Group Decal on lid (9U-
7402 Group)
2 6V-6040 Foam Insert
4 6V-6014 Cable
5 6V-7070 Digital Multimeter
