Caterpillar Engine Tools Cat Overhaul 3512 Page 74

Operation and Maintenance Manual
2588969
2588986
2589009
3-74
Engine Tools
Crankshaft, Main Bearings and Flywheel

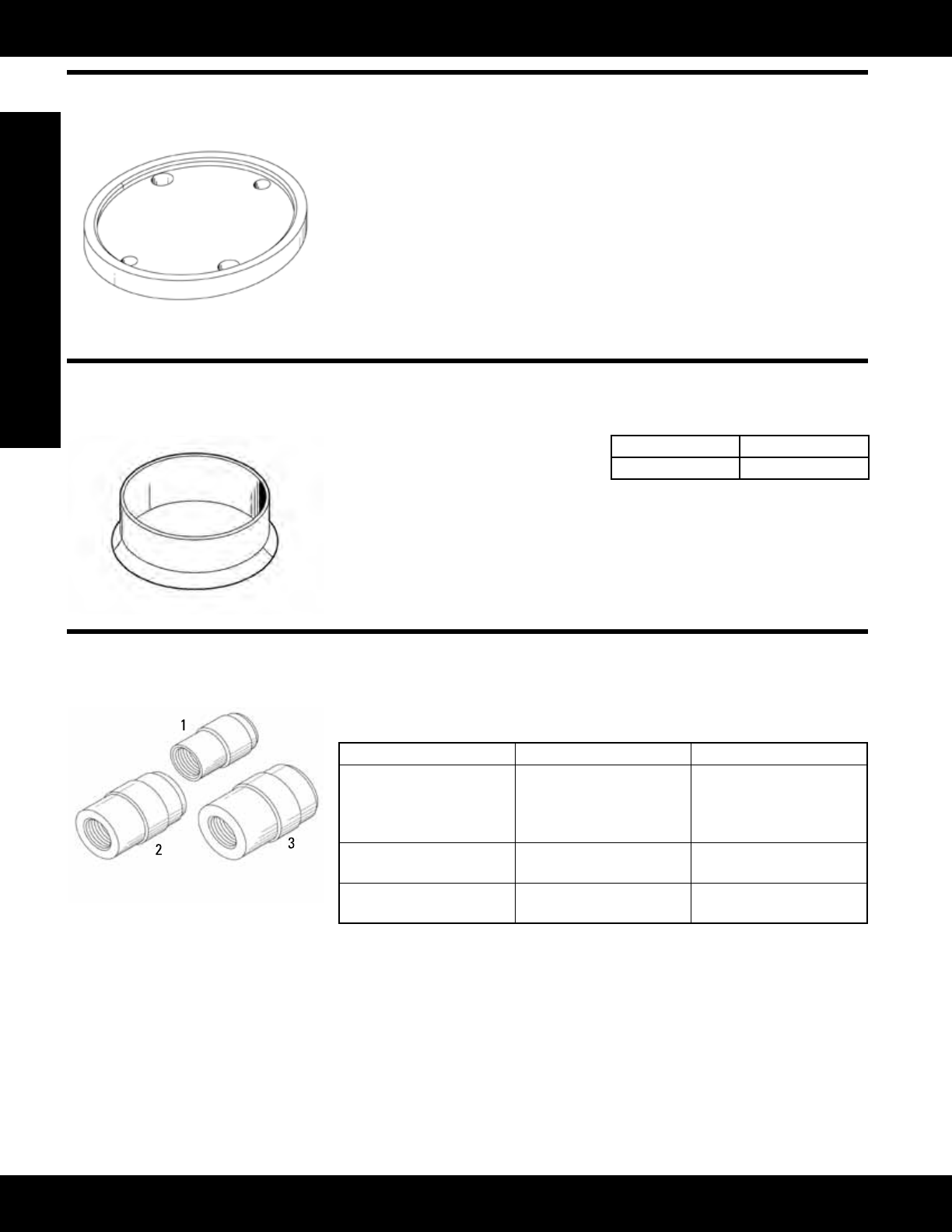

FT0105 Push Plate
Model: D379B, D398B, D399
Warranty: None
• Used to install oil thrower on crankshaft of D397, D375 and G375 Engines
171-7212 Repair Sleeve
Model: 3114, 3116, 3126, 3126B Engines
Warranty: Six Months
• Used to quickly and easily repair
front crankshaft hub damaged by
crankshaft seal
• Used with current 5P-6208 Installa-
tion Tool
• Used in place of 5P-6188 Repair
Sleeve
• Provideswidersurfacetoensure
sealisrunningcompletelyonsleeve
• Sleevewidth:29.0mm(1.14in)
Part Number Description
171-7212 WearSleeve
Drivers
Model: Cat
®
Engines
Warranty: None
• UsedwithFT0129,FT0131,andFT0133SleevesandFT0144Handletoinstall
crankshaft plugs and retaining rings for engines listed in chart
Item Part Number Model
1 FT0128 619C and 824 Tractor
Engines&D326,D337,
D343, D336 Engines in all
Applications
2 FT0130 641, 650, 651, 657, 660, 666
Tractor Engines
3 FT0132 D353,D379&D398Engines
in all Applications
