3-240

Engine Tools

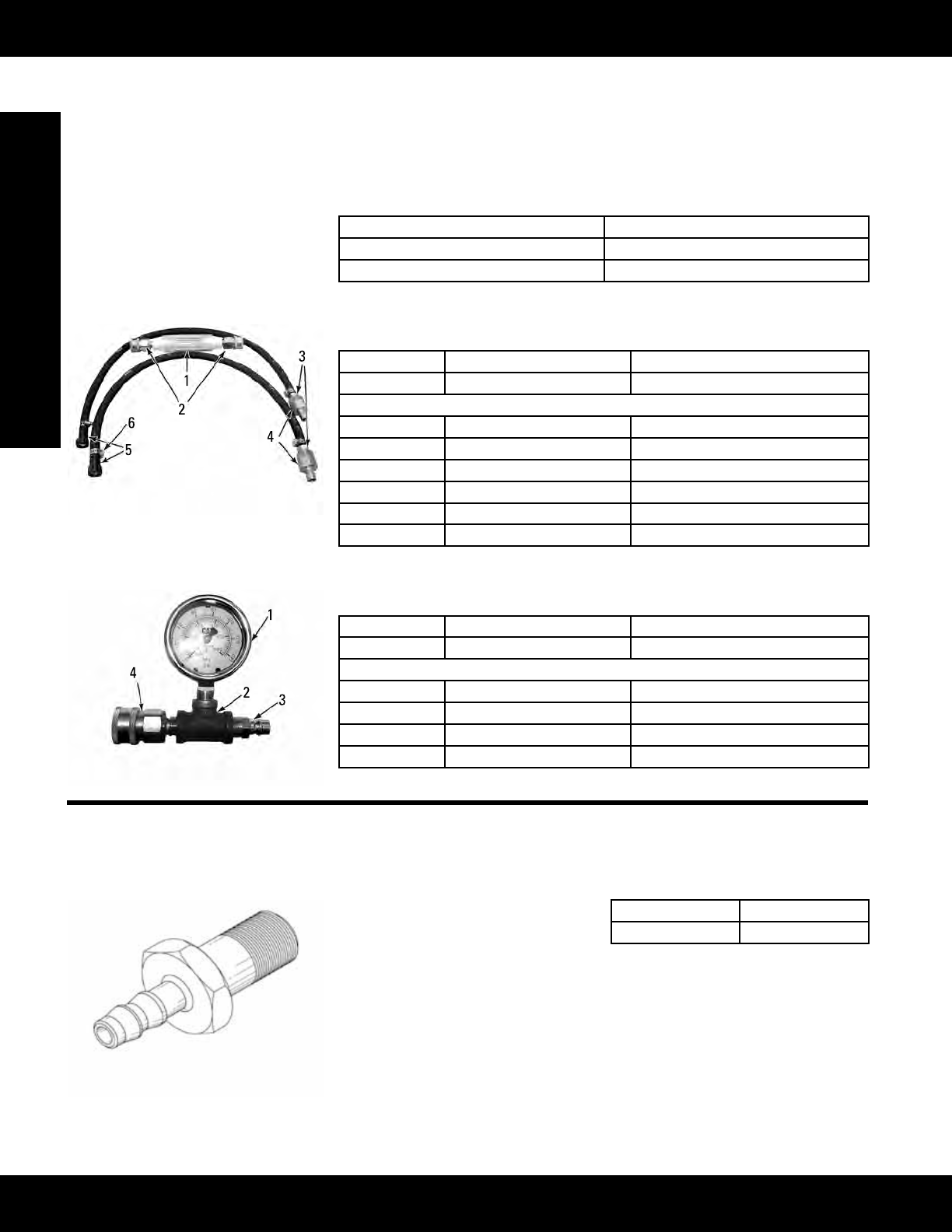

Fuel System Test Tools

Fuel System Tools (Continued)

Essential Tool

Model: C4.4 and C6.6 Engines

Warranty: Six Months except 298-5564 which is Manufacturer’s Lifetime

References

SEBD9416,ServiceManual(298-5564)

TIBU4874, Bulletin (300-4988)

Part Number Description

300-4988 Fuel Leak Kit

298-5564 T40 Torx Socket

301-1501 Air-in-Fuel Test Kit

• Used to check for air in fuel in C4.4 and C6.6 engines

Item Part Number Description

-- 301-1501 Air-In Fuel Test Kit

Service/Repair Parts

1 2P-8278 Fuel Flow Tube

2 3P-2233 Coupler Assembly

3 102-5758 Hose End

4 3P-2234 Nipple

5 215-9513 Connector

6 124-6275 Hose Clamp

304-3107 Pressure Adapter

• Used to check transfer pump pressure on C4.4 and C6.6 engines

Item Part Number Description

-- 304-3107 Pressure Adapter

Service/Repair Parts

1 8T-0854 Gauge

2 6V-1739 Pipe Reducing Tee

3 3P-2236 Nipple

4 3P-2233 Coupler Assembly

334-3221 Nozzle

Essential Tool

Model: C6.4 Engines

Warranty: Six Months

• Used to connect fuel leak kit to 297-

7658 Manifold Block (for measuring

test fuel system leaks)

• Used with 300-4988 Fuel Leak Kit

• M14 x 1.5 threaded end installs into

manifold block

• Barbedendts8.25mm(5/16in)ID

hose from fuel leak kit

Part Number Description

334-3221 Nozzle
