Caterpillar Engine Tools Cat Overhaul 3512 Page 75

Operation and Maintenance Manual
2589024
2589038
2589051
3-75

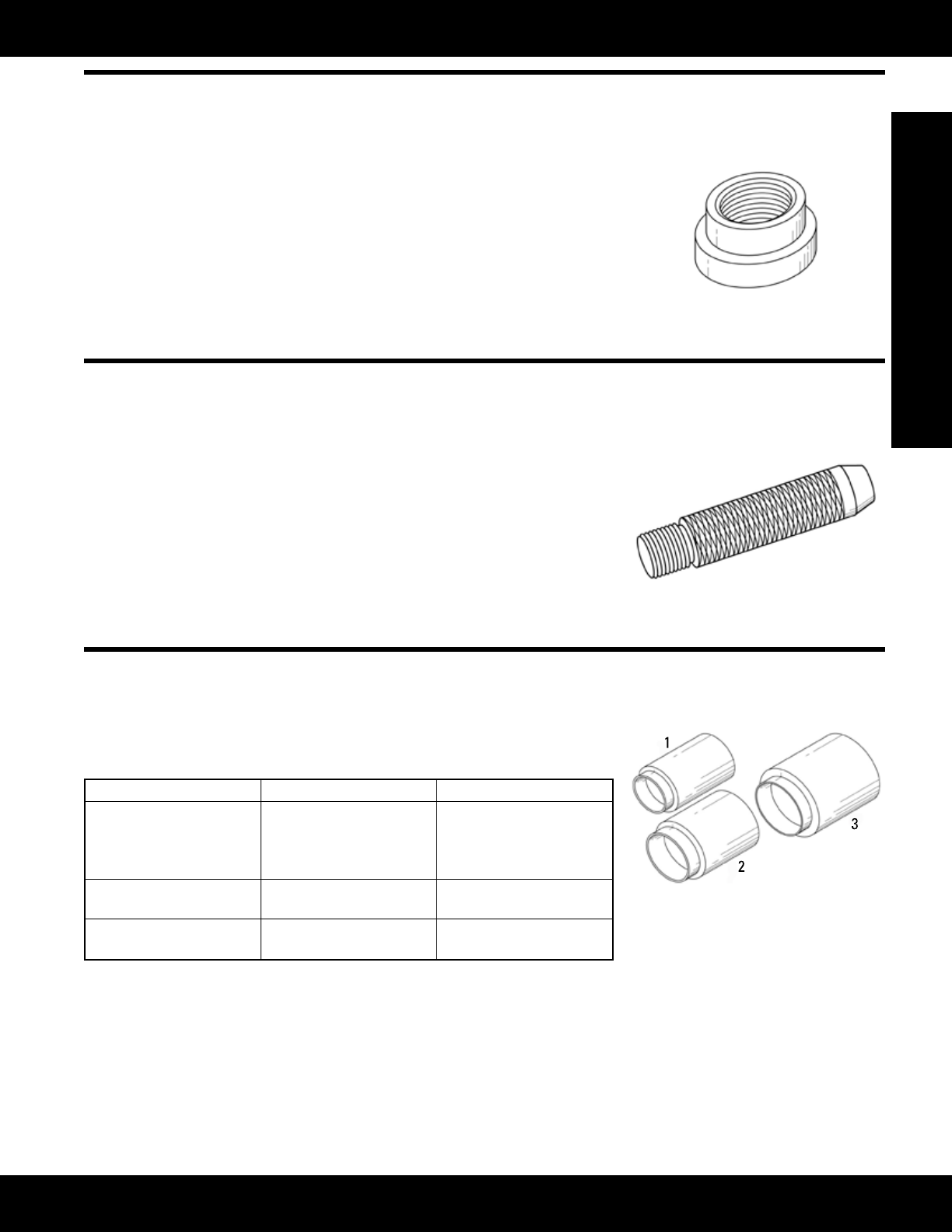

Engine Tools
Crankshaft, Main Bearings and Flywheel
FT0143 Driver
Model: D375 and D397 Engines
Warranty: None
• Used to install crankshaft plugs
• Used with FT0144 Handle
• Material: SAE 4140 steel
FT0144 Handle
Model: D7G Engine
Warranty: None
• UsedwithFT0128,FT0130,FT0132,andFT0143DriversforD7G
Sleeves
Model: Cat
®
Engines
Warranty: None
• UsedwithFT0128,FT0130,FT0132DriversandFT0144Handletocompressand
install crankshaft plugs and retaining rings for engines listed in chart
• Material: SAE 4140 steel
Item Part Number Model
1 FT0129 619C and 824 Tractor
Engines&D326,D337,
D343, D336 Engines in all
Applications
2 FT0131 641, 650, 651, 657, 660, 666
Tractor Engines
3 Ft0133 D353,D379&D398Engines
in all Applications
