Engine Tools

Camshaft and Timing Gear Tools

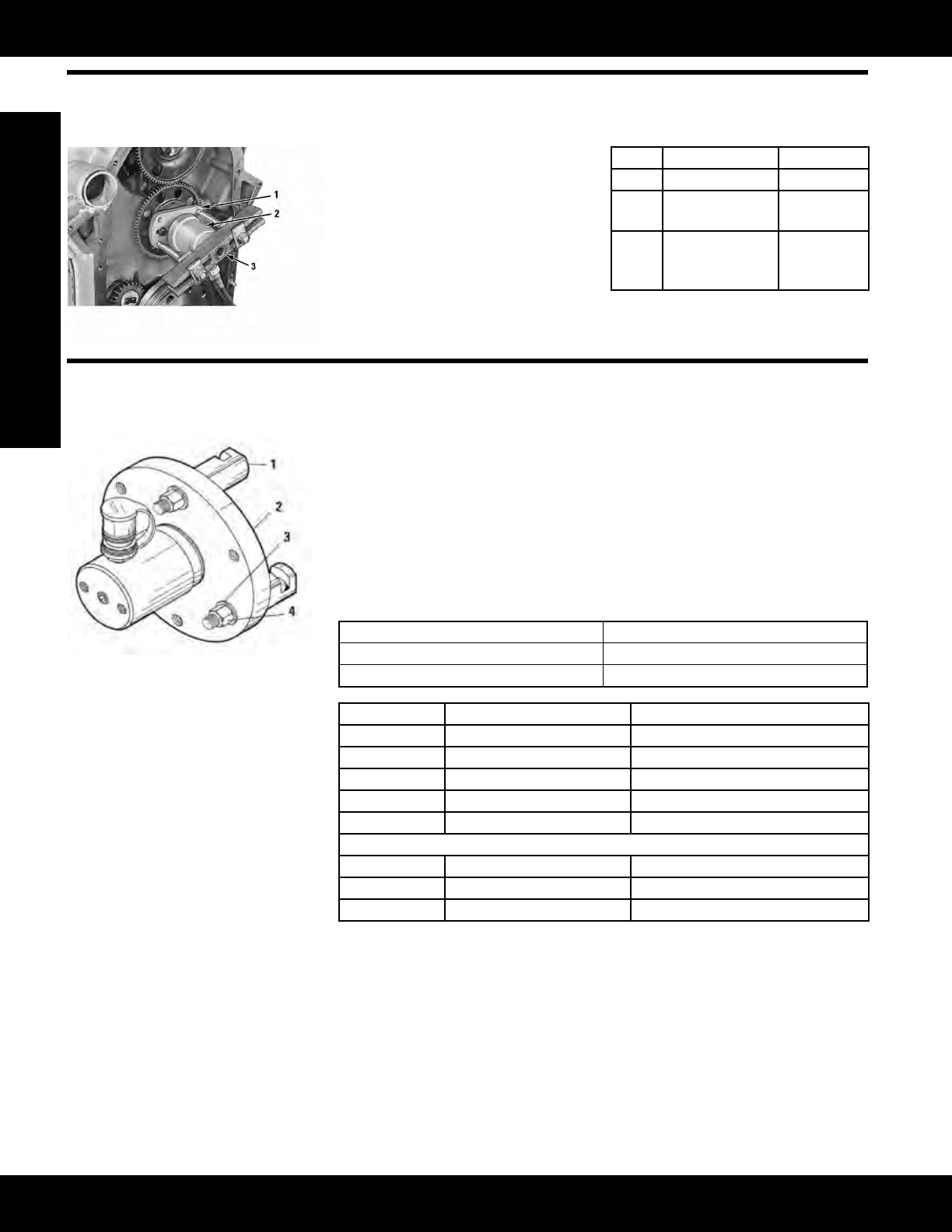

8F-3672 Gear Removal Plate

Model: Cat

Engines

Warranty: Six Months

• Removalofcamshaftoraccessory

drivegearwithhydraulicpuller(2)is

simple operation combining use of

plate (1) and push-puller (3)

Item Part Number Description

1 8F-3672 Plate

2 6V-3160 Cylinder

Group

3 8B-7548 Puller

Assembly -

Bearing

167-3834 Puller Group

Model: 3176, 3176B, 3196, C-10, and C-12

Warranty: Six Months

• Usedtoremovepresstcamshaftgearwithoutpullingcamshaftordisturbing

overheadcomponents

• Used with dealer supplied 10,000 psi 1U-5230 Single Acting Hand Pump, 3S-6224

ElectricHydraulicPump,orequivalent

• Used with induction gear heater to install cam gear (not included)

• Savestimeonfrontcoverrepairs

• For engines built through May 1998

• Onlyworksoncamgearswithlighteningholes;willnottsolidhubgears

Reference

NEHSO760, Tool Operating Manual

Hydraulic ram single action

Ram stroke 51 mm (2.0 in)

Ram capacity 25 ton

Item Part Number Description

1 167-1999 Puller Leg

2 167-1998 Puller Plate

3 5P-8247 Hard Washer

4 6B-6683 Nut

-- 167-3834 Puller Group

Required parts, not included

1 5P-8245 Hard Washer

3 5P-2566 Hex Head Bolt

-- 138-7575 Bracket - Link
