Caterpillar Engine Tools Cat Overhaul 3512 Page 162

Operation and Maintenance Manual
2592770
2592789
2592806
3-162
Engine Tools
Cylinder Head, Valves and Cam Followers

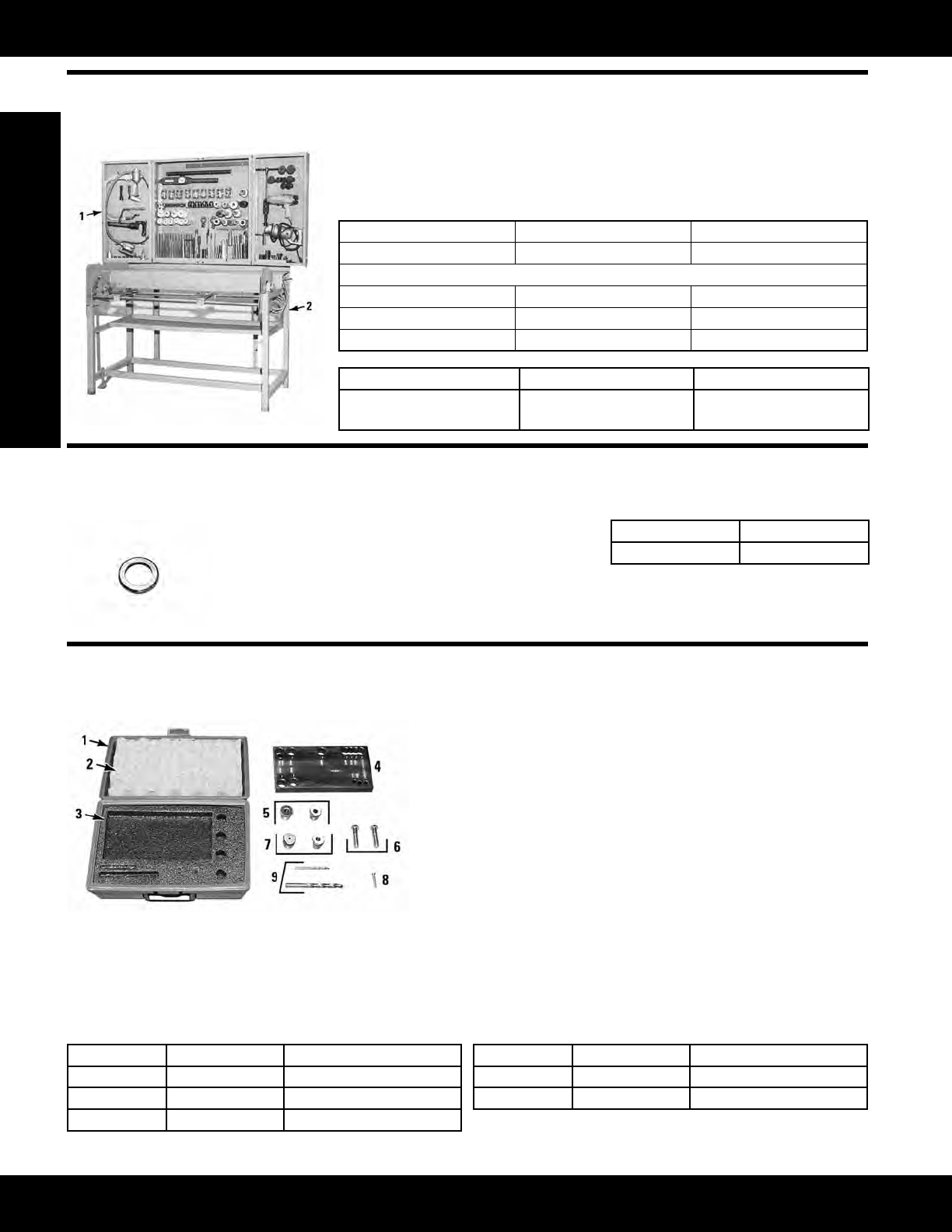

FT0806 Cylinder Head Repair Bench
Model: All Cat
®
Engines
Warranty: None
• ProvidescradlewhichwillmountallCat
®
cylinder heads
• Cradle is well balanced and supported by ball bearings
• Foot-operatedreleasemechanismenablesservicemantoturncylinderheads
with ease
Item Part Number Description
2 FT0806 Repair Bench
Clampsusedtoservice3208and3406cylinderheads
FT1660 Clamp
FT1661 Clamp
FT1662 Clamp
Item Part Number Description
1 9S-9087 Tool Cabinet (for illustra-
tion purposes)
5P-8703 Insert
Model: D353 Engine
Warranty: Six Months
• Required to modify former D353 cyl-
inder heads for spacer plate blocks
• Quantity: 12
Reference
SMHS7339, Special Instruction
Part Number Description
5P-8703 Insert
6V-9050 Stud Removal Tool Group
Model: 3200, 3300, 3400, C9, C15, C-16, C18, C27, C32
Warranty: Six Months
• Designedtoremovebrokenexhaustmanifoldstudsand
bolts
• Consistsofdrillxture,2alignmentbushings,2drillbush-
ings, and 2 drills
• Removalofbrokenstudbeginsbyusingdiscgrinderto
grind broken stud so 164-3755 Drill Fixture can be secured
tocylinderhead;1/8inchdrillanddrillbushingrstused
todrillcompletelythroughbrokenstud;thenstudisdrilled
out using 5/16 inch drill and drill bushing
• Since bolts are used to retain exhaust manifolds on 3200
Family Engines, HeliCoil is acceptable for repair of these
heads;however,studswithtaperlockthreadsareusedto
retain exhaust manifolds on 3300 and 3400 Family Engines
and HeliCoil cannot be satisfactorily used to repair cylin-
der heads on these engines.
Reference
SMHS8297, Special Instruction
Item Part Number Description
1 6V-3073 Case - Plastic
2 6V-4094 Foam-Convoluted
3 6V-9051 Block
Item Part Number Description
4 5P-7330 Screw
4 164-3755 Fixture
(Continued)
