Caterpillar Engine Tools Cat Overhaul 3512 Page 286

Operation and Maintenance Manual
2597003
3-286
Engine Tools
Fuel System Repair and Adjust

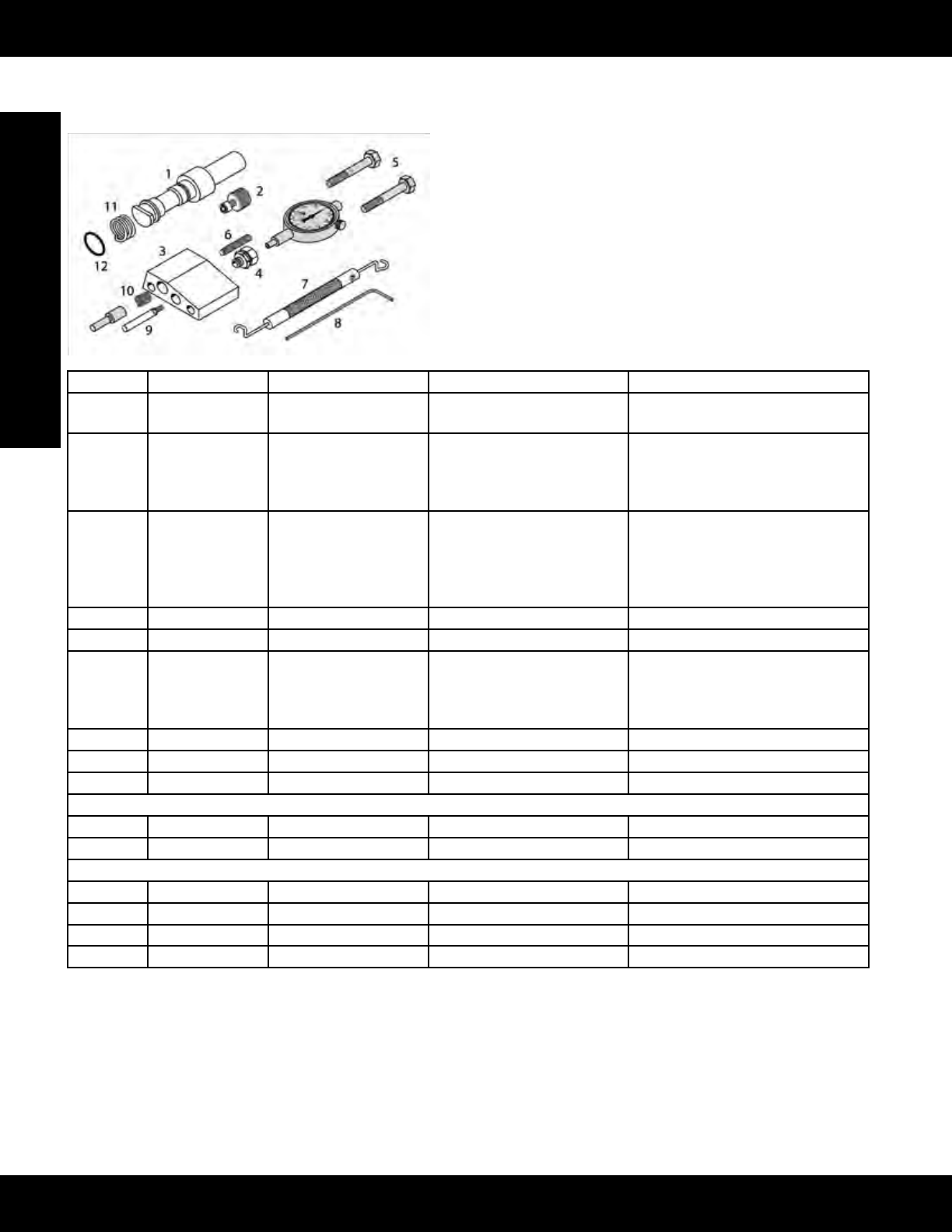

Calibration Tools (Continued)
Model:3208EngineswithHeavySleeveMeteringFuelSystem
Warranty: Six Months
Item Part Number Description Used with Used to
1 141-6727 Calibration Pump As-
sembly, 3208 HSMFS
3P-2200 Calibration Tool Group
forsleeveleversetting
Setsleeveleverpositiononcontrol
shaft during injection pump assembly
2 141-6737 Adjustable Micro-Gauge 3P-2200 Calibration Tool Group
forsleeveleversetting
Presetsleeveleverpositionbefore-
nal calibration (use a wicking sealant
tolockscrewinplacethersttime
this gauge is used)
3 145-1853 Calibration Fixture 3P-2200 Calibration Tool Group
forsleeveleversetting5P-4203
or 5P-6577 for fuel setting
adjustments
Hold calibrating and zero pins for
rack setting and positioning control
shaftsforsleevesetting(requiredfor
all 3208 HSMFS and 3208 SMFS injec-
tion pumps)
4 3P-1565 Collet Clamp -- --
6 8S-7271 Setscrew -- --
7 131-3459 SleeveHolder -- Positionsleeveduringpumpdisas-
semblyandassembly-simplies
assemblyandprotectssleevefrom
damage
8 146-5068 Hex Key-Ball End -- --
9 5P-4809 Point Indicator -- --
10 3J-6956 Spring -- --
Service parts for 141-6727 Calibration Pump Assembly
11 5P-6557 Spring -- --
12 8T-0116 O-ring -- --
Recommended but not shown
-- 6V-3073 Case - Plastic -- --
-- 2P-8289 Holder Block -- --
-- 6V-4873 Foam - Block -- --
-- 6V-4094 Foam-Convoluted -- --
