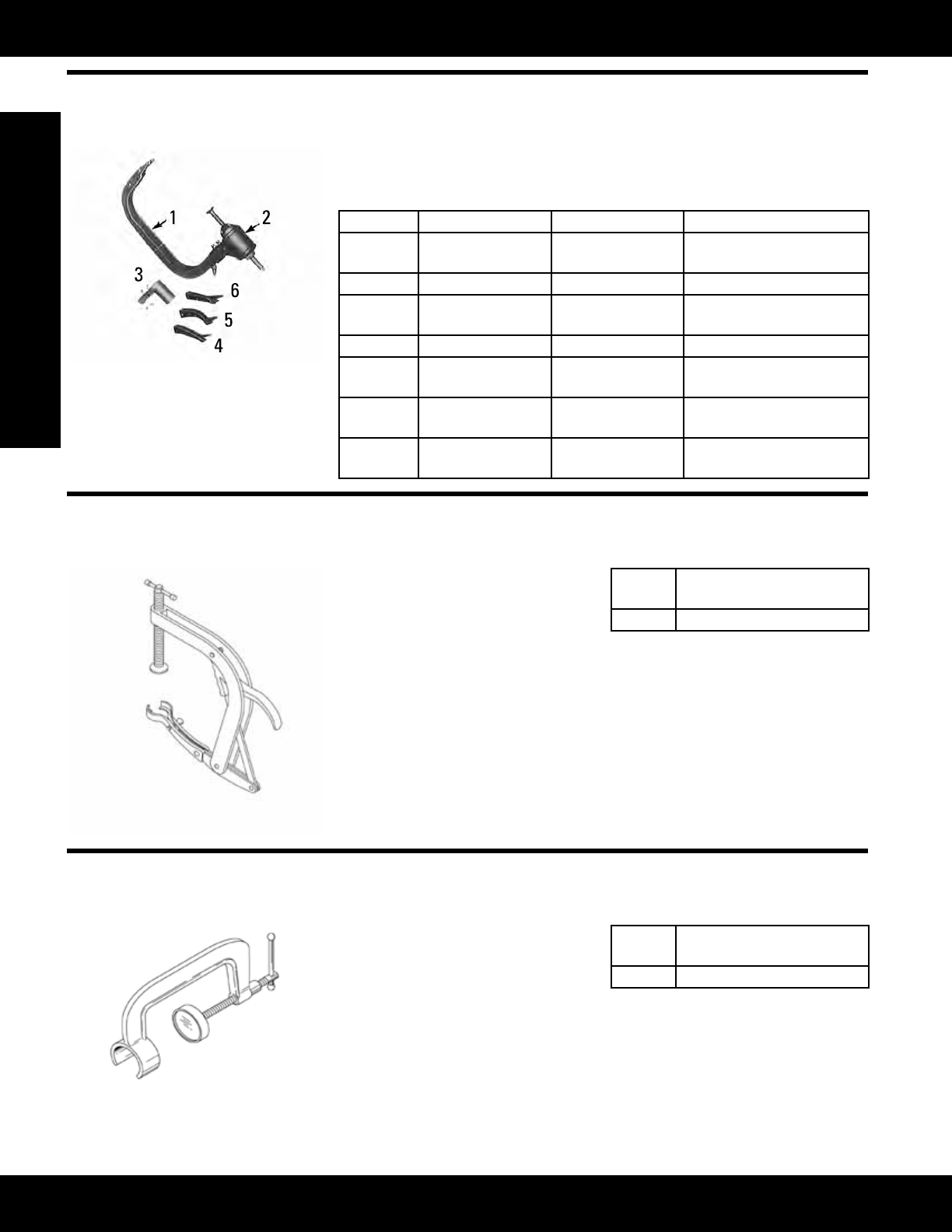

3-116

Engine Tools

Cylinder Head, Valves and Cam Followers

5S-1330 Pneumatic Valve Spring Compressor

Model: All Engines except 3600

Warranty: Six Months

• Timesaverwhenremovingandinstallingvalvekeepers

• Discontinued5S-1326SpecialAdapterusedinplaceofregularjawsforservic-

ing D343 and 1693 Engines

Item Part Number Description Size

-- 5S-1330 PneumaticValve

Spring Compressor

1 5S-1325 Frame --

3 5S-1326 Cylinder Special

Adapter

2 5S-1323 Cylinder --

4 5S-1327 Jaw [25.4 mm (1 in) - 44.45 mm (1

1/4 in) Cap]

5 5S-1328 Jaw [28.57 mm (1 1/8 in) - 50.8 mm

(2 in) Cap]

6 5S-1329 Jaw [38.1 mm (1 1/2 in) - 63.5 mm

(2 1/2 in) Cap]

1P-3527 Valve Spring Compressor

Model: 1.1, 1.2, 3126B, 3200, 3300, 3400

Warranty: Six Months

• Quickandeasywaytoremovevalve

springs

• Hand operated

• Analternativetothe5S-1330Pneu-

matic Spring Compressor when

compressedairisnotavailable

• Cylinder head must be off the

engine

Part

Number Description

1P-3527 ValveSpringCompressor

6V-4062 Injector Spring Compressor

Model: 3500 Marine

Warranty: Six Months

• Used to check fuel injection — will

movefreelyunderitsownweight

• Rackmovementneedstobe

checkedinseveralpositions

Reference

SENR4693, 3516 Marine Disassembly and

Assembly

Part

Number Description

6V-4062 Injector Spring Compressor
