3-360

Engine Tools

Engine Lifting and Positioning

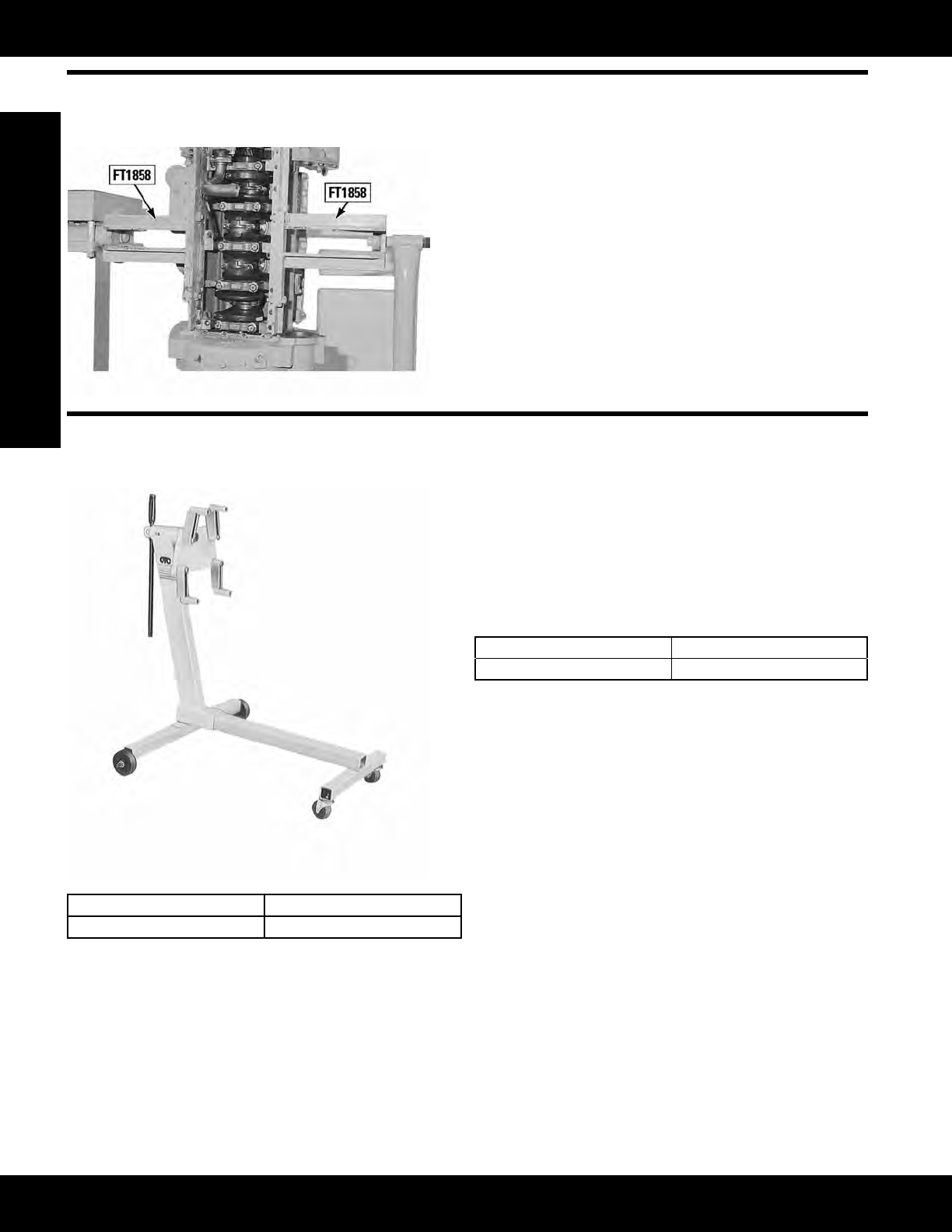

FT1858 Engine Stand Adapter

Model: 3204

Warranty: None

• Used with 1U-7502 Engine Stand for rebuilding 3204

Engines

• Holdsengineatconvenientworkingheightduringdisas-

sembly or assembly

1U-9352 Engine Stand, 1000 lb

Model: Engines within 1000 lb

Warranty: Six Months

• Useforlifttruck,car,andlighttruckengineservice

• 4 adjustable attachment arms make engine mounting fast

and easy

• Engine can be rotated full 360° with turn of handle

• Locking pin secures work in any of 8 positions

• Bothrearwheelslocktightlytoanchorstand;2swivel

castersinfrontprovidegreatmobility

• Disassemblebyremovingonly1boltforeasytransport

Capacity 454 kg (1000 lb)

Weight 45.4 kg (100 lb)

Part Number Description

1U-9352 Engine Stand, 1000 lb
