Caterpillar Engine Tools Cat Overhaul 3512 Page 253

Operation and Maintenance Manual
2595565
2595591
2595610
3-253

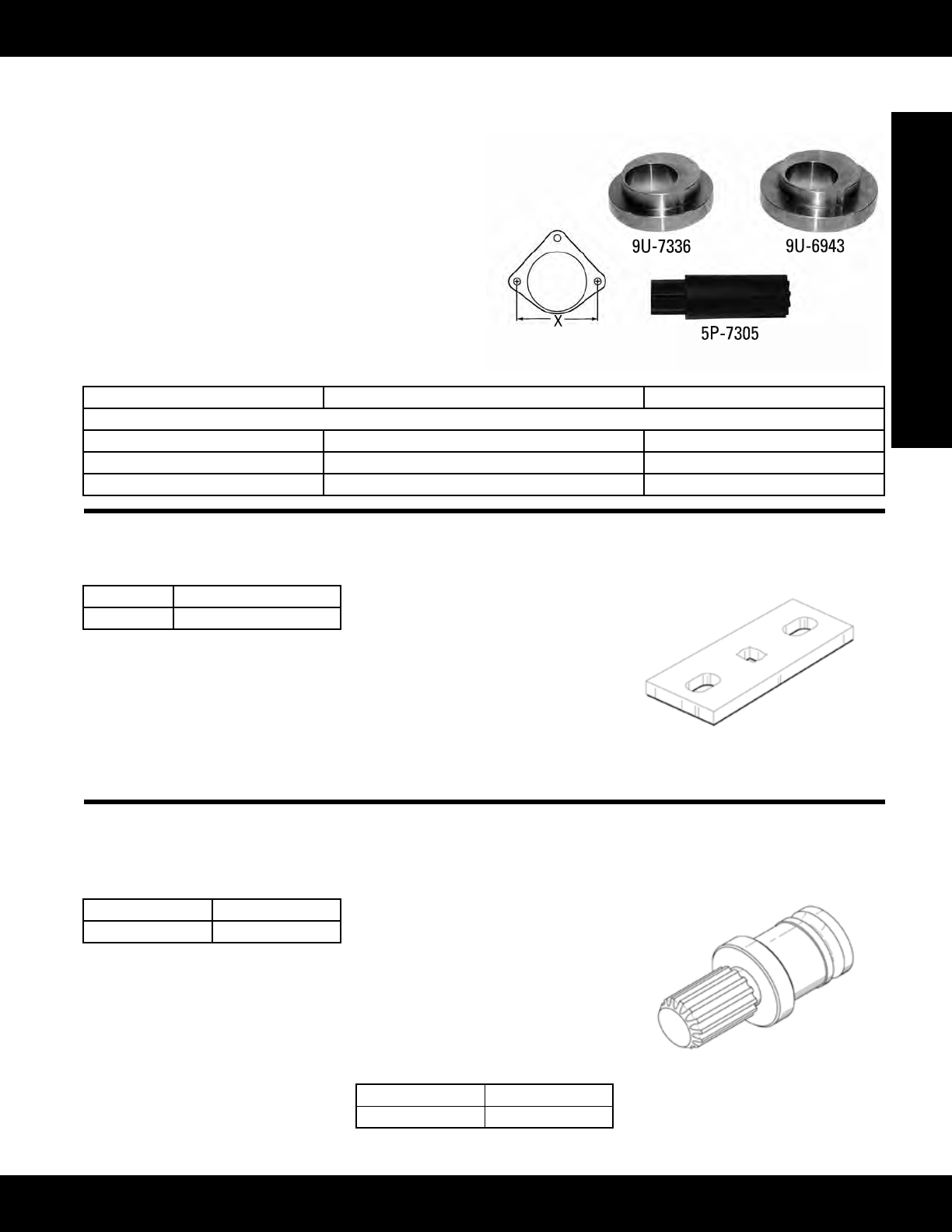

Engine Tools
Fuel System Repair and Adjust
Tools for Rotating Crankshaft (Continued)
Model: 3114, 3116 and 3126 Engines
Warranty: Six Months
Part Number Description Size
Measure dimension X on starter housing to determine which part to use
9U-6943 Shaft Housing Assembly 146 mm (5.75 in)
9U-7336 Shaft Housing Assembly 127 mm (5.00 in)
5P-7305 Engine Turning Gear 6/8 and 8/10 pitch
9U-6198 Crankshaft Turning Tool
Model: 3054 and 3056 Engines
Warranty: Six Months
• Used to rotate crankshafts (con-
nects directly to front of crank-
shafts)
• Has1/2inchdriveincentertocon-
nect ratchet or breaker bar
• Dimensions: 50 x 140 mm (2.0 x 5.5
in)
Reference
SENR5555,ServiceManual
Part Number Description
9U-6198 Crankshaft Turning Tool
208-0888 Engine Turning Tool
Essential Tool
Model: 3176C and C-9 Engines
Warranty: Six Months
• Used to turn crankshaft in engines
withrearPTOywheelhousing
(engages forward spline of upper
PTO gear)
• Used in applications where no
ywheelturningtoolaccessis
provided
• Heat-treated for added durability
• Toinstall:removecoverplateor
hydraulic pump as needed
Squaredrive 3/4 in
Spline 14-tooth
Part Number Description
208-0888 Engine Turning Tool
