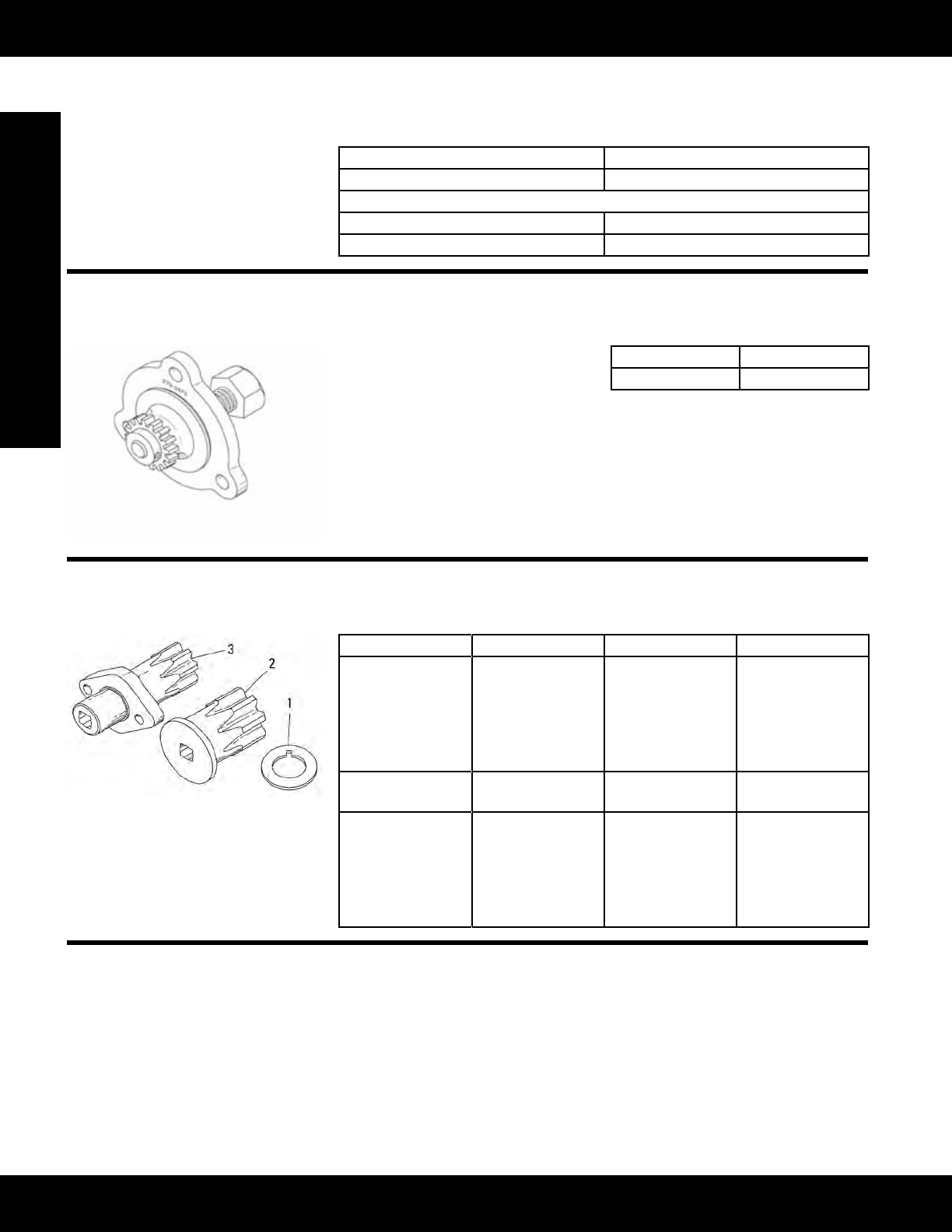

Caterpillar Engine Tools Cat Overhaul 3512 Page 252

Operation and Maintenance Manual
2595495
2595527
2595544
2595565
3-252
Engine Tools
Fuel System Repair and Adjust
329-3831 Barring Group (Continued)
Model: 3500, 3600, and C175 Engines
Warranty: Six Months
Part Number Description
329-3831 Barring Group
Service/Repair Parts
328-2307 Mufer
334-3258 ServiceKit
279-3473 Barring Device
Model: C175 Engines
Warranty: Six Months
• Used to manually rotate crankshaft
on C175 Engine
• Used with M34 Socket
• Bolts to starter access hole in
ywheelhousing
Part Number Description
279-3473 BarringDevice
Tools for Rotating Crankshaft
Model: C15, C16, 3400, 3508, 3512 Engines and 5.4 inch Bore Engine
Warranty: Six Months
Item Part Number Description Use
1 9S-9114 Spacer Position 1P-7410
Timing Plate on dis-
continued 8S-2346
Shaft Assembly
when setting lifters
off engine
2 9S-9082 Turning Tool, 1/2 in
drive
Rotate crankshaft
3 238-9586 Turning Tool, 1/2 in
drive
Contains internal
needlebearings;
boltstoywheel
housing for easier
rotation of crank-
shaft
Tools for Rotating Crankshaft
Model: 3114, 3116 and 3126 Engines
Warranty: Six Months
• Usedtorotatecrankshaft(makessettingvalvesandenginetimingprocedureseasier)
• Usedwith5P-7305EngineTurningGearand1/2inchsquaredriveratchet
• Fastens to starter mounting hole using starter mounting bolts
• Rotategearshafthousingassemblyuntil5P-7305EngineTurningGearengagesywheelgearbeforetighteningstarter
mounting bolts
(Continued)
