Caterpillar Engine Tools Cat Overhaul 3512 Page 171

Operation and Maintenance Manual

Page of 420

/ 420

3038281

2593143

2593160

3-171

Engine Tools

Electrical and Ignition Tools

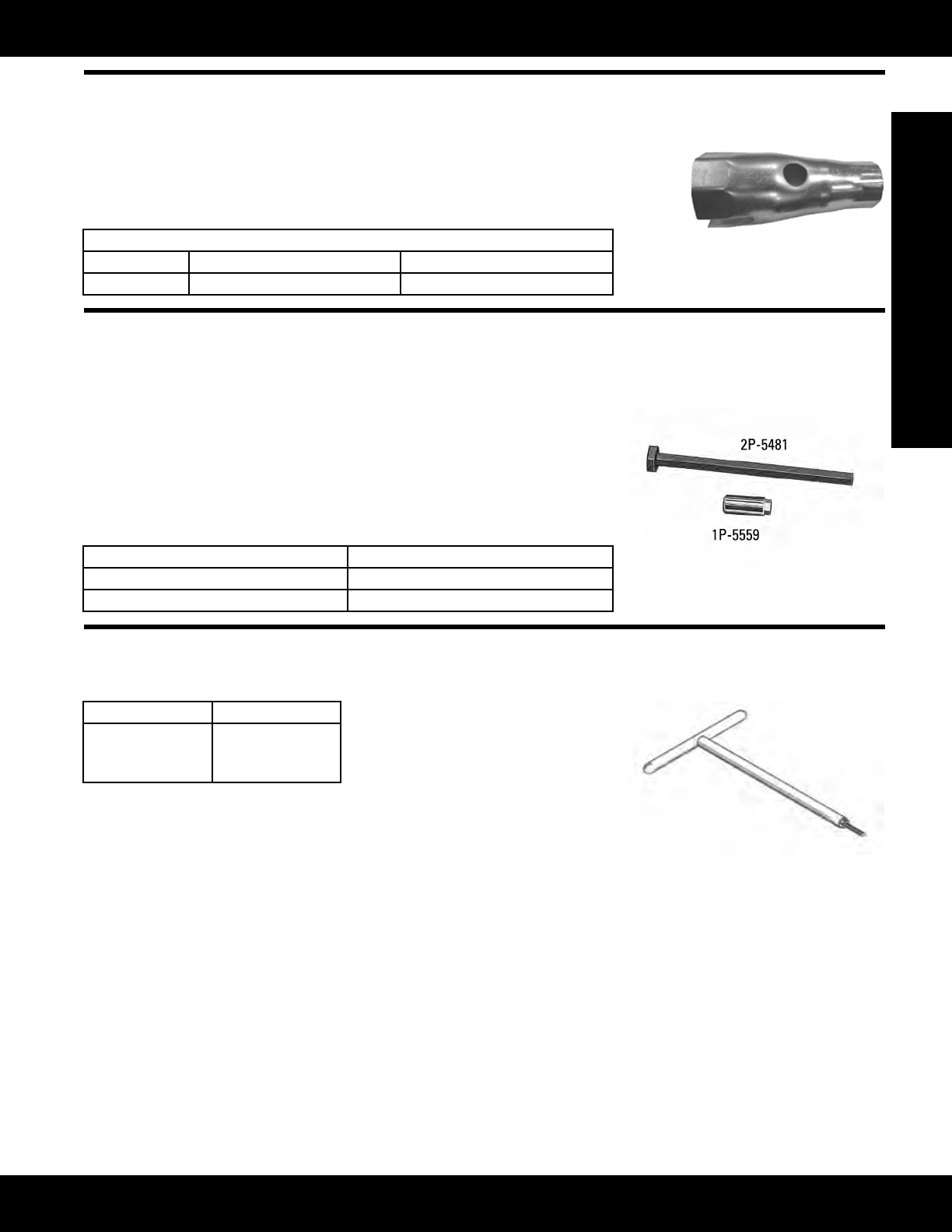

398-6915 Mounting Ring Socket Wrench

Model Usage: Various

Warranty: Manufacturer’s

• Used to tighten retaining nut on Emergency Stop Push Button assembly 109-

6507 with 124-3176 Guard

• Double ended wrench can be used for 18 mm (.71 in) and 30 mm (1.2 in) pilot

light mounting rings

Specications

Part Number Description Dimensions

398-6915 Mounting Ring Socket Wrench 101.6 x 35.3 mm (4.0 x 1.4 in)

1P-5559 Spark Plug Adapter Wrench

2P-5481 Spark Plug Wrench

Model: 5.4 inch Bore Natural Gas Engines

Warranty: Six Months

• Usedtoremovesparkplugsandadapterson137.2mm(5.4in)BoreNaturalGas

Engines (G342, G353, G379, G398)

• Especially useful because plugs and adapters are deeply recessed in top of

engine

• 1P-5559 Wrench:

Large end: 31.75 mm (1.25 in)

Small end: 19.05 mm (0.75 in)

Part Number Description

2P-5481 Spark Plug Wrench

1P-5559 Spark Plug Adapter Wrench

176-7129 Terminal Removal and Installation Tool Assembly

Model: All G3500 Non-CSA Electronic Ignition Engines

Warranty: Six Months

• Usedtoremoveandinstall169-4290

Terminalwithoutremoving169-4295

Extension

• Savestimeandmoney

• Threads easily into terminal

• Design permits quick replacement

if shaft [127 mm (5 in) long] breaks

duringservice

• Forremoval:1)insertshaftthrough

springandthreadthreerevolutions

intoterminal;2)pullterminalout

• For installation: 1) screw terminal

ontoshaft;2)insertthroughexten-

sion;3)snapontotransformerhead;

4) loosen shaft from terminal

Part Number Description

176-7129 TerminalRemoval

and Installation

Tool Assembly
