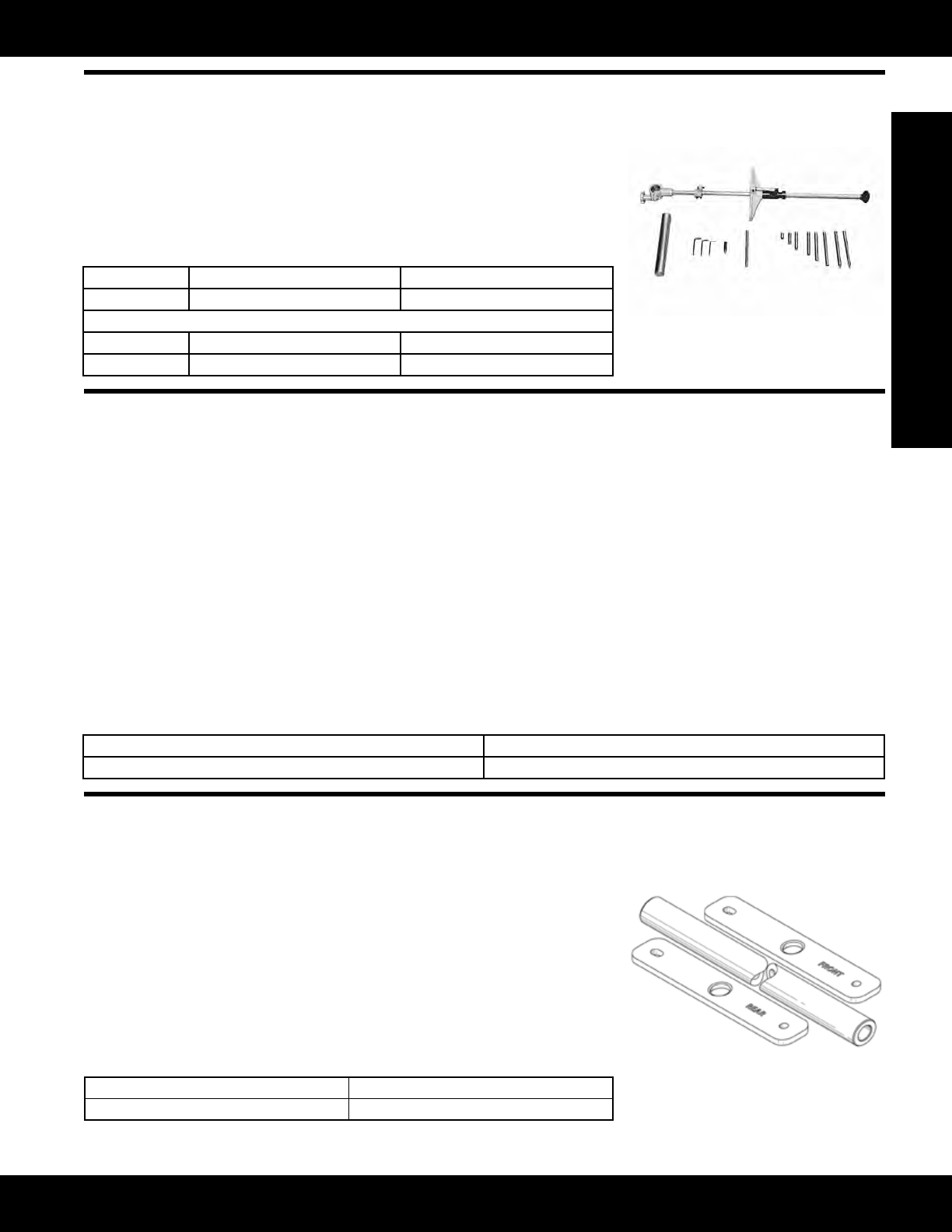

Caterpillar Engine Tools Cat Overhaul 3512 Page 89

Operation and Maintenance Manual
2589542
2589561
2589590
3-89
Engine Tools
Cylinder Block and Liners
6V-7840 Deck Checking Tool Assembly
Model: 518
Warranty: Six Months
• Providesveryaccuratemeasurements,whicharecomparedtoblockspecica-
tions, to determine how much of top surface of cylinder block has been ma-
chined (when an engine is reconditioned, it is important to know if top deck has
beenpreviouslymachined)
Reference
SEHS8187, Special Instruction
Part Number Description Size
6V-7840 Deck Checking Tool Assembly --
Service / Repair Parts
4B-9820 Wrench 1/8 in
6B-7225 Wrench, 3/16 in Hex 3/16 in Hex
362-4253 Depth Micrometer Kit
Model: 3400, C15, C-15, C-16, C18, C27, and C32 Engines
Warranty: Six Months
• Usedtomeasuredeckheightonspecicengines
• Used with 362-4250 Tool Kit (Deck Height Measuring Tool)
• 600 mm (24 in) depth micrometer is ideal for measuring large parts
• Includes400mm(16in)moveablebridgeattachment
• Precisioninstrumentwithresolutionof0.01mm(.0005in)providesaccuratedeckheightmeasurements
• MODEandSETbuttonscontrolarangeoffunctionsincludingOn/Off,Preset/Hold,Absolute/Relative,andInch/Metric
displays
• One CR2032 lithium battery supplies power for a year or more of normal use
• Kitincludeswoodencasewithprovisionsforstoringdepthgaugeandmoveablebridgeattachment
• Includes supplier operating manual
References
NEHS1102 Tool Operating Manual
SEBF9213,MeasuringtheDistancetotheTopDeckofC15,C-15,C-16,C18,3400,C27,andC32Engines,ReuseandSalvageGuide-
lines
Part Number Description
362-4253 Depth Gauge
362-4250 Tool Kit (Deck Height Measuring Tool)
Essential Tool
Model: C15, C-15, C16, C-16, C18, C-18, 3400, C27 and C32
Warranty: Six Months
• Used to measure deck height on both V-style and inline engines
• Used with 362-4253 Gauge Kit (order separately)
• Endplatesaremarkedforeasyidentication
• Toolissetupthesamewayeachtimetoreducevariation,whichcancause
inaccurate measurements
• For durability, end plates are black oxide coated, and tube is chrome plated
References
NEHS1102, Tool Operating Manual
SEBF9213, Measuring the distance to the top deck of C15, C-15, C-16, C18, 3400, C27,
and C32 Engines
End plates 3.17 kg (7.0 lb) each
Tube 7.03 kg (15.6 lb)
(Continued)
