3-142

Engine Tools

Cylinder Head, Valves and Cam Followers

Lifting Bracket Assemblies (Continued)

Model: 3406E Engines and C11/13 Engines

Warranty: Six Months

Part Number Description Model

124-2946 Lifting Bracket Assembly 3406E Rocker Arm

293-2989 Lifting Bracket Assembly C11/13 Rocker Arm

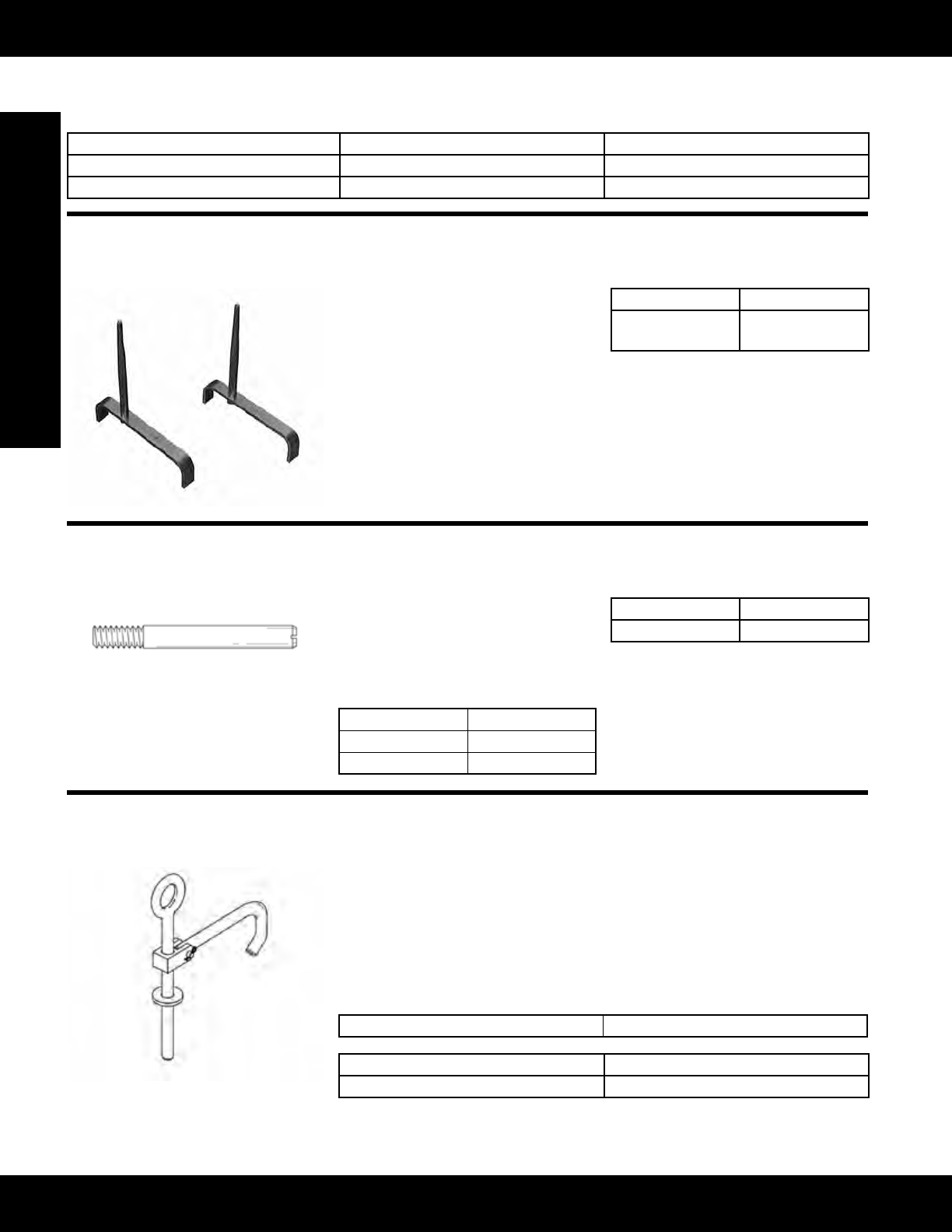

8S-6691 Cylinder Head Stand Group

Model: 3100 and 3208

Warranty: Six Months

• Providesimpleheadsupportand

clearance between head and work

benchwhenserviceworkrequired

on cylinder heads

• 2 stands included in group

Part Number Description

8S-6691 Cylinder Head

Stand Group

9U-6238 Guide Bolt

Model: 3054 and 3056 Engines

Warranty: Six Months

• Used to align cylinder head with

block during installation (2 bolts

required)

• Screwdriverslotusedtoeasily

installandremovetheguidebolt

• Zinccoatedtopreventcorrosion

Overalllength 127.0 mm (5.0 in)

Diameter 12.7 mm (0.5 in)

Thread 1/2 - 20 2A

Part Number Description

9U-6238 Guide Bolt

185-5321 Cylinder Head Lifting Hook Assembly

Model: 3114, 3116, 3126, 3300, and 3400 (except 3126B and 3406E) Engines

Warranty: Six Months

• Used to quickly and safely lift cylinder head core

• Designed for bare cylinder head “Core” handling only and not as an engine as-

sembly tool

• Reduces potential injuries from manually handling cylinder head castings

• Easily attaches to core without bolts

• Straightleginsertsintomiddleboltholeofcylinderheadandhookedlegtsinto

breather opening on 3114, 3116, 3126 MUI/HEUI Engines or into exhaust port on

3300, 3406, 3408, and 3412 Engines

Maximum lifting capacity 340 kg (750 lb)

Part Number Description

185-5321 Cylinder Head Lifting Hook Assembly
