3-78

Engine Tools

Cylinder Block and Liners

9U-6274 Compression Test Kit (Continued)

Model: 3046, 3054, 3056, 3064, and 3066 Engines

Warranty: Six Months

Item Part No. Description

Not Shown

-- 9U-6385 Foam Block

Part of Cylinder Pressure Group (Gas Engines)

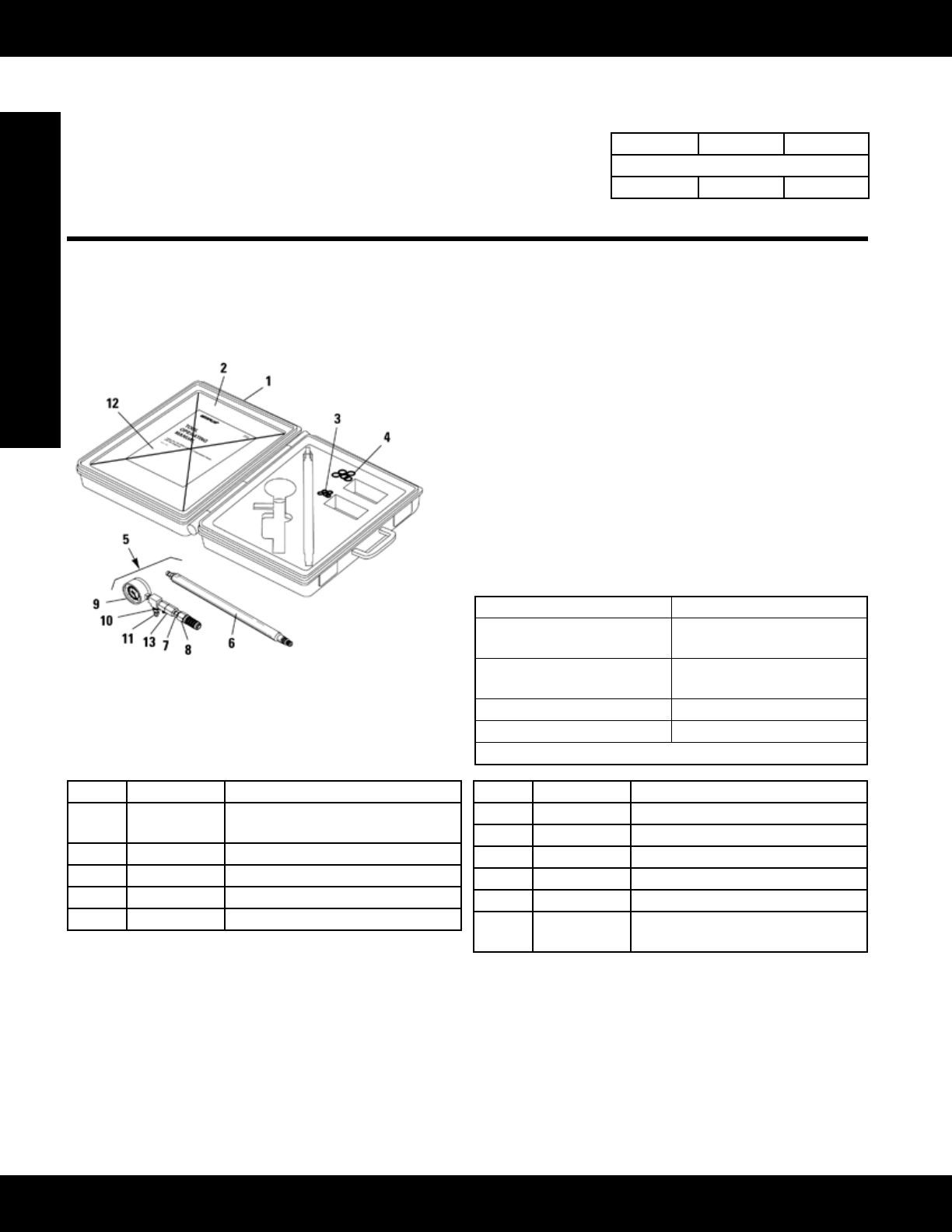

193-5859 Cylinder Pressure Tool Kit (Gas Engines)

Essential Tool

Model: G3300, G3400, G3500, and G3600 Engines

Warranty: Six Months

• Used to check cylinder compression

• Lowcompressionreadingcanbeindicationofvalve

guttering,brokenvalves,brokenorwornpistonrings,or

worn cylinder liners

• Quick way to check for potential engine wear

• Can obtain compression pressure to compare with other

cylinders and pressure ratio chart

• 8T-0855 Gauge holds pressure reading until bleed-off

valveisreleased

• Includes easy to use instructions

• Pressure range: 0 to 4000 kPa (0 to 680 psi)

Reference

NEHS0798, Tool Operating Manual, Using the 193-5859 Cylinder

Pressure Tool Kit (All Gas Engines)

Item Description

5 Cylinder Pressure Group (Gas

Engines)

12 NEHS0798 Tool Operating

Manual

13 CheckValve¹

Not Shown NEEG2911 Decal

¹ Part of Cylinder Pressure Group (Gas Engines)

Item Part Number Description

1 6V-3072 Case - Plastic, NEEG2574 Group De-

cal on lid (9U-7402 Group)

2 6V-6126 Holder Block (Foam)

3 8L-2786 O-ring (Brown)

4 8M-5127 O-ring (Yellow)

6 192-7130 Adapter Group

Item Part Number Description

7 5P-8998 Nipple - Pipe

8 6V-4144 Coupler Assembly (For 42000 kPa)

9 8T-0855 Gauge - Pressure

10 4M-5317 Pipe Reducing Bushing

11 9U-6387 BleedValve

-- 193-5859 Cylinder Pressure Tool Kit (Gas

Engines)

Part of Cylinder Pressure Group (Gas Engines)
