Caterpillar Engine Tools Cat Overhaul 3512 Page 357

Operation and Maintenance Manual
2599584
3-357
Engine Tools
Engine Lifting and Positioning

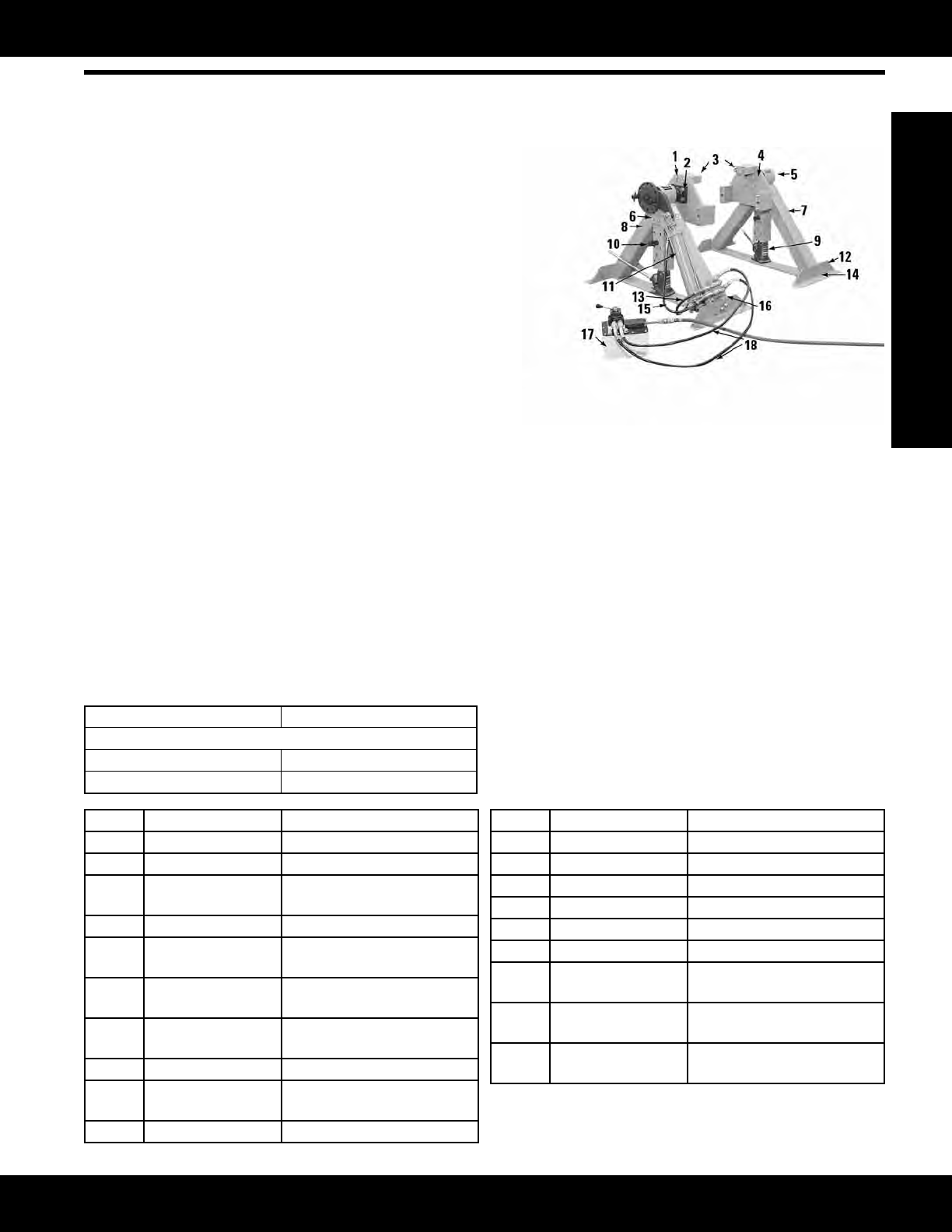

4C-9832 Large Engine Roll-Over Stand
Model: 3508, 3512 and 3516 Engines
Warranty: Six Months
• Used for disassembly and assembly of 3508, 3512 and 3516
Engines
• Self-contained hydraulic system
• Air-drivenhydraulicpumpandhosesincluded
• Protectivevalvearrangementforpositiverotational
control
• Portable—heaviestcomponent86.18kg(190lb)
• Does not need permanent mounting
• Does not need electrical power
• Enhances safety of large engine repair
• Minimizesenginehandlingtime—improvesworkef-
ciency
• Adaptable for on-site marine engine repair
• Stand-to-engine mounting bolts and brackets for 3500
Engines included
• Enginecanbepositionedverticallyinanyof4positionsby
onepersonwithouttheneedofoverheadliftingequipment
• Complete 360° rotation of engine
• Eachfullcylinderstrokeprovides90°ofenginerotation
• Pivotlockpinprovidespositiveanti-rotationallocking
every30°
• Bolt-on feet allow engine stand members to stand alone
during installation or storage
• Low enough to be installed on engine resting on its oil pan
onoor
• Additional brackets for other engines and off-highway
front struts planned for the future
• Two 12-ton jacks included
Reference
NEHS0566, Tool Operating Manual
Capacity 9072 kg (20,000 lb)
Item Description
Not Shown, Sold Separately) NEEG2004, Decal
Item Part Number Description
9.0 1U-9754 Hydraulic Jack, 12 ton
-- 4C-9832 LargeEngineRoll-OverStand
14.0 5P-2228 Bolt, 1/2 in - 13 thd x 25.4 mm
(1.0 in)
4.0 6V-8182 Full Nut, 3/4 in - 10 thd
1.0 7X-0341 Bolt, 1/2 in - 13 thd x 177.8 mm
(7 in)
2.0 8C-6857 Bolt, 3/4 in - 10 x 69.8 mm (2
3/4 in)
6.0 8T-9313 Bolt, 3/4 in - 10 thd x 177.8 mm
(7 in)
7.0 9U-5753 OutboardFrame(notserviced)
8.0 9U-5754 Cylinder End Frame (not
serviced)
5.0 9U-5755 Outboard Tube Weldment
Item Part Number Description
11.0 9U-5760 Hydraulic Cylinder
3.0 9U-5770 Mounting Bracket, 3500
12.0 9U-5772 Foot(notserviced)
16.0 9U-5773 CounterbalanceValve
17.0 9U-5774 Air/Hydraulic Pump
10.0 9U-5775 Pin Assembly
18.0 9U-5778 Hydraulic Hose, 1828.8 mm
(72.0 in)
13.0 9U-5779 Hydraulic Hose, 609.8 mm
(24.0 in)
15.0 9U-5780 Hydraulic Hose, 990.6 mm
(39.0 in)
(Continued)
