Caterpillar Engine Tools Cat Overhaul 3512 Page 220

Operation and Maintenance Manual
2646079
2646086
2646133
3-220

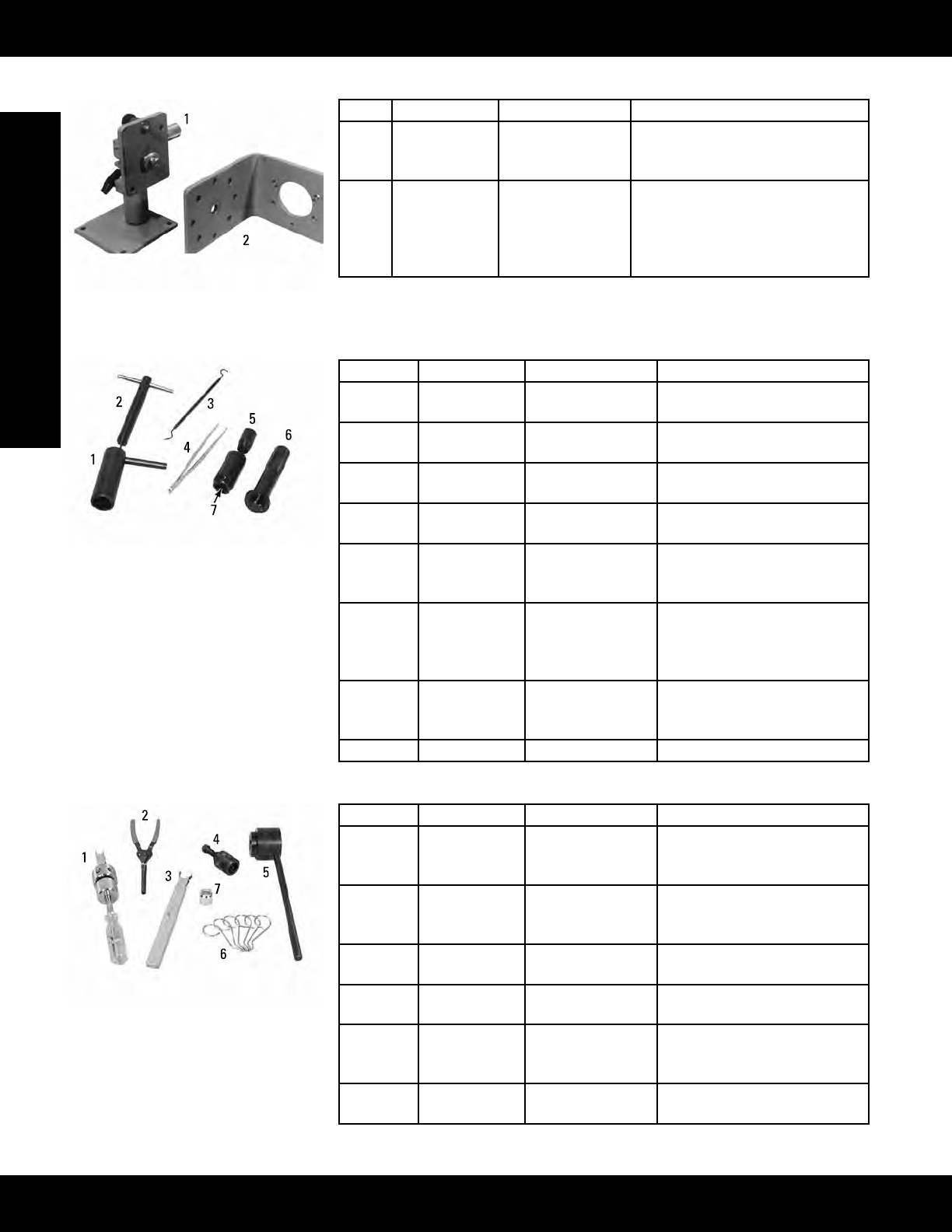

Engine Tools
Fuel System Test Tools
Fixture Group / Mounting Plate
Item Part Number Description Use
1 4C-5602 Fixture Group
1
hold pump in any position for ease of
repair (can greatly increase mechan-
ic’sefciencyduringoverhaul)
2 4C-5603 Mounting Plate bolts to fuel injection pump and
attachesto4C-5602FixtureGroup;
allows attachment of Nippondenso,
Zexel, and Stanadyne pump, all to
the same plate
1
Includes support assembly, 4C-5712 Base Assembly, 4C-5715 Bushing, and lock pin assembly
Assemble Tools for Zexel and Nippondenso Fuel Pump
Item Part Number Description Use
1 4C-5567 Torque Adjusting
Socket
removeandadjusttorquecon-
trol spring
2 126-2370 Wrench (3046 only) removeandadjusttorquecon-
trol spring
2 4C-5085 Wrench (3064 and
3066 only)
removeandadjusttorquecon-
trol spring
3 5P-1720 Seal Pick removeshimsunderplunger
springs
4 4C-6605 Tweezers removeandinstalldeliveryvalve
(care must be taken not to dam-
age this part)
5 4C-5574 Seal Protector Protects seal face during front
coverinstallation(sealscanbe
damaged by camshaft keyway
slot, if not protected)
6 4C-4025 Bearing Installer install bearing on camshaft (re-
duces bearing damage and part
replacement cost)
7 4C-4098 Seal Installer installsealsinfrontpumpcover
Disassemble Tools for Zexel and Nippondenso Fuel Pump
Item Part Number Description Use
1 4C-5601 Plunger Compres-
sor
compresses plunger spring and
roller so plunger holders can be
installedandremoved
2 4C-6381 Lower Plier designed to reach through pump
caseandremove/installplung-
ers
3 4C-6597 Plunger Holder hold plungers off camshaft so it
canberemovedorinstalled
4 4C-5580 Pulling Adapter removes4C-4024Camshaft
Holder from camshaft
5 4C-4024 Camshaft Holder holdcamshaftwhileremoving
and installing retaining nut that
holdsyweightstocamshaft
6 4C-6380 Plunger Holder makesremovalandinstallation
of roller much easier
(Continued)
