3-124

Engine Tools

Cylinder Head, Valves and Cam Followers

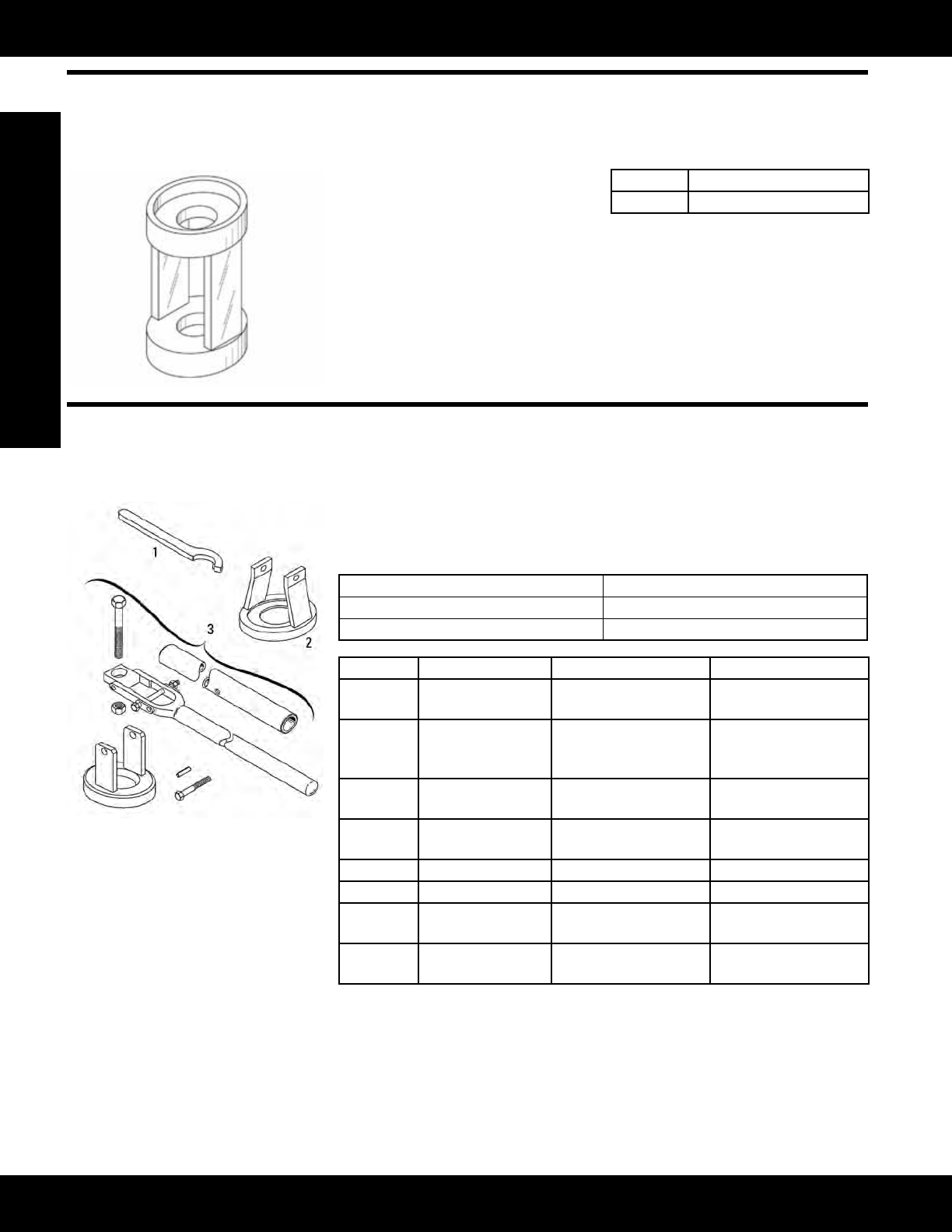

276-1221 Valve Spring Assembly

Essential Tool

Model: C6.6 Engines

Warranty: Six Months

• Usedtoremovevalvespringwithout

removingcylinderhead

• Usedwith9U-6195ValveSpring

Compressor Group

Part No. Description

276-1221 ValveSpringAssembly

8T-2660 Compressor Group

Essential Tool

Model: All 3600 Diesel Engines

Warranty: Six Months

• Usedtoremoveandinstallvalvesprings,pluspreventsdamagetothevalve

rotator

• SpringremovalfromHFOenginesrequire8T-2660alongwith167-3972Spanner

Wrench and 167-3974 Mounting Cap Assembly

Item Description

3 Extension Handle

3 LeverGroup

Item Part Number Description Size

1 167-3972 Spanner Wrench (HFO

Only) (not included)

2 167-3974 Mounting Cap As-

sembly (HFO Only) (not

included)

3 2A-4781 Bolt 1/4-20 x 69.9 mm (2.75

in) long

3 8F-6350 Bolt 3/8-16 x 203 mm (8.0 in)

long

3 8T-2660 Compressor Group --

3 9S-8752 Nut - Full (3/8 - 16) 3/8-16

3 8T-2661 Spring Compressor

Adapter

3 6H-3956 Spring Pin 4.76 x 25.4 mm (0.187 x

1.0 in) long
