Caterpillar Engine Tools Cat Overhaul 3512 Page 396

Operation and Maintenance Manual
2669127
2669168
2669196
2669217
3-396
Engine Tools
3600 Engine Tools

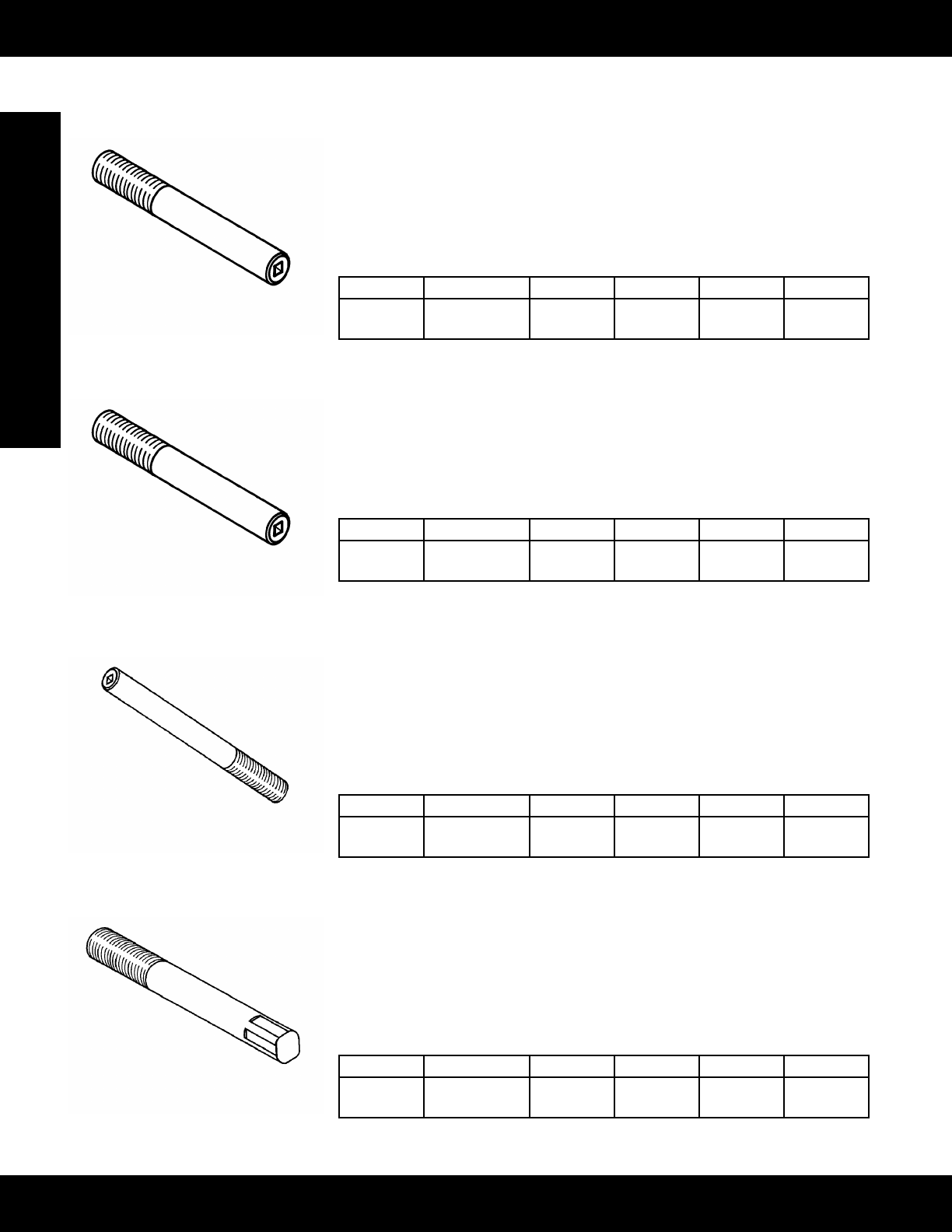

Vibration Damper and Flywheel
4C-9426 Damper Guide Pin (Part of 9U-5105 Group)
Model: 3600 Engines
• Usedtoalignandsupportvibrationdamperduringassemblyanddisassemblyof
3606, 3608, and 3612 Engines (2 required)
• 1/2inchsquaredrivesocketforeasyinstallationandremoval
References
SENR3594,ServiceManualModuleofSENR3590ServiceManual
SENR3600,ServiceManualModuleofSENR3595ServiceManual
SENR4259,ServiceManualModuleofSENR4255ServiceManual
Part No. Description Diameter Length Thread Weight
4C-9426 Damper Guide
Pin
25 mm (1 in) 15.2 cm (6.0
in)
1 - 14 thd 0.6 kg (1.3
lb)
1U-9393 Damper Guide Pin (Part of 9U-5105 Group)
Model: 3600 Engines
• Usedtoalignandsupportsinglevibrationdampers(2required)
• 1/2inchsquaredrivesocketforeasyinstallationandremoval
References
SENR3594,ServiceManualModuleofSENR3590ServiceManual
SENR3600,ServiceManualModuleofSENR3595ServiceManual
SENR4259,ServiceManualModuleofSENR4255ServiceManual
Part No. Description Diameter Length Thread Weight
1U-9393 Damper Guide
Pin
25 mm (1 in) 15.2 cm (6.0
in)
1 - 8 thd 0.6 kg (1.3
lb)
1U-9392 Damper Guide Pin (Part of 9U-5105 Group)
Model: 3600 Engines
• Usedtoalignandsupportoutervibrationdamperofdualvibrationdampers(2
required)
• 1/2inchsquaredrivesocketforeasyinstallationandremoval
References
SENR3594,ServiceManualModuleofSENR3590ServiceManual
SENR3600,ServiceManualModuleofSENR3595ServiceManual
SENR4259,ServiceManualModuleofSENR4255ServiceManual
Part No. Description Diameter Length Thread Weight
1U-9392 Damper Guide
Pin
28.4 mm
(1.12 in)
25.4 cm (10.0
in)
1 1/8 - 8 thd 1.3 kg (2.9
lb)
8T-0914 Flywheel Guide Pin (Part of 9U-5105 Group)
Model: 3600 Engines
• Usedtoalignandsupportywheelandreargearsupportassemblyduring
installationandremoval(2required)
• 1/2inchexternalsquaredriveforeasyinstallationandremoval
References
SENR3594,ServiceManualModuleofSENR3590ServiceManual
SENR3600,ServiceManualModuleofSENR3595ServiceManual
SENR4259,ServiceManualModuleofSENR4255ServiceManual
Part No. Description Diameter Length Thread Weight
8T-0914 Flywheel Guide
Pin
28.4 mm
(1.12 in)
61 cm (24 in) 1 1/8 - 12 thd 3 kg (6 lb)
