Caterpillar Engine Tools Cat Overhaul 3512 Page 311

Operation and Maintenance Manual
2979162
2979325
2979351
3-311
Engine Tools
Fuel System Repair and Adjust

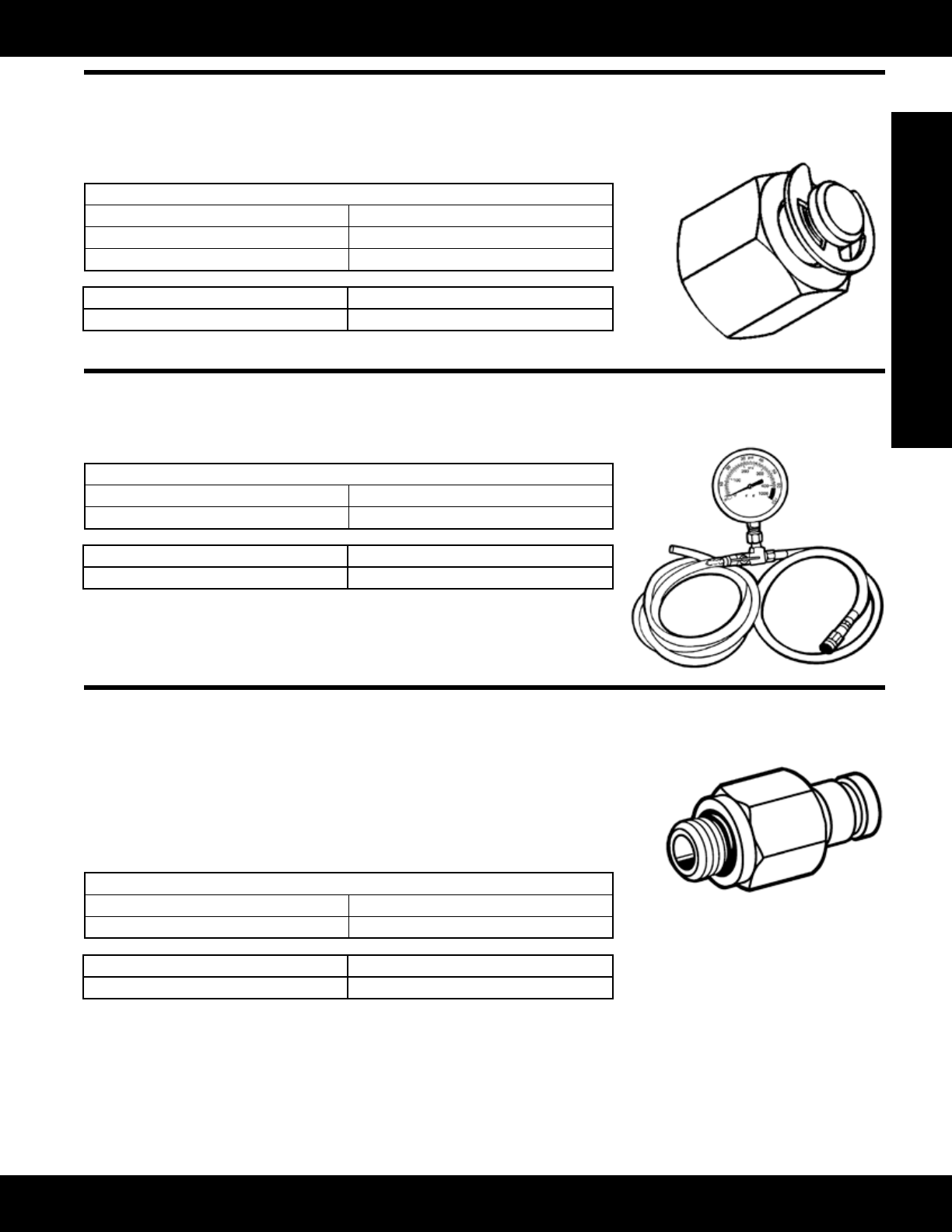

372-5215 High Pressure Rail Block off Plugs
Model Usage: CT660 Truck
Warranty: Manufacturer’s
• Used to test high pressure fuel system for leaks
• 6 pieces per set
Specications
Weight 0.14 lb per piece (0.90 lb complete set)
Size 1.15 x .875 in per piece
Material Steel
Part Number Description
372-5215 High Pressure Rail Block off Plugs
372-5239 Fuel Pressure Gauge
Model Usage: CT660 Truck
Warranty: Manufacturer’s
• Used to measure fuel pressure, take a fuel sample and check for aerated fuel.
Specications
Dimensions 228.6 x 162.6 x 50.8 mm (9.0 x 6.4 x 2.0 in)
Weight .48 kg (1.05 lb)
Part Number Description
372-5239 Fuel Pressure Gauge
372-5240 Fuel Test Fitting
Model Usage: CT660 Truck
Warranty: Manufacturer’s
• Usedtoconnectfuel/oilpressuretestcouplertofuelttingtomeasurefuel
pressure of fuel inlet restriction
–Whenmeasuringfuelinletrestriction,ttinginstalledatdiagnosticport
(inletside)oflterhousing
–Whenmeasuringfuelpressure,ttingcanbeinstalledinfuelrailinsteadof
Schradervalve
Specications
Dimensions 50.8 x 12.7 x 12.7 mm (2.0 x 0.5 x 0.5 in)
Weight .05 kg (.1 lb)
Part Number Description
372-5240 Fuel Test Fitting
