Engine Tools
Engine Test Tools

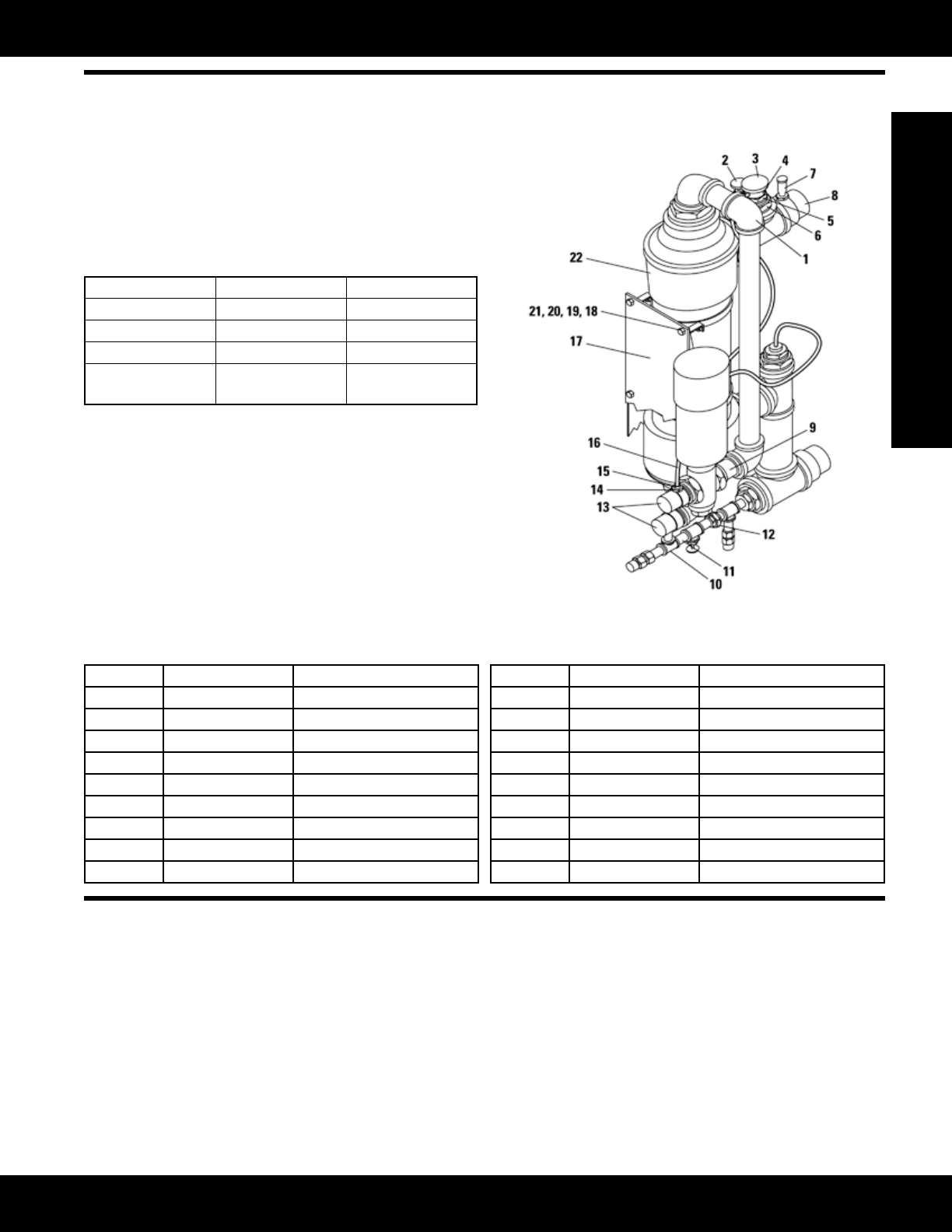

FT0790 Cooling Tower Group
Model: All Vehicle Engine Models
Warranty: None
• Efcient,economicalmeansforenginecoolingfordyna-
mometer installations
• ManypartsavailablefromPartsDepartment;somemust
bepurchasedlocally;BillofMaterialwhichincludes
somefabricateditemsgivenbelow;forcompletedetails
of construction, request drawings FT0790, FT0789, FT0788,
and FT0955
Item Part Number Description
8 FT-0955 Adapter
13 FT-0788 Adapter
17 FT-0789 Stand
22 7L489 Heat Exchanger
Assembly
Item Part Number Description
1 7B-7138 Street Elbow 90°
2 7B-9684 GlobeValve
3 2S-3080 Cap Assembly
4 3S-5546 Neck
5 2F-5277 Reducing Bushing
6 5L-6669 Reducing Bushing
7 7F-6785 Thermometer
9 3B-7296 Close Nipple (2 in NPT)
10 5B-8979 Tee
Item Part Number Description
11 3B-7866 Nipple
12 7B-9685 Pipe Union
14 8B-1931 Reducing Bushing
15 4S-8386 Copper Tubing
16 4S-8759 Vinyl Tube
18 0S-1621 Bolt
19 3B-4508 Lock Washer
20 1D-4719 Nut
21 4B-4280 Washer
Flywheel Adapters for Dynamometer Testing
Model: Most Vehicle Engine Models
Warranty: Six Months
• Adapters can be fabricated to mount entire line of Cat
®
engines to either Clayton or Taylor Dynamometers
