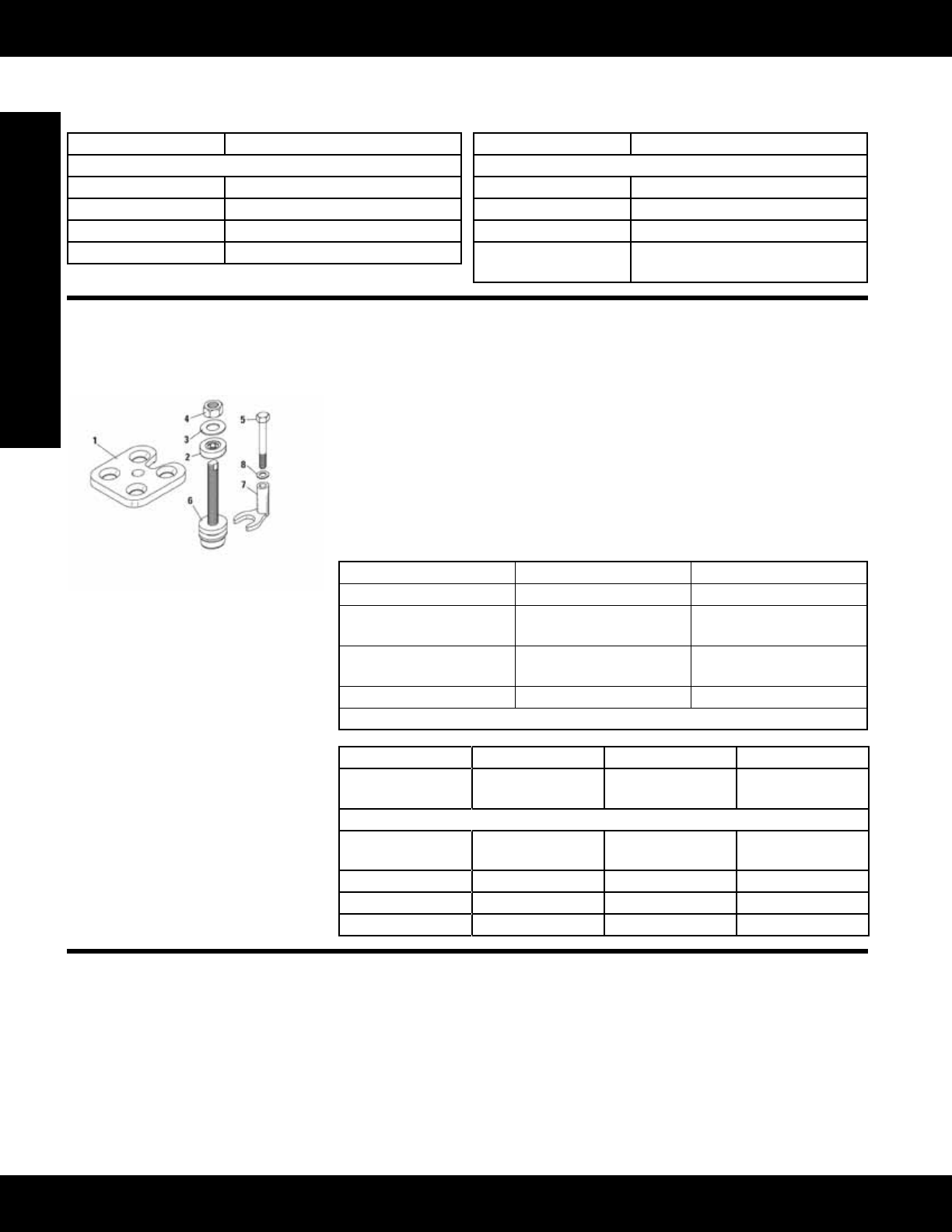

3-194

Engine Tools

Engine Test Tools

9U-7530 Tool Kit, 3406E Engine (Continued)

Model: 3406E, C-15, C-16

Warranty: Six Months

Part Number Description

Service/Repair Parts (Continued)

9U-7244 End Brush

9U-7237 Drill Extension

4C-5552 Large Bore Brush

7X-1715 Adapter Cable Assembly

Part Number Description

Service/Repair Parts (Continued)

7X-1403 Adapter Cable Assembly

7X-1686 Adapter Cable Assembly

7X-1695 Timing Probe Cable

175-3700 ConnectorServiceKit(lesscrimp

tool)

333-0758 Tool Group (Valve Spring Compressor)

Essential Tool

Model: C175 Engine

Warranty: Six Months

• Usedtocompressfourvalvespringstoremovevalvespringretainerlocks

• Allowsservicingofvalvesprings,valveseals,andvalves

• Can be used with cylinder head on or off-engine

• Savestime,especiallyforon-engineapplications

• Comescompletewithheavy-duty,foamlinedcarrycase(notshown)

• ToolrevisedtotTierIandTierIIcylinderheads

References

NEHS0954,ToolOperatingManual,333-0758ToolGroup(ValveSpringandInjector

Sleeve)forC175Engines

Item Description Quantity

1 Base Plate¹ 1

5 Driver(usedwithInjector

SleevePullerInstaller)¹

6 Spring Compressor Rod

Assembly¹

7 Yoke Retainer Assembly¹ 1

¹Notserviced

Item Part Number Description Quantity

-- 333-0758 ToolGroup(Valve

Spring Compressor)

Service/Repair Parts

2 8S-8287 Thrust Bearing As-

sembly

3 4M-6953 Hardened Washer 1

4 108-2079 Nut 1

8 5P-8245 Hard Washer 1

356-8752 G3600 Operator Tool Group

Model Usage: G3606 (3XF), G3608 (4WF), G3612 (1YG), G3616 (4CG)

Warranty: Six Months

• Aidsinprovidingdailyservicetoanengine

• May be used with 169-8373 Bottle Group

• Includespadofdatasheetstorecordallserviceinformation

• Helpstolubricatepivotjointsofwastegate,fuelmixingvalve,andchokelinkage

• Usedtoremovesparkplugsandchasethreads

• Helps to clean and gap spark plugs

(Continued)
