Caterpillar Engine Tools Cat Overhaul 3512 Page 283

Operation and Maintenance Manual
2596880
2596900
3-283
Engine Tools
Fuel System Repair and Adjust

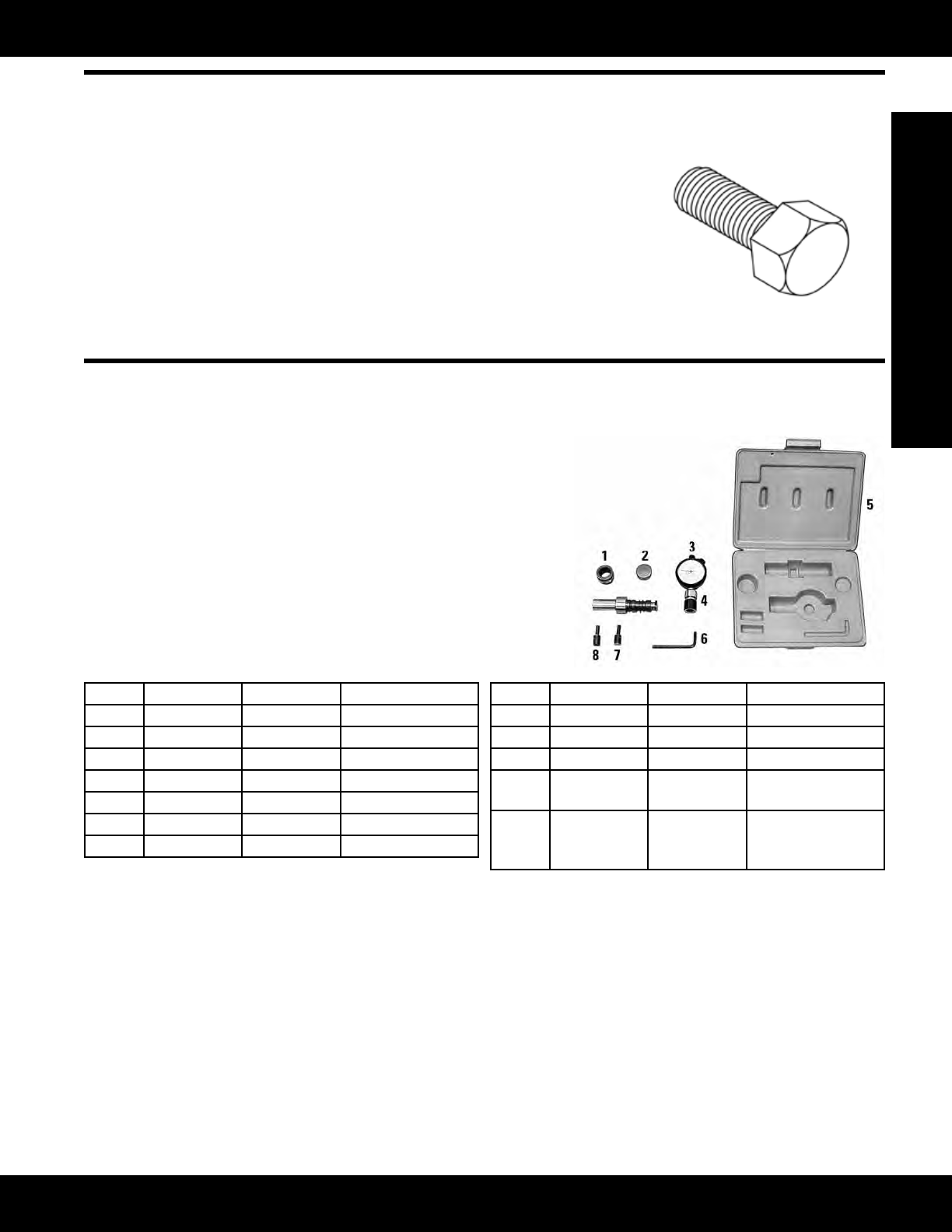

FT1632 Bolt
Model: D5B, D6D, D7G, 225B, 225B-3208, 3208, 518, 613C
Warranty: None
• Fabricatedbymodifying2H-3740Boltin5P-4203FieldServiceToolGroup
• Usedtoremove4N-2954Sleevemodicationpreventsdamagetothreads
3P-2200 Sleeve Metering Calibration Tool Group
Model: Cat
®
Engines
Warranty: Six Months
• Usedforcalibrating(similartoliftersetting)sleevemeter-
ing fuel pumps in shop
• Severaltoolsfrom5P-4203ToolGroupalsoneededforthis
operation
• Metrictools;valuesfortestingandadjustingaregivenin
metricterms,withexceptionoftorquevaluesandpres-
sures
Reference
SMHS6988, Special Instruction
Item Part Number Description Size
1 7W-8120 Bushing --
10
1
5P-6557 Spring --
2 1P-7379 Microgauge --
3 3P-1568 Indicator --
4 6V-3186 Collet --
4 6V-3185 Base --
5 5P-6510 Box Assembly --
Item Part Number Description Size
6 1S-9836 Wrench --
7 3P-1546 Pin 15.9410 mm (0.62 in)
8 3P-1545 Pin 17.3734 mm (0.68 in)
9 3P-1540 Pump Assem-
bly
--
-- 3P-2200 SleeveMeter-
ing Calibration
Tool Group
--
1
Part of pump assembly
