Caterpillar Engine Tools Cat Overhaul 3512 Page 150

Operation and Maintenance Manual
2592200
2592221
3-150
Engine Tools
Cylinder Head, Valves and Cam Followers

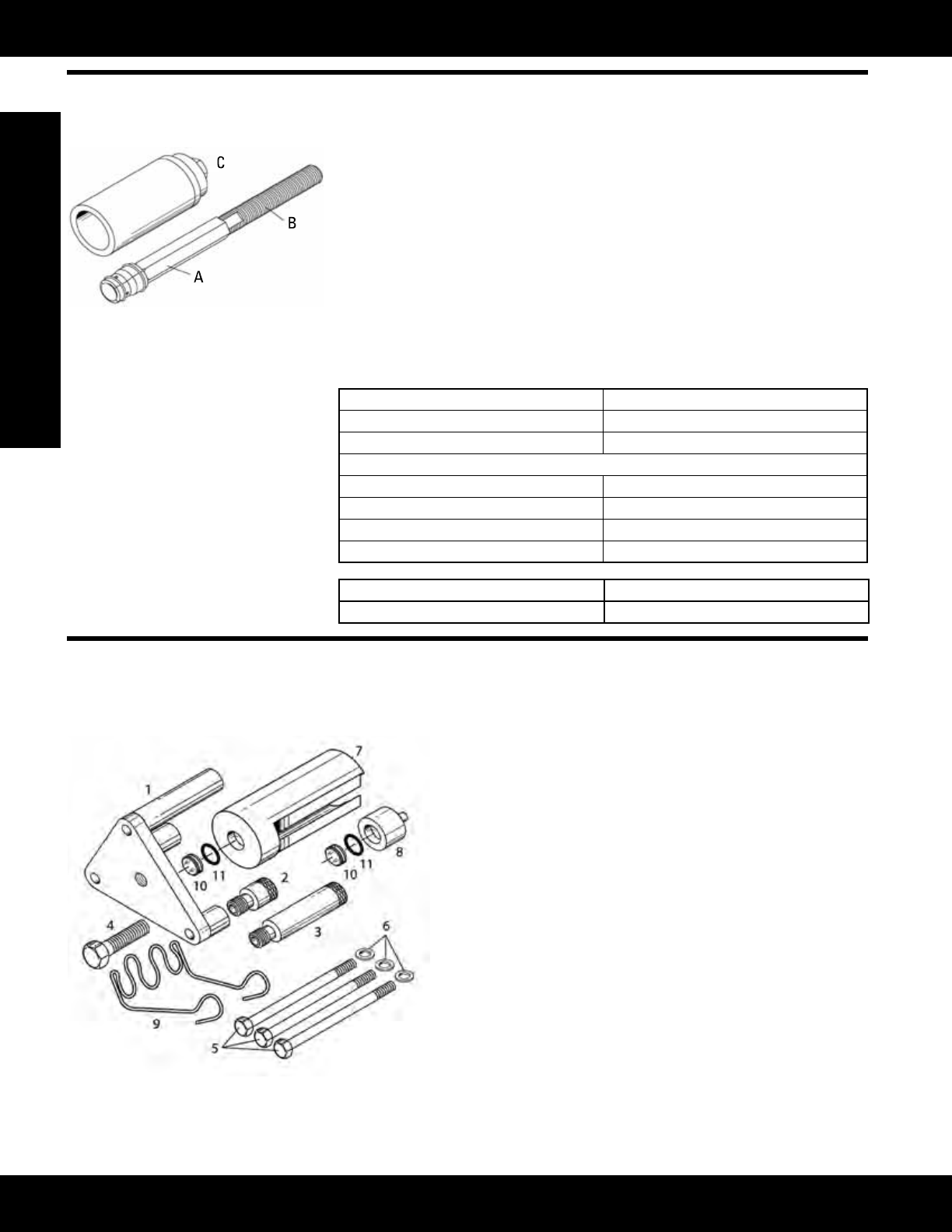

151-4832 Sleeve Remover Assembly
Model: 3126B HEUI Engines
Warranty: Six Months
• Usedtoeasilyremoveinjectorsleeves
• Designedfornon-groovedinjectorsleeves
• Includes 177-7804 Segment Collet
Application Procedure
1. Inserttoolfullyintoinjectorsleevebore.ExpandtoolbyturningpartAandpart
Binoppositedirections.Sharpsetscrewpointsshouldbiteintowallsofsleeve.
2. Install pulling bridge, thrust bearing, washer, and nut (item C, part of tool group).
Tightennutonpullerstudtoremovesleeve.
Reference
RENR1369,SpecialInstruction,UnitInjectorSleeves
NOTE:
Set screw points should protrude approximately 2.0 mm (0.08 in) from surface of pull-
ing tool collet.
Thread 3/4 - 10
Overallassembledlengthwithpuller 254 mm (10 in)
Points 141-4635 Set Screw
Item Description
A Expanding segment
B Threaded rod
C Puller components
Part Number Description
151-4832 SleeveRemoverAssembly
173-1530 Injector Seating Tool Group
Essential Tool
Model:3114,3116,3126MUIand3116,31262-ValveHEUIEngines
Warranty: Six Months
• Usedtoseatentireinjectorseatinglandintosleeve(elimi-
nates combustion gas leakage)
• Used with 9U-5019 Torque Wrench
• Truesupoutofroundinjectorsleevesthatcausecombus-
tion gas leakage
• Eliminatesneedtoreamnewlyinstalledsleeves
• Eliminates injector clamp bolt load relaxation
• Providesconsistentseatingforcefromcylindertocylin-
der using a simple forcing screw operation
• Workswithexistingsleeveremovalandinstallationtool-
ing
• Canbeusedinplaceof142-8279Plateusedforsleeve
removalformorecontroloflocation
• Forcing bridge mounts same as 142-8279 Plate
• Interchangeable legs work on bare head or with intake
manifold in place
Reference
NEHSO738, Using the 173-1530 Injector Seating Tool Group on
3114,3116,3126MUIand3116and31262-ValveHEUIEngines
(Continued)
