Caterpillar Engine Tools Cat Overhaul 3512 Page 233

Operation and Maintenance Manual
2594713
2646717
3-233
Engine Tools
Fuel System Test Tools

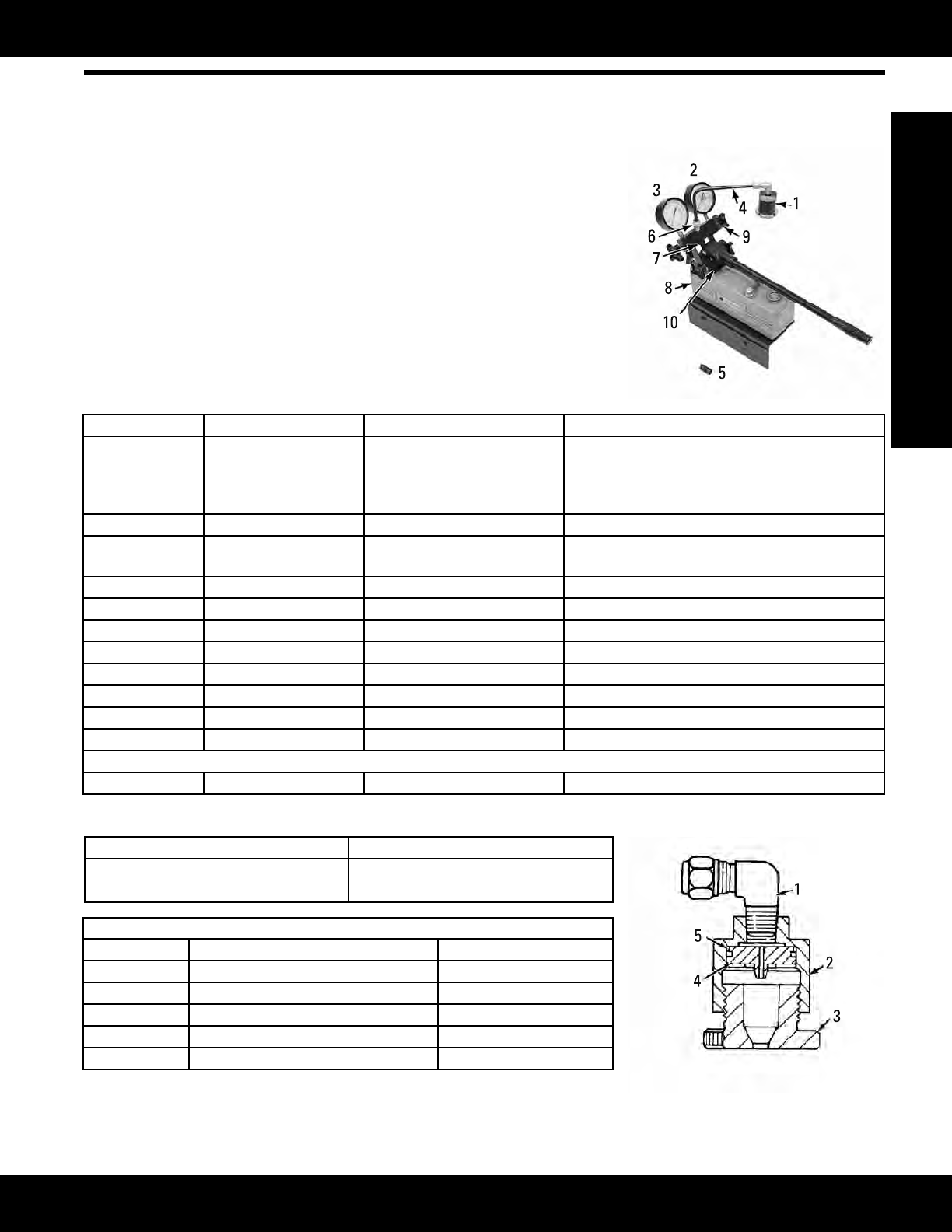

5P-4150 Nozzle Tester Group
Model: 1100, 3100, 3208, 3400
Warranty: Six Months
• Used to test all fuel nozzles, including pencil-type nozzles on 1100 and 3100 Se-
ries and 3208 Engines, direct injection capsule-type fuel nozzles on 3400 Series
Engines, and capsule-type nozzles used on all other engines
Reference
SEHS7292, Special Instruction
Item Part Number Description Notes
1 5P-8744 Adapter Assembly Ifdesired,quickdisconnectttingsmaybe
installedforfasterchangingofnozzleadapters;
refer to Engine News of October 3, 1979, for instal-
lation instructions
3 8T-0856 Gauge 6000 kPa (870 psi) SEHS7605 Caution Label
4 5P-4721 Tube Endttingsnotincluded;includedwith5P-4719
and 5P-4720
5 5P-4244 Adapter --
6 5P-4719 Fitting Includesconnectingttingfor5P-4721
7 5P-4243 Fitting --
8 8T-5313 Filter --
9 4J-7533 Seal oneoneachhandvalve,qty.5
10 6V-0183 Gasket betweenreservoirandpump
11 8T-0859 Gauge - Pressure 25000 kPa (3600 psi)
-- 5P-4150 Nozzle Tester Group --
Available separately (not shown)
-- 1U-9578 Repair Kit --
Service/Repair Parts for 5P-8744 Adapter Assembly (Sold Separately)
Item Description
2 Adapter
3 Retainer
Service/Repair Parts for 5P-8744 Adapter Assembly (Sold Separately)
Item Part Number Description
1 5P-4720 Fitting
1
2 5P-8741 Adapter
3 5P-8740 Retainer
4 5P-8742 Piston Assembly
5 2S-4663 Seal
1
Includesconnectingttingfor5P-4721
