3-205

Engine Tools

Fuel System Test Tools

Worldwide Compatibility (Continued)

Part Number Description

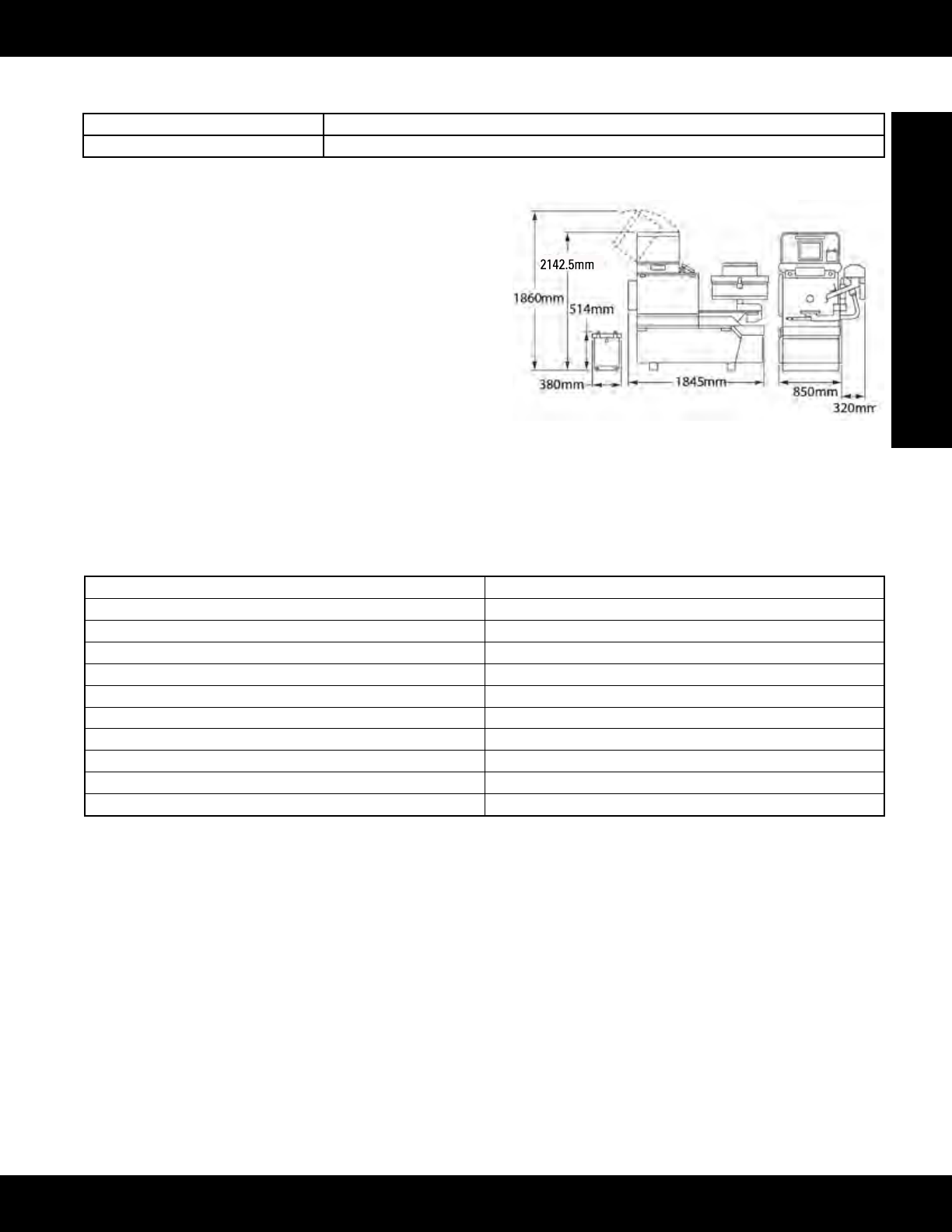

158-2262 AVM2-PCFuelInjectionEquipmentTestStand,380to480volt,50/60Hz,3-phase

Installation Requirements

These items are necessary for installation and must be or-

dered separately.

• 6V-6067 Calibration Fluid (208.5 L [55 gal]) or 6V-6068 Cali-

bration Fluid (19 L [5 gal])

• 10WEnginelubeoilpreferred;10W30isacceptable

• 380to480volt,50/60Hz,3-phase(45ampmaximum)

• 3 lpm (0.6 gpm) at 20° C (68° F) maximum temperature at

1.5 bar pressure

On-Site Startup and Commissioning

Aone-timeon-sitecommissioningandbasicbenchtrainingisincludedinthepriceofthebench.Thisserviceisprovidedby

Hartridge.

• Fuelinjectionpumpmountinganddrivehardwaremustbeorderedseparately(contactyourDealerServiceToolsDivision

representativefororderingassistance)

Specications

Case size 191 x 114 x 209 cm (75 x 45 x 81 in)

Gross weight 1170 kg (2580 lb)

Net weight 970 kg (2140 lb)

DC motor 14.9 kW (20 Hp) high torque

Flywheel 1.8 kgm² (43 ft-lb²)

Motor RPM 30 - 4000 RPM load compensating

Electrical supply For 20 Hp: 380 - 480 V, 3-phase (80 A max.)

Current amp requirementss 63A,but100Aserviceisrecommended

Transformer requirements 208-240V(45kva)unitsrequirea50-60Hz

Compressed air supply 6 bar (90 psi)

Water supply 3.0 lpm (0.06 gpm)
