Caterpillar Engine Tools Cat Overhaul 3512 Page 273

Operation and Maintenance Manual
2596407
2596429
2596453
3-273

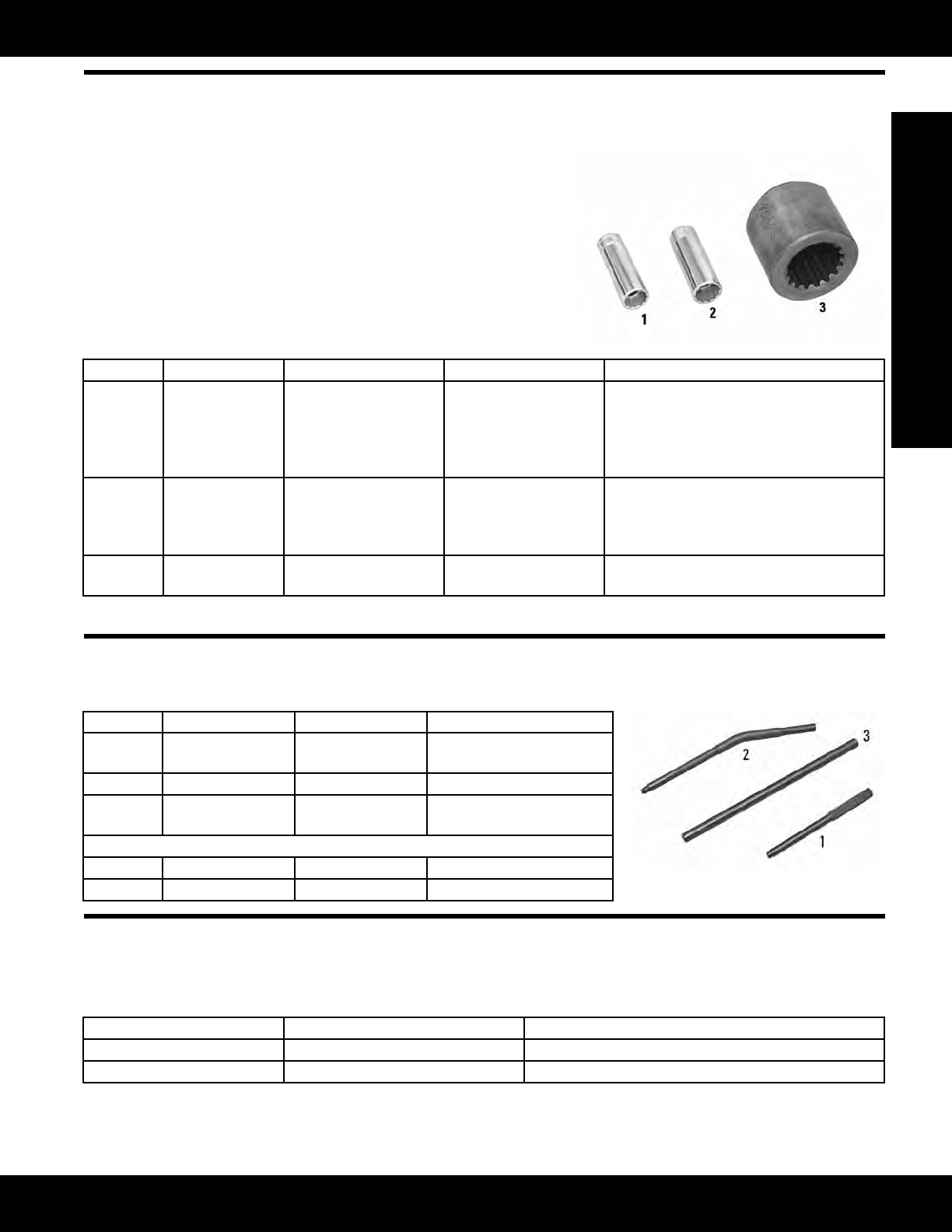

Engine Tools
Fuel System Repair and Adjust
Sockets for Special Applications
Model: 3208, 1100, D379, D398, D399
Warranty: Six Months
Item Part Number Description Size Use
1 9S-5031
1
Deep Well Socket 5/8in,3/8indrive Requiredfortachometerdriveadaptershaft
removalon1100and3100SeriesEngines
equippedwithhydraulicgovernors;also
usedforremovalandtighteningcapon9L-
6969 Nozzle for 3208 Engines
2 8S-2357 Deep Well Socket 9/16in,3/8indrive Required to loosen bolt which retains
automatictimingadvanceunittofuelinjec-
tion pump camshaft on 1100 Series Engines
equippedwithmax-mingovernor
3 9S-6054 Socket Assembly 3/4indrive Turning injection pump camshaft when set-
ting lifters on D379, D398 and D399 Engines
1
Comeswithinsertforremovingsparkplugs
Timing Pins
Model: 1100, 3100, 3406, 3408, 3412, 3306, 3304 D.I.
Warranty: Six Months
Item Part Number Description Model
1 6V-2112 Pin 1100 and 3100 Series and
3406 Engines
2 6V-6019 Pin 3408 and 3412 Engines
3 6V-4186 Pin - Fuel Pump
Timing
3306 and 3304 D.I. Engines
Not Shown
-- 3P-1544 Pin 328 SMFS
-- 4C-9581 Pin 3408/12 PEEC
Timing Pins
Model: 3054 and 3056 Engines
Warranty: Six Months
• Used to install injection pumps on 3000 Series engines
Part Number Description Use
150-3992 Timing Pin Required to install Bosch injection pumps
150-3993 Timing Pin Required to install Lucas and Stanadyne injection pumps
