Caterpillar Engine Tools Cat Overhaul 3512 Page 224

Operation and Maintenance Manual
2646246
2646350
3-224
Engine Tools
Fuel System Test Tools
Indicator Tools (Continued)
Item
1
Part Number Description Use
Indicator Tools
2 8T-1002 Position Probe (X4) obtain rack measurement speci-
cations
3 5P-4160 Point - Indicator
Contact, 19.05 mm
(0.75 in) long
obtain rack measurement speci-
cations
4 3P-1567 Indicator obtain rack measurement speci-
cations
5 4C-5569 Measurement
Adapter
2
attaches indicator to pump for
rack measurement
6 4C-2982 Indicator Collet as an assembly to measure
plunger lift
7 146-7774 Nylon Screw
3
attaches indicator to pump for
rack measurement
1
Item1:ElectronicPositionIndicator,Use:obtainrackmeasurementspecications
2
Used for FIETS with original coupling
3
UsedforFIETSandAVMwithheavydutycoupling

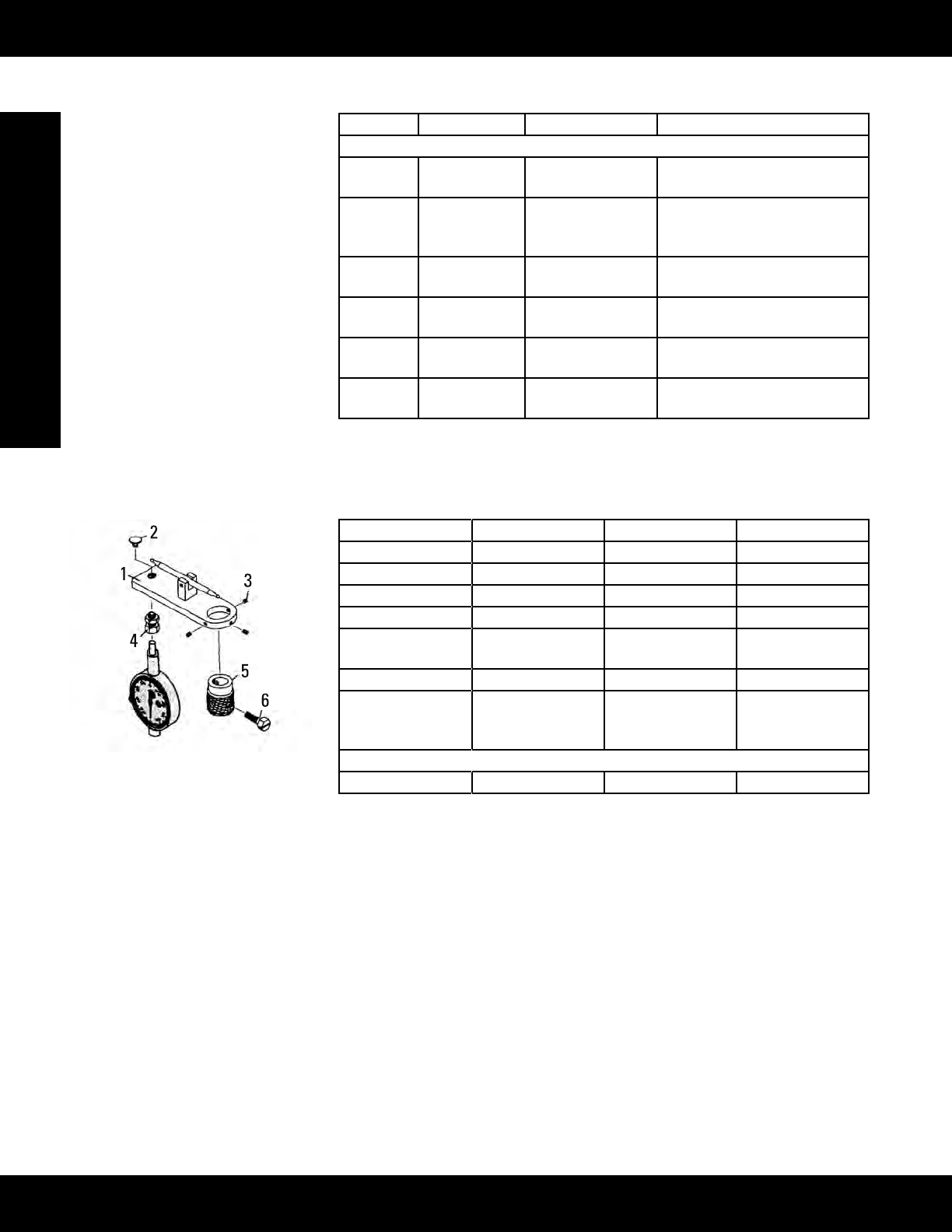

146-7780 Rack Position Bracket Group (not serviced)
Item Part Number Description Qty.
1 146-7777 Arm Assembly
1
--
2 6V-2057 Contact Point 1
3 5B-9324 Set Screw
1
3
4 3P-1565 Collet Clamp --
5 146-7771 Rack Measurement
Adapter
1
--
6 146-7774 Nylon Screw
1
1
-- 146-7780 Rack Position
Bracket Group (not
serviced)
--
Not Shown
-- 6V-2030 Extension
1 2
1
1
UsedforFIETSandAVMwithheavydutycoupling
2
Part of 6V-6042 Indicator Contact Point Group
