Engine Tools

Cooling System

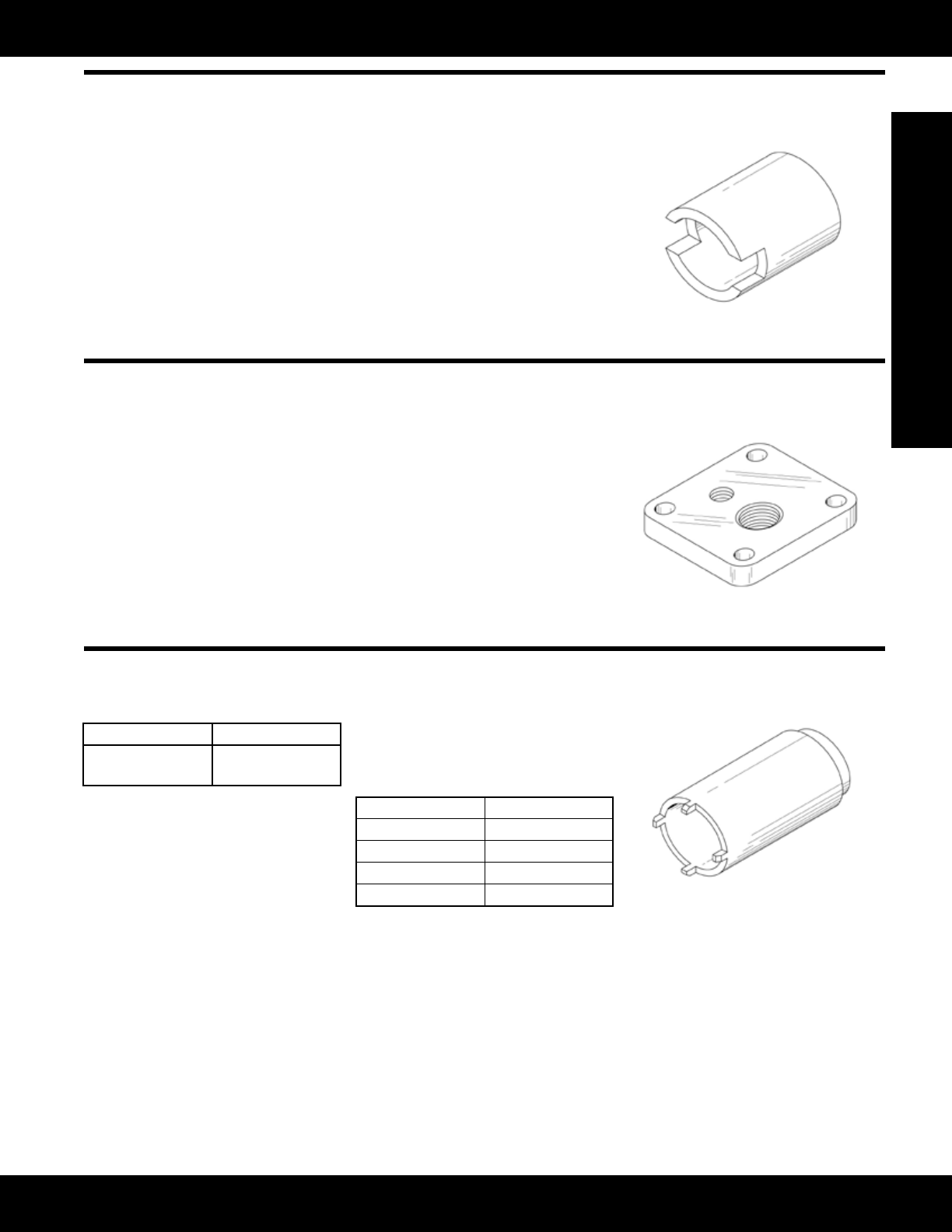

FT0203 Spring Compressor

Model: Multiple Engine Models

Warranty: None

• Water temperature regulators can be disassembled by fabricating a short

length of pipe as illustrated

FT0161 Thermometer Adapter

Model: D8H Engine

Warranty: None

• Used to mount the Thermometer to D8H Engine

243-6532 Spanner Wrench Assembly

Model: C-9 Engines in Timber King Feller Buncher

Warranty: Six Months

• Used to disassemble and assemble

Flexxaire engine fans

• Usedwith1/2inchsquaredrive

ratchet

Squaredrive 1/2 in

Number of teeth 4, equally spaced

Tooth width 6.1 mm (0.24 in)

Inside diameter 64.0 mm (2.5 in)

Outside diameter 76.2 mm (3 in)

Part Number Description

243-6532 Spanner Wrench

Assembly
