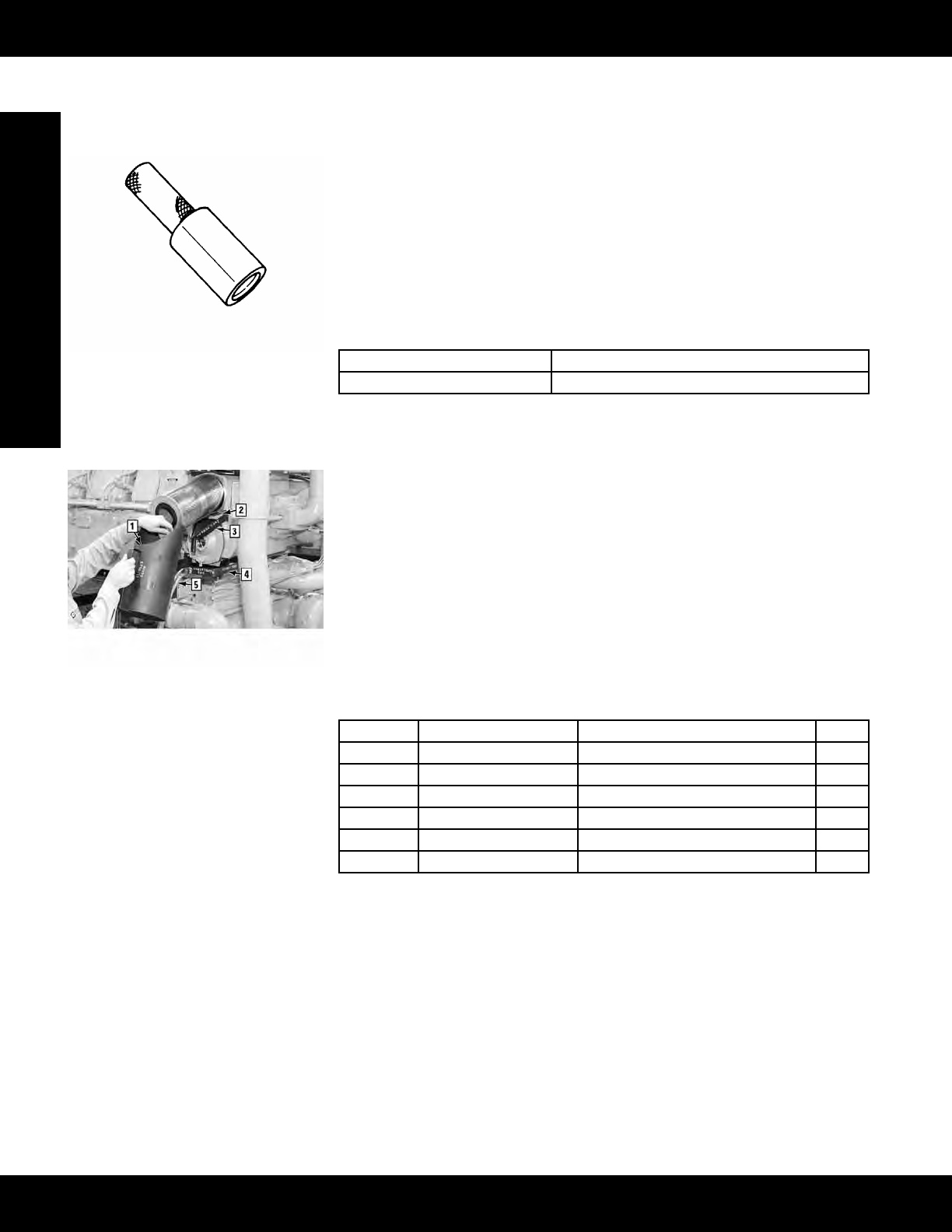

Caterpillar Engine Tools Cat Overhaul 3512 Page 386

Operation and Maintenance Manual
2668359
2668130
3-386
Engine Tools
3600 Engine Tools
9U-5105 Basic Tool Group for Miscellaneous Tools
8T-3034 Water Pump Seal Driver (Part of 9U-5105 Group)
Model: 3600 Engines
Warranty: Six Months
• Used to seat ceramic ring and rubber seat into water pump housing (knurled
handle for better grip)
• Also installs carbon seal onto pump shaft (pressed onto shaft until light contact
with ceramic seal face is made)
• Length: 210.0 mm (8.3 in)
• Seal diameter: 63.0 mm (2.5 in)
References
SENR3594,ServiceManualModuleofSENR3590ServiceManual
SENR3600,ServiceManualModuleofSENR3595ServiceManual
SENR4259,ServiceManualModuleofSENR4255ServiceManual
Part Number Description
8T-3034 WaterPumpSealDriver
1U-9824 Oil Drain Tool Group (Part of 9U-5105 Group)
Model: 3600 Engines
Warranty: Six Months
• Usedtodrainoilfromlterhousing(keepsengineclean,capturesallusedoil,
reduces cleanup cost)
• 9U-9822and9U-9821Trayscatchoil;5N-5566Hoseroutesittoacontainer(trays
attachtolterhousingwithfour9S-8752Nuts)
• 1U-9823Scoopprovidesconvenientwaytocarryusedlterstoadisposalarea
(lterisalsotoohottohandlewithoutscoop)
• Allowslterreplacementwhileengineisrunning
• Draintraysandscoopmadefromheavy-gaugesheetmetal
• Scoop diameter: 203 mm (8.0 in)
References
SENR3594,ServiceManualModuleofSENR3590ServiceManual
SENR3600,ServiceManualModuleofSENR3595ServiceManual
SENR4259,ServiceManualModuleofSENR4255ServiceManual
Item Part Number Description Qty.
1 1U-9823 Filter Scoop Assembly --
2
1
9S-8752 Nut - Full (3/8 - 16) 2
3 1U-9822 Tray Assembly, Upper --
4 1U-9821 Tray Assembly, Lower --
5
1
5N-5566 Hose (not part of 4C-6173) --
-- 1U-9824 Tool Group --
1
Not part of 1U-9824
