Caterpillar Engine Tools Cat Overhaul 3512 Page 342

Operation and Maintenance Manual

Page of 420

/ 420

2598914

2598946

2598972

3-342

Engine Tools

Camshaft and Timing Gear Tools

177-8003 Cam Tool Group (Continued)

Model: 3406E, 3456, C-15, C-16, C27/C32

Warranty: Six Months

Item Part Number Description

1 177-8001 PilotSleeve

2 249-2936 Adapter (C27/C32 front

install)

2 177-8002 Adapter (3406, C-15, C-16,

C27/C32 rear install)

Item Part Number Description

3 1F-7958 Full Nut (1/2 - 13) (fork

mounting hardware)

4 5P-8245 Hard Washer

5 3D-0472 Taperlock Stud

-- 177-8003 Cam Tool Group

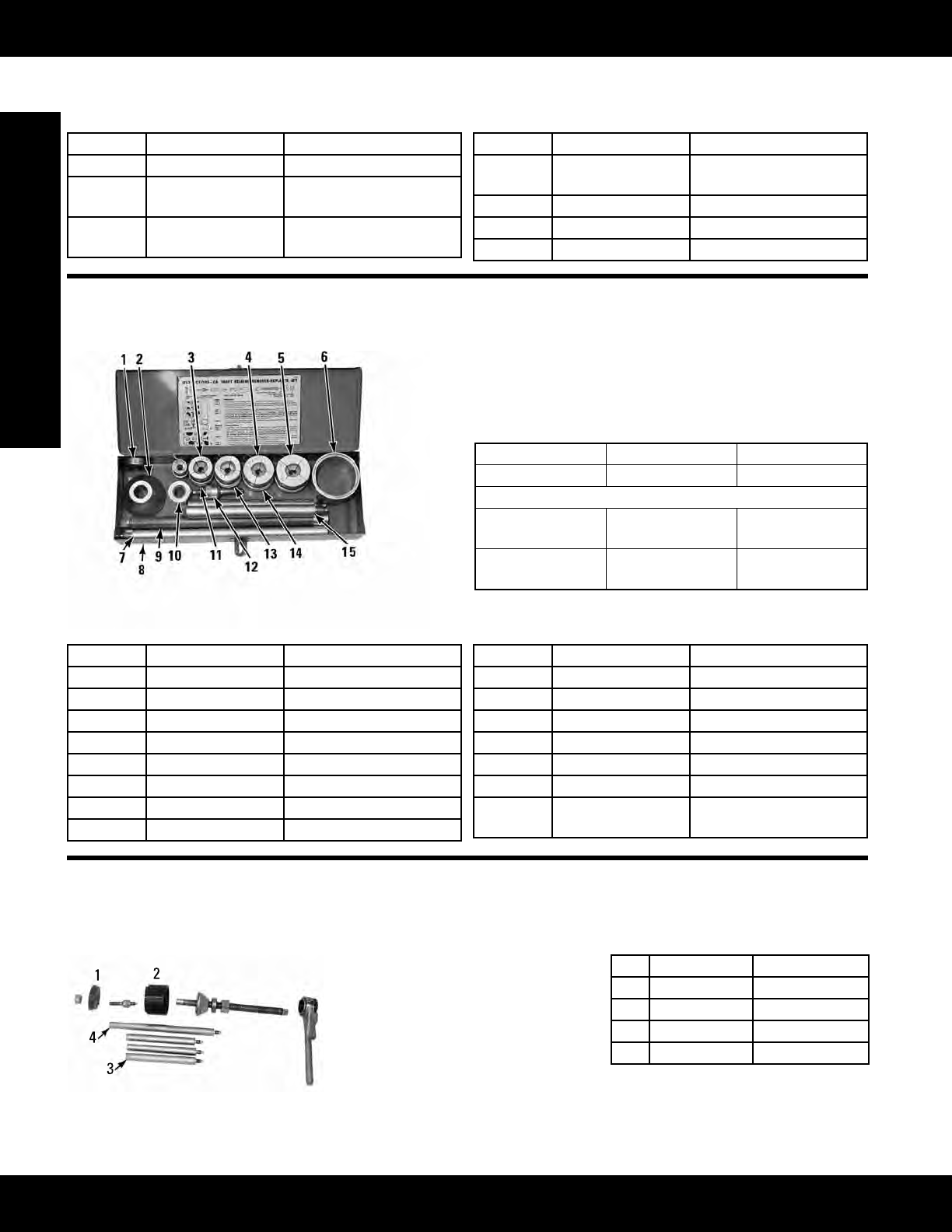

8S-2241 Camshaft Bearing Installation and Removal Group

Model: Cat

Engines

Warranty: Six Months

• Usedtoremoveandinstallcamshaftbearingsinmost

Cat

Engines

• Each collet designed to handle bearing diameter range

listedinchart;replacementO-ringsealsusedtoretain

collets also listed

Item Description

13 Backup Nut

ColletAssemblySpecications

Collet Inner Diameter Size

Range

Replacement O-

Ring Seals

8S-8285 60.33 - 69.85 mm

(2.375 - 2.750 in)

4J-0524

Item Part Number Description

1.0 8S-8287 Thrust Bearing Assembly

2.0 8S-8288 Cone

3.0 8S-8282 Collet Assembly

4.0 8S-8284 Collet Assembly

5.0 8S-8285 Collet Assembly

6.0 8S-8289 Tube

7.0 8S-8293 Long Extension

8.0 8S-8281 Tool Box

Item Part Number Description

9.0 8S-8291 Threaded Shaft

10.0 8S-8290 Nut

11.0 8S-8884 Backup Nut

12.0 8S-8286 Screw Expander

14.0 8S-8882 Backup Nut

15.0 8S-8292 Short Extension

-- 8S-2241 Camshaft Bearing Installa-

tionandRemovalGroup

5P-1666 Puller Plate

5P-1667 Spacer Tube

Model: D379B, D398B, D399, 657E

Warranty: Six Months

• Used with 8S-2241 Group for cam-

shaftbearingremovalandinstal-

lation on 6.25 inch bore V Engines

(two 8S-8292 Short Extensions

and one 8S-8293 Long Extension

required from 8S-2241 Group)

Item Part Number Description

1 5P-1666 Puller Plate

2 5P-1667 Spacer Tube

3 8S-8292 Short Extension

4 8S-8293 Long Extension
