Engine Tools

Cooling System

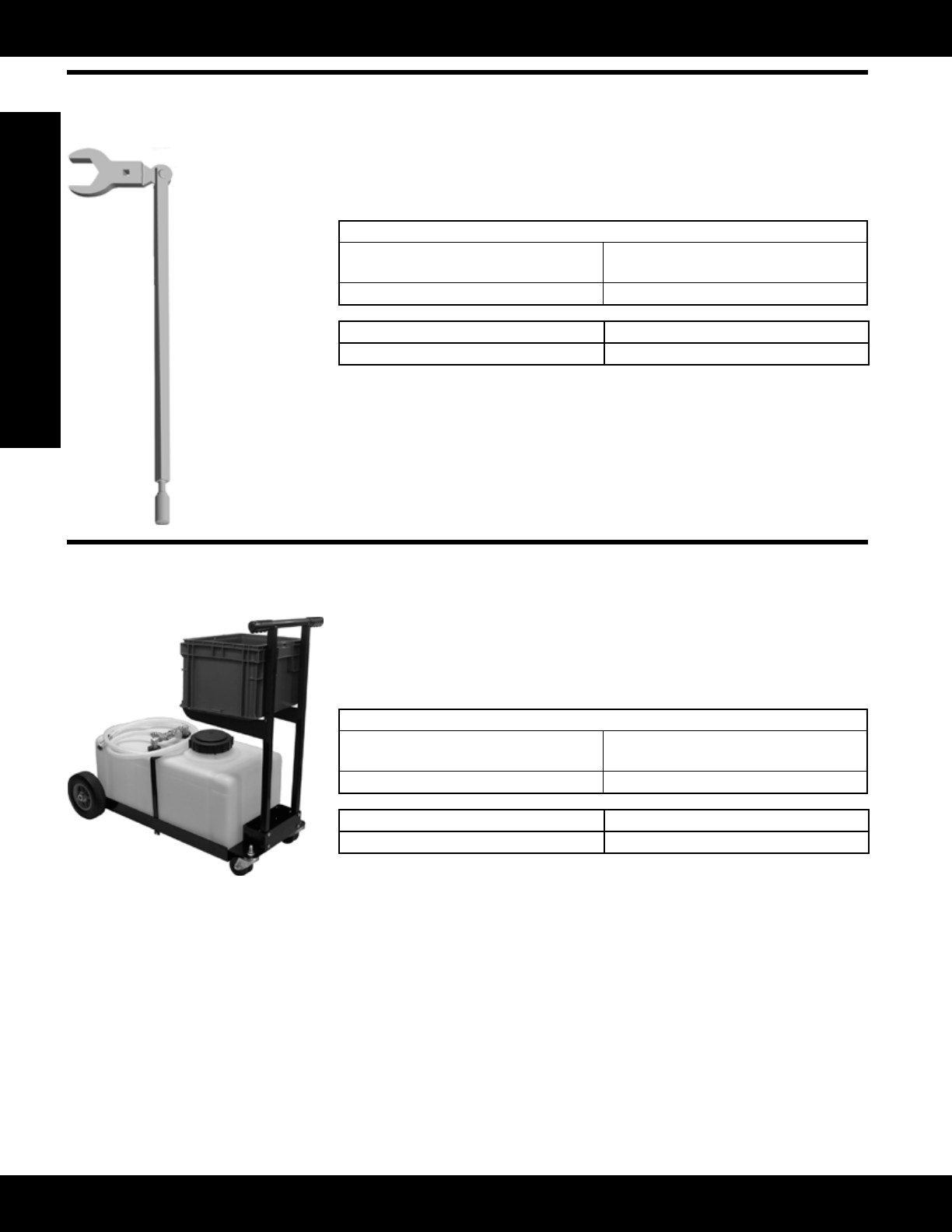

379-9007 Fan Clutch Wrench

Model Usage: CT660 Truck

Warranty: Manufacturer’s

• UsedtoeasilyremovefanhubnutonCT660engines

• Force can be applied using air hammer or by hand using included attachment

and standard hammer or mallet

• Fanclutchwrenchcanbeusedwith1/2”drivetorquewrenchtoreinstallnut

Specications

Dimensions 101.6 x 101.6 x 863.6 mm (4.0 x 4.0 x 34.0

in)

Weight 3.6 kg (7.9 lb)

Part Number Description

379-9007 379-9007 Fan Clutch Wrench

372-5254 Coolant Management Tool

Model Usage: CT660 Truck

Warranty: Manufacturer’s

• Equipped with two unique adapters that use standard shop air to create regu-

latedpressureandapowerfulvacuum

• Regulated pressure quickly empties entire system

• Singleclosurevalveallowsforpressuretest

• Vacuum eliminates possibility of air pockets forming in the EGR cooler

Specications

Dimensions 439.4 x 528.3 x 1252.2 mm (17.3 x 20.8 x

49.3 in)

Weight 33.1 kg (73 lb)

Part Number Description

372-5254 Coolant Management Tool
